INSTALLATION AND SETUP

Your console can pair up with one wireless 7-in-1 outdoor sensor and up to 7 wireless indoor
sensors. (1pc wireless indoor sensor included)

INSTALL WIRELESS 7-IN-1 SENSOR

Your wireless 7-IN-1 sensor measures wind-speed, wind-direction, rainfall, UV, light intensity,
temperature and humidity for you. It's assembled and calibrated for your easy installation.

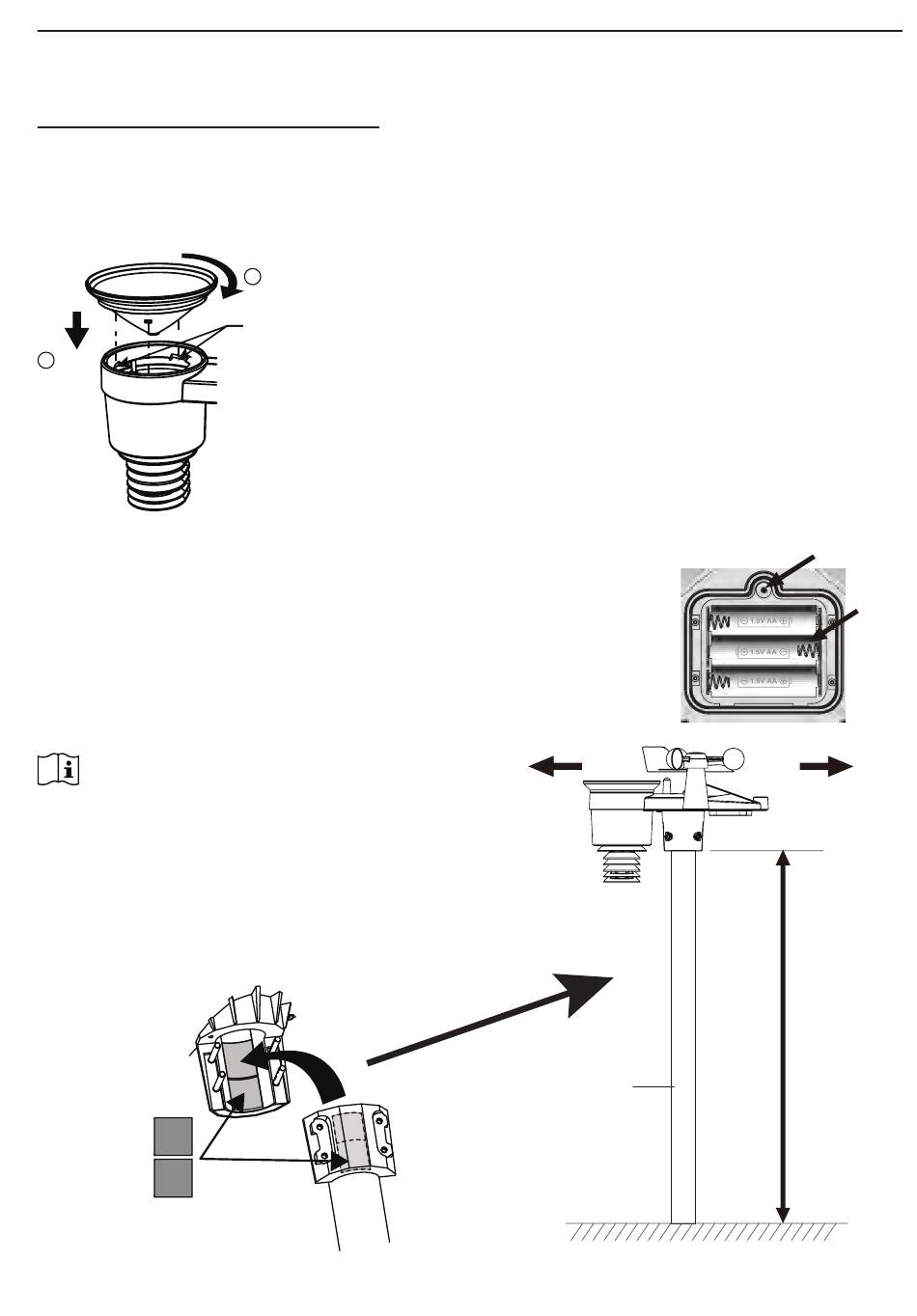

INSTALL RAIN COLLECTOR
Rain Collector Installation
1 Align
INSTALL BATTERIES
Unscrew the battery door at bottom of unit and insert the batteries
according to the +/- polarity indicated. Screw the battery door
compartment on tightly.
NOTE:
The red LED will begin flashing every 12 seconds.
MOUNTING POLE AND DIRECTION ALIGNMENT
Install the wireless 7-IN-1 sensor in an open
location with no obstructions above and around the
sensor for accurate rain and wind measurement.
Install the sensor with the smaller end facing the
North to properly orient the wind direction vane.
Secure the mounting stand and bracket (included)
to a 35 ~ 40mm diameter steel post or pole, and
allow minimum 2m off the ground.
Add rubber
pad before
mounting on
pole or post
2 Lock
Lock grooves
Point to
NORTH
mounting pole
and stand not
included
4
Screw
location
3 x AA
batteries
Point to
SOUTH
2 meter
off the
ground
