INSTALLATION AND SETUP

Your console can pair up with one wireless 5-In-1 outdoor sensor and up to 7 wireless thermo-
hygro sensors . (1pc wireless thermo-hygro sensor included)

INSTALL WIRELESS 5-IN-1 SENSOR

Your wireless 5-In-1 sensor measures wind-speed, wind-direction, rainfall, temperature and
humidity for you . It's assembled and calibrated for your easy installation .

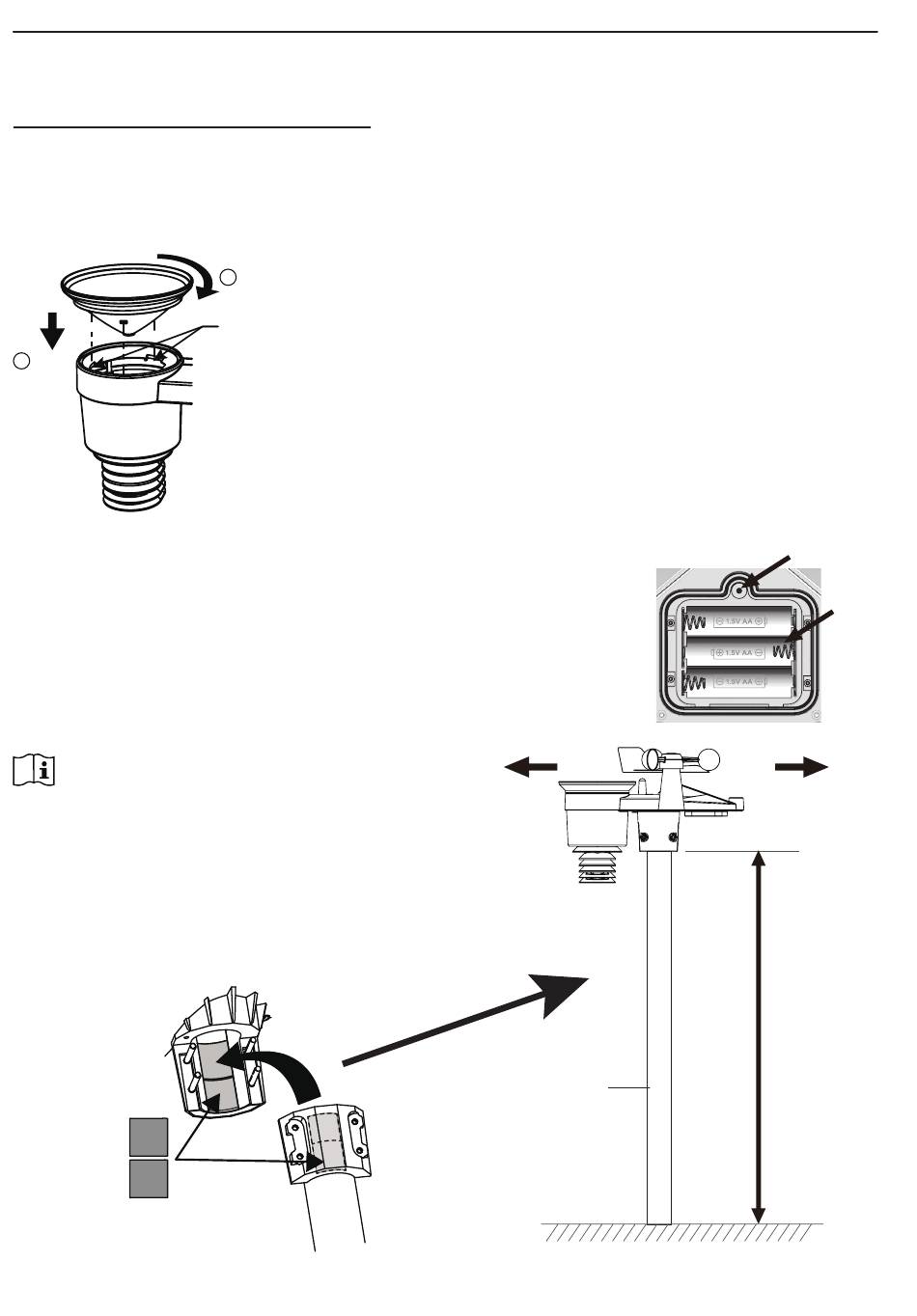

INSTALL RAIN COLLECTOR
Rain Collector Installation
1 Align
INSTALL BATTERIES
Unscrew the battery door at bottom of unit and insert the batteries
according to the +/- polarity indicated . Screw the battery door
compartment on tightly .
NOTE:
The red LED will begin flashing every 12 seconds.
MOUNTING POLE AND DIRECTION ALIGNMENT
Install the wireless 5-In-1 sensor in an open
location with no obstructions above and around the
sensor for accurate rain and wind measurement .
Install the sensor with the smaller end facing the
North to properly orient the wind direction vane .
Secure the mounting stand and bracket (included)
to a 35 ~ 40mm diameter steel post or pole, and
allow minimum 2m off the ground.
Add rubber
pad before
mounting on
pole or post
2 Lock
Lock grooves
Point to
NORTH
mounting pole
and stand not
included
4
Screw
location
3 x AA
batteries
Point to
SOUTH
2 meter
off the
ground
