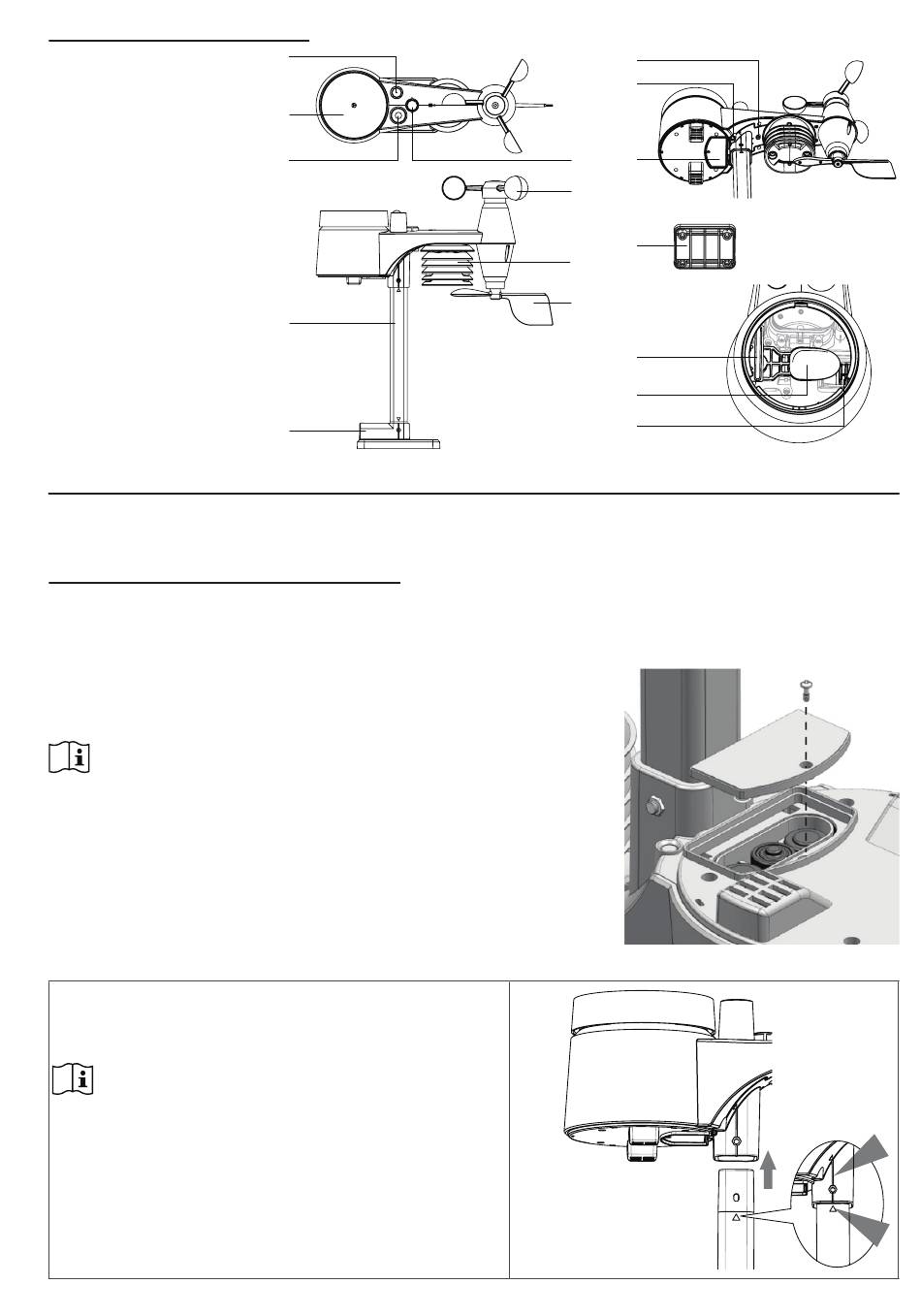

WIRELESS 7-IN-1 SENSOR

1 . Antenna
2 . Rain collector
3 . UVI / light sensor
4 . Mounting pole
5 . Mounting base
6 . Balance indicator
7 . Wind vane
8 . Radiation shield
9 . Mounting clamp
10 . Red LED indicator
11 . [ RESET ] key
12 . Battery door
13 . Mounting clamp
14 . Rain sensor
15 . Tipping bucket
16 . Drain holes

INSTALLATION AND SETUP

Your console can pair up with one wireless 7-in-1 wireless sensor and up to 7 wireless indoor sensors .
(Optional)

INSTALL WIRELESS 7-IN-1 SENSOR

Your wireless 7-IN-1 sensor measures wind speed, wind direction, rainfall, UV index, light intensity,
temperature and humidity for you . It's fully assembled and calibrated for your easy installation .
BATTERY AND INSTALLATION
Unscrew the battery door at bottom of unit and insert the
batteries according to the +/- polarity indicated .
Screw the battery door compartment on tightly .
NOTE:
- Ensure the water tight O-ring is properly aligned in place to
ensure water resistant .
- The red LED will begin flashing every 12 seconds.
ASSEMBLY THE STAND AND POLE
Step 1
Insert the top side of the pole to the square hole of the
weather sensor .
NOTE:
Ensure the pole and sensor's indicator align .
1
2
3
4
5
10
11
6 12
7
13
8
9
14
15
16
3
