R0E55630EDMB00
Debugging MCU Board for 144-pin 0.5mm-pitch LQFP
of the RX630 Group
1. Overview
This product is for MCUs of the RX630 group in the PLQP0144KA-A package.
With the E20 emulator, the emulator occupies some user port pins for controlling the emulator and output of trace
information. These user port pins must be connected with a 38-pin connector installed on the user system.
With the debugging MCU board, however, all user port pins are available for the user system. In addition, you do not
need to install a 38-pin connector on the user system.

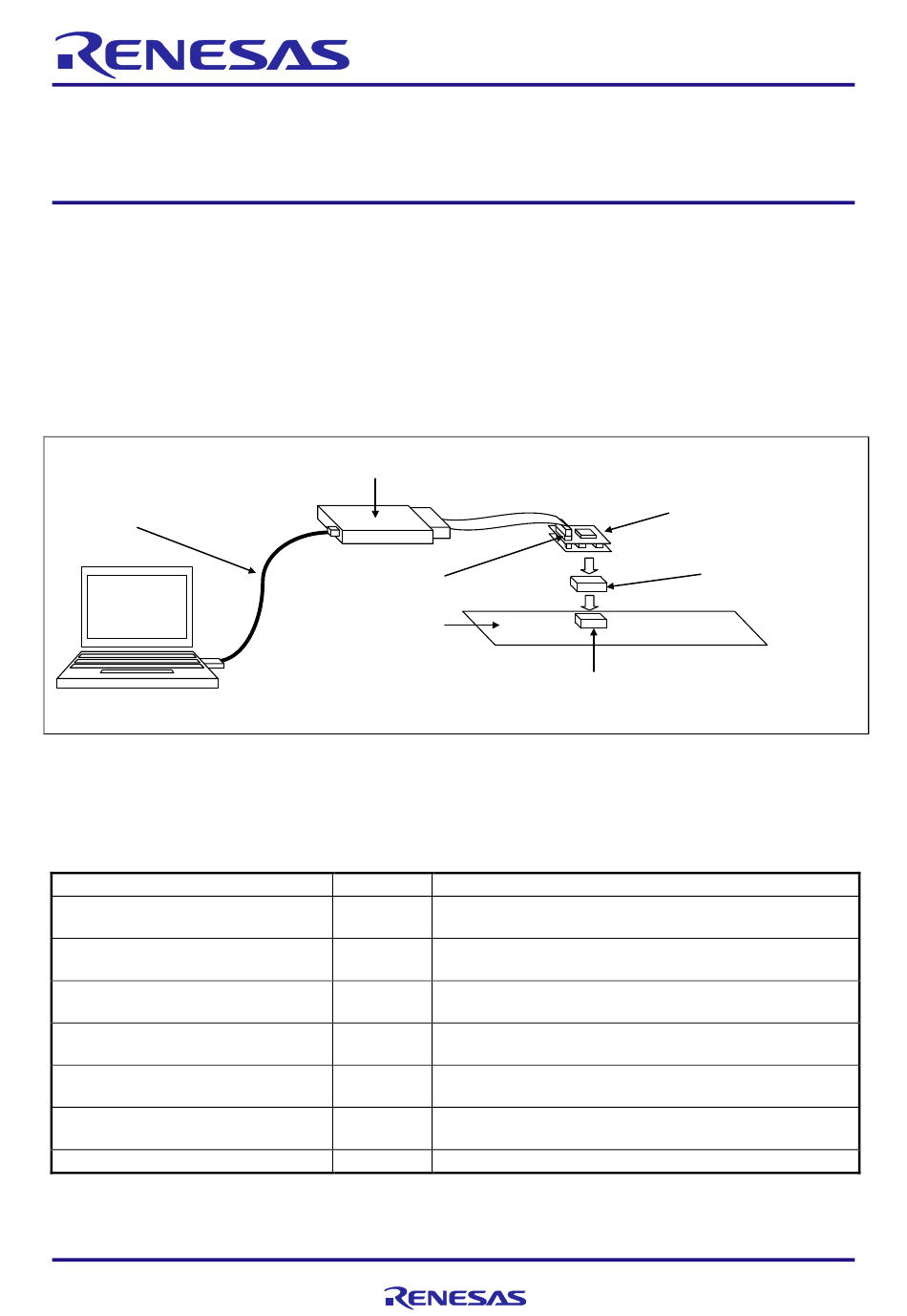

Figure 1 shows the configuration of a system that includes the debugging MCU board and the E20.
Be sure to read section 7, Notes on Usage, before using the debugging MCU board.
USB interface cable
Host computer
Figure 1
System Configuration
2. Components
Table 1 lists the components of the debugging MCU board. Check that you have all of the components when you
unpack the box.
Table 1
Components of the Debugging MCU Board
Component
Debugging MCU board common part
(R0E55630EVKZ00)
Converter board (R0E55630EPFK00)
YQPACK144SD
(from Tokyo Eletech Corporation)
NQPACK144SD-ND
(from Tokyo Eletech Corporation)
YQ-GUIDE-S1
(from Tokyo Eletech Corporation)
Cautions in handling
User's Manual (English and Japanese)
Note: NQPACK, YQPACK, YQSOCKET, YQ-GUIDE, HQPACK, TQPACK, TQSOCKET, CSSOCKET,
CSPLUG/W, and LSPACK are trademarks of Tokyo Eletech Corporation.
R20UT0583EJ0200 Rev.2.00
Mar 05, 2014
E20 emulator
38-pin connector
User system
Quantity
Remarks
1
For the dimensions, refer to section 6, Dimensions of the
Debugging MCU Board.
1
For the dimensions, refer to section 6, Dimensions of the
Debugging MCU Board.
1
Connector to be placed between the debugging MCU board
and the NQPACK.
1
IC socket for mounting on the user system
4
Screws for fastening the YQPACK to the NQPACK.
1
Cautions when handling the products of Tokyo Eletech
Corporation
1 for each
This manual (English)
NQPACK
(provided with this product)
User's Manual
R20UT0583EJ0200
Rev.2.00
Mar 05, 2014
Debugging MCU board
(this product)
YQPACK
(provided with this
product)
Page 1 of 8
Advertisement
Table of Contents
Related Manuals for Renesas R0E55630EDMB00
Summary of Contents for Renesas R0E55630EDMB00
- Page 1 User's Manual R20UT0583EJ0200 R0E55630EDMB00 Rev.2.00 Mar 05, 2014 Debugging MCU Board for 144-pin 0.5mm-pitch LQFP of the RX630 Group 1. Overview This product is for MCUs of the RX630 group in the PLQP0144KA-A package. With the E20 emulator, the emulator occupies some user port pins for controlling the emulator and output of trace information.
- Page 2 (including all accessories) is not intended for household use. After use the equipment cannot be disposed of as household waste, and the WEEE must be treated, recycled and disposed of in an environmentally sound manner. Renesas Electronics Europe GmbH can take back end of life equipment, register for this service at “http://www.renesas.eu/weee”.
- Page 3 R0E55630EDMB00 User's Manual 3. Specifications Table 2 shows the functional specifications of the debugging MCU board. Table 2 Specifications of the Debugging MCU Board Item No. Item Specification MCU for use • RX630-group MCUs in PLQP0144KA-A packages The MCU type name •R5F5630EDDFC...
- Page 4 5. Mount an MCU with on-chip flash memory and the HQPACK144SD (not included) in order on the NQPACK144SD-ND on the user system. Before using the R0E55630EDMB00, be sure to read section 7, Notes on Usage. WARNING Warnings to Be Taken for Connection: •...
- Page 5 R0E55630EDMB00 User's Manual 6. Dimensions of the Debugging MCU Board Figures 4 shows the dimensions and reference pad pattern of the debugging MCU board (R0E55630EDMB00). 50.00 0.50x35=17.50 VREFH0 AVCC0 VREFH VBATT VCC_USB 0.25 0.50 POWER 19.00 23.00 10.50 10.50 Unit[mm] 25.00...
- Page 6 • The output of the reset circuit of the user system must be open collector. Note on the Flash Programming Software Products (Flash Development Toolkit, Renesas Flash Programmer, etc.): • Do not use the flash programming software products when using the debugging MCU board.
- Page 7 Other pieces of equipment connected to the product d) Fire, earthquakes, thunderbolts, floods, or other natural disasters or abnormal voltages, etc. e) Modifications, repairs, adjustments, or other acts made to the product by other than Renesas Electronics Corporation. In the above cases, contact your local distributor.
- Page 8 10. It is the responsibility of the buyer or distributor of Renesas Electronics products, who distributes, disposes of, or otherwise places the product with a third party, to notify such third party in advance of the contents and conditions set forth in this document, Renesas Electronics assumes no responsibility for any losses incurred by you or third parties as a result of unauthorized use of Renesas Electronics products.
