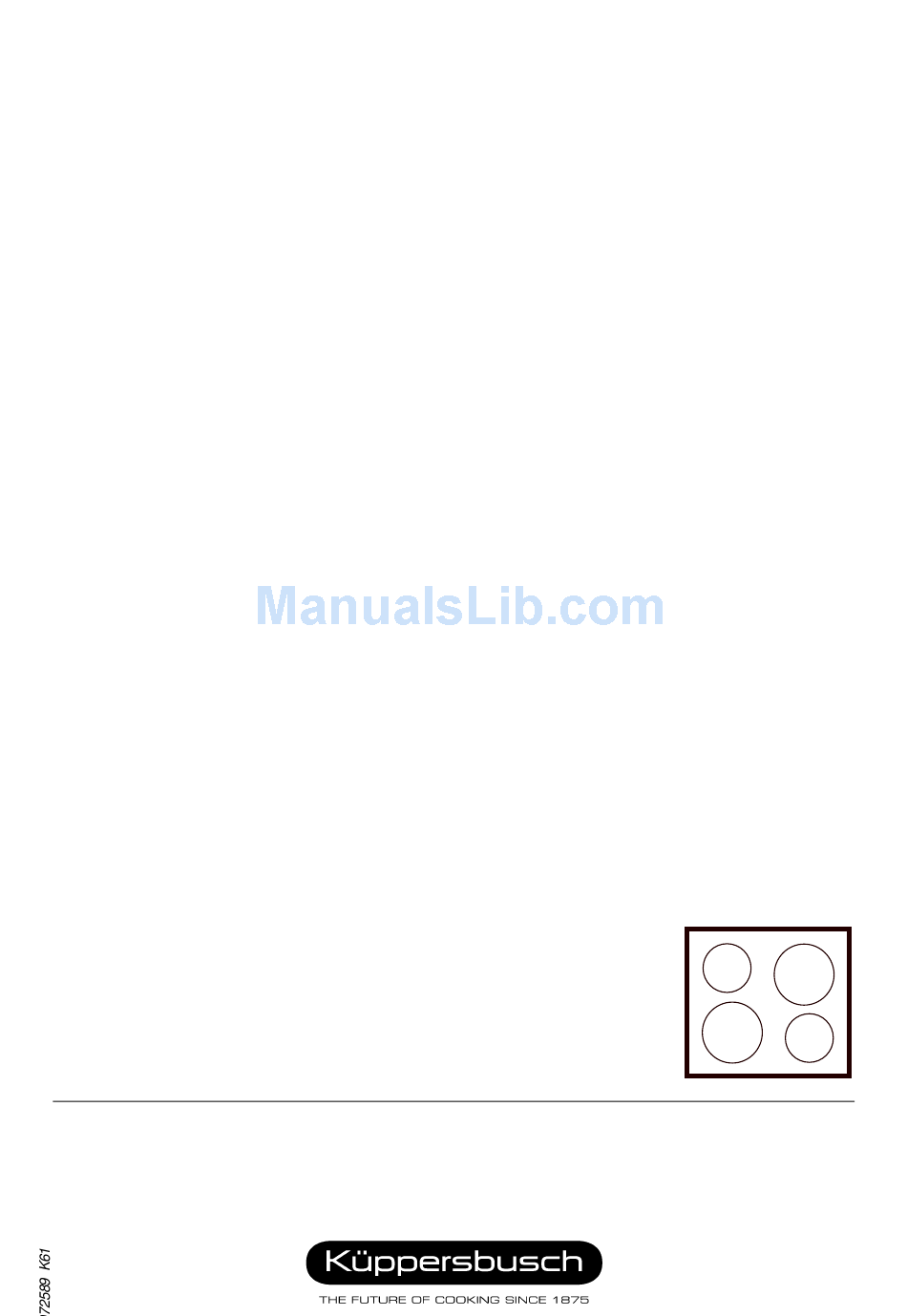

- Page 1 User’s guide EKWE / EKWH...
- Page 2 Warranty This warranty is extended to the original purchaser and succeeding owners for products purchased for ordinary home use. It does not cover its use in a commercial situation. Should the appliance be sold by the original purchaser during the warranty period, the new owner will continue to be protected until the expiration date of the original purchaser’s warranty period.
-
Page 3: Table Of Contents
Contents Users Guide - EKWE/EKWH - USA Safety instructions ... 4 An overview of your honeycomb cooktop ... 5 Before using the appliance for the first time ... 5 Using the cooking zones ... 6 Switching the honeycomb cooktop on The cooking levels Automatic boost function Residual heat indicators... -
Page 4: Safety Instructions
• CAUTION! Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed utensils can be used on the range-top without breaking, due to the sudden change in temperature. Follow the manufacturer's instructions! • Do not place non-food items on the cooking surface when it's hot. -
Page 5: An Overview Of Your Honeycomb Cooktop

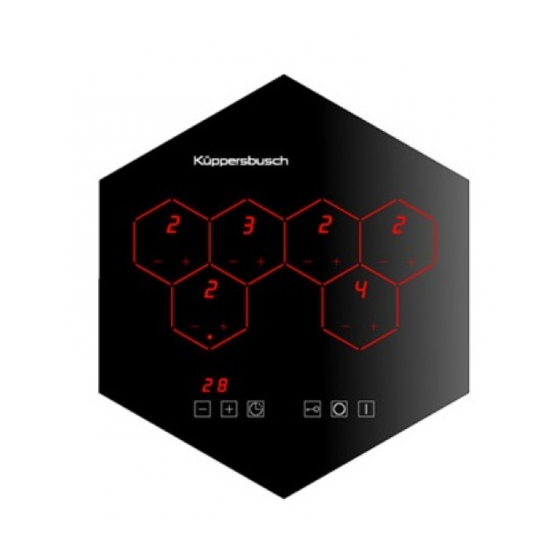

An overview of your honeycomb cooktop Before using the appliance for the first time Users Guide - EKWE/EKWH - USA Cooking zones Control honeycomb The honeycomb cooktop is equipped with an easy-to-operate sensor control system which is operated via the control honeycomb. The layout of the cooking zones is shown in the control honeycomb. -
Page 6: Using The Cooking Zones
Using the cooking zones Switching the honeycomb cooktop on The cooking levels Please note the safety instructions! Subsequent to initial connection and after a power failure “ briefly in the LED displays. Rotating, circling symbols will then be indicated. This means that various sensors have been checked automatically and that the touch sensitivity has also been newly set. -
Page 7: Automatic Boost Function
Automatic boost function Users Guide - EKWE/EKWH - USA If you touch the plus key, the cooking zone starts at setting 5, without an automatic boost. If you touch the minus key, the cooking zone starts at setting 9. In this case the automatic boost function is automatically activated too. Switching off the cooking zone: press the plus sensor and the minus sensor simultaneously. -
Page 8: Residual Heat Indicators
Residual heat indicators Dual-circuit cooking zones Then set it at the required cooking level. An “A” will flash in the display in alternation with the cooking level set. As long as the cooking zone is still hot an “H” will appear in the display when the cooking zone has been switched off. -
Page 9: The Pan-On Detection
The pan-on detection Switching off the pan-on detection The automatic pan size detection for dual-circuit cooking zones Users Guide - EKWE/EKWH - USA All of the cooking zones have a pan-on detection and the dual-circuit zone also has a pan size detection. The pan-on detection will recognize pans made of metal. -
Page 10: The Emergency Switch
The emergency switch Minute minder and switch-off function Adjusting the minute minder Setting the switch-off function for a cooking zone All of the cooking zones can be switched off quickly with the ON/OFF sensor. The minute minder operates as a switch-off and as a reminder for a maximum of 99 minutes. -
Page 11: Childproof Lock (Sensor Lock)
Childproof lock (sensor lock) simultaneously, after max. 2 sec. Time limit function (holiday function) Users Guide - EKWE/EKWH - USA The childproof lock can be used to protect the appliance against unauthorized use. The cooktop must be switched on. Activating the childproof lock: –... -
Page 12: Other Functions
• The cooktop is switched off if the electronics become overheated. All 4 LED displays flash and a cyclical signal sounds. CAUTION! Only certain types of glass, glass/ceramic, ceramic, earthenware, or other glazed cookware are suitable for range-top service without breaking due to the sudden change in temperature. Follow the manufacturer's instructions! Only pots and pans made of metal can be used with the pan recognition function. -
Page 13: Cleaning And Care
Cleaning and care Do not use any Please note the information for the cleaning scraper Cleaning the cooking surface Remove caking Care of the cooking surface Users Guide - EKWE/EKWH - USA Sugar and food containing sugar (i.e. marmalade) and melted plastic must immediately be removed from the hot cooking surface with the cleaning scraper. -
Page 14: What To Do If Trouble Occurs
What to do if trouble occurs... Problem Circling symbol lines in LED displays. Horizontal lines in the displays running from top to bottom. Not possible to switch off the cooktop. LED display for cooking settings and heat display does not come on or only partially. Cooking zone does not heat up. -
Page 15: After Sales Service
After Sales Service Users Guide - EKWE/EKWH - USA In the event of a problem that you can’t easily fix yourself, or for spare part service, please contact the Küppersbusch Customer Care line at Always have the information from the identification panel handy when calling Customer Service. - Page 16 ÜPPERSBUSCH 4920 West Cypress Street, Tampa, Florida 33607 Telephone: 813-288-8890 Fax: 813-288-8604 Customer Care line: 1 - 800 - 459 - 0844 www.kuppersbuschusa.com TEKA USA, I ÜPPERSBUSCH IS A BRAND OF...
