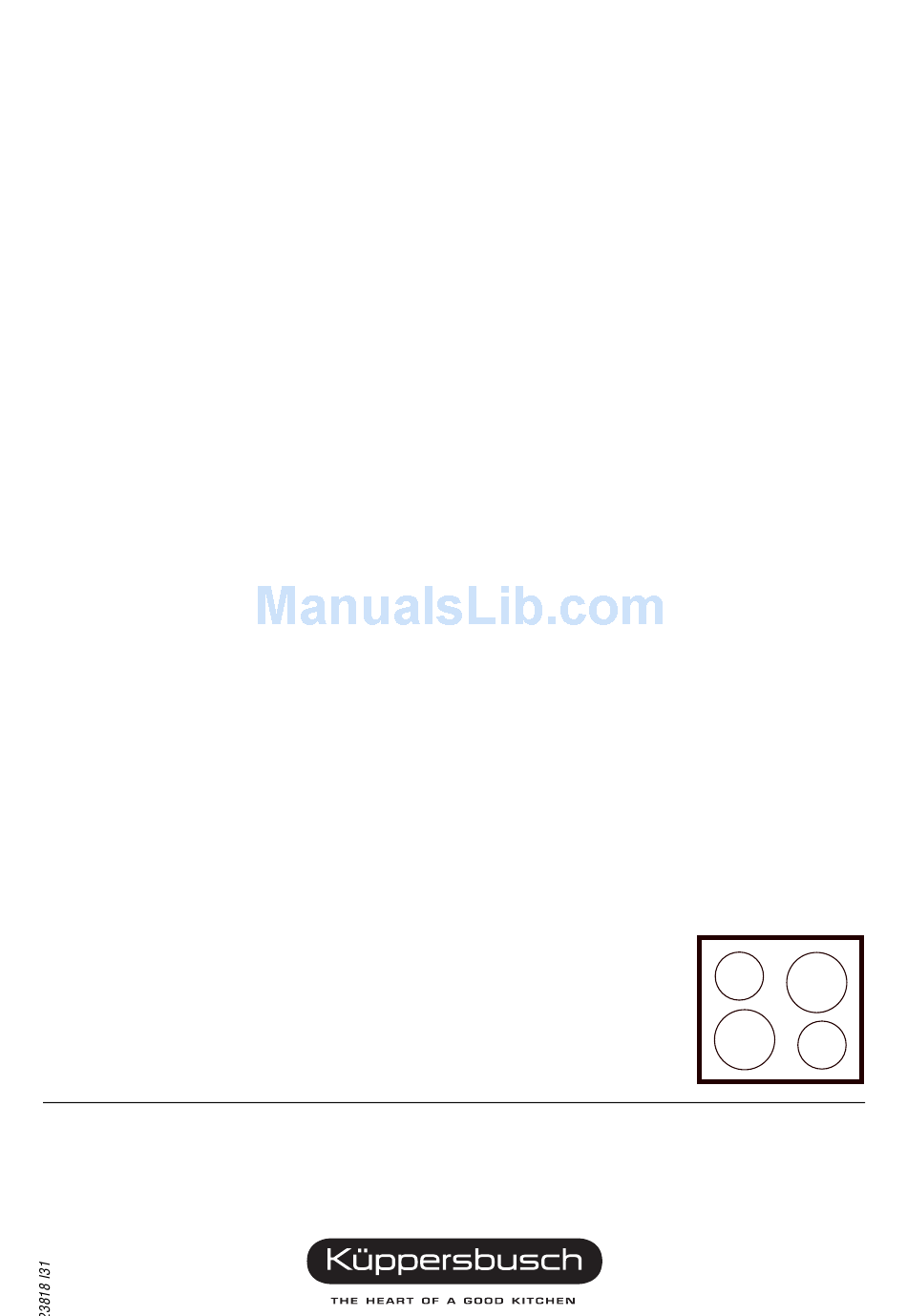

Page 1: Installation Instructions
Installation instructions Important - Save for the local electrical inspector’s use. EKS 304.1/604.2/804.2... - Page 2 For your information... Be sure to read the information in this manual carefully before you install the cook top. Please keep this manual in a safe place and pass it on to future owners for their information and safety. The following symbols are used in this operating manual: The warning triangle will alert you about possible health risks or things that can cause potential damage to your appliance.
-
Page 3: Safety Instructions
To eliminate the risk of burns or fire by reaching over heated surface units, do not locate cabinet storage space labove the surface units. If cabinet storage must be provided, the risk can be reduced by installing a range hood that projects horizontally a minimum of 5 inches beyond the bottom of the cabinets. -
Page 4: Installation Dimensions
Installation dimensions EKS USA... - Page 5 113 mm * The gap between the countertop and the front panel is not necessary for the model EKS 304.1. Locate the opening for cook top ventilation directly below the countertop. It will be less visible there than between the oven and the front panel.
- Page 6 Connection to a conduit-box (not supplied accessory!) Total rating EKS 304.1 2.9 kW, fuse current: 15 A EKS 604.2 7.2 kW, fuse current: 30 A EKS 804.1 8.4 kW, fuse current: 40 A Electrical connection 240 V, 60 Hz When installing stone countertops, the cooking surface can't be fastened with clips.
- Page 7 Special case: Installation in a stone countertop If the countertop is made of marble, granite or other similar materials, the cooking surface has to be fixed from the bottom. Clips are not needed. – Unscrew the screws out of the bottom of the cooking surface as seen below. –...
- Page 8 ÜPPERSBUSCH 112 N. East Street, Suite C Tampa, Florida 33602 Telephone: 813-229-7096 Fax: 813-229-0982 Customer Care line: 1 - 800 - 459 - 0844 www.kuppersbuschusa.com is a brand of Teka USA, Inc. ÜPPERSBUSCH...
