USER GUIDE AND SPECIFICATIONS

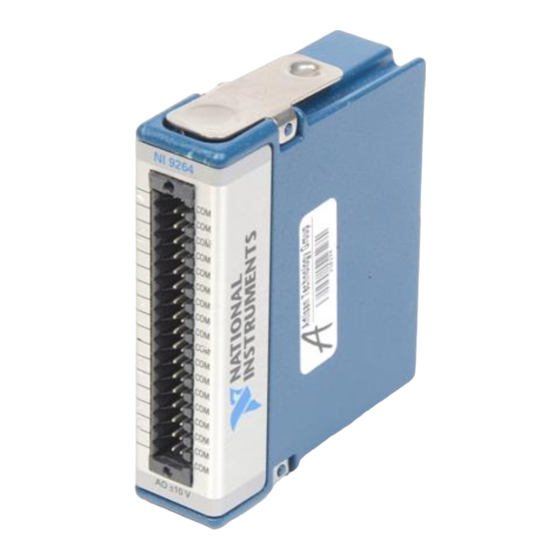

NI USB-9264
16-Channel, ±10 V, 16-Bit Analog Voltage Output Module
Introduction
This user guide describes how to use the National Instruments USB-9264
and lists the device specifications.

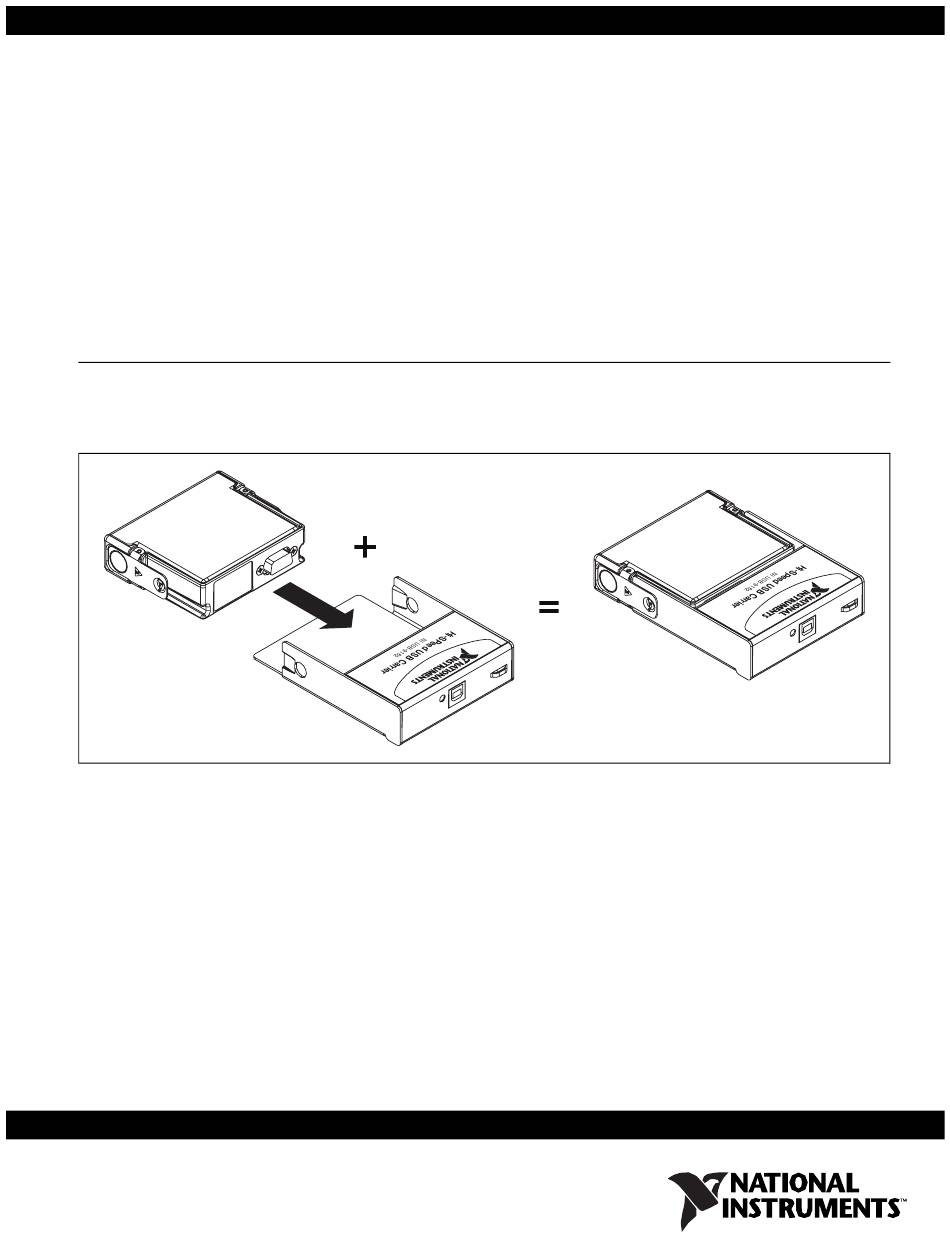

The NI USB-9264 consists of two components: an NI 9264 module and an
NI USB-9162 carrier, as shown in Figure 1.
NI 9264
NI USB-9162
Figure 1. NI USB-9264 Components
NI USB-9264
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for National Instruments NI USB-9264
Summary of Contents for National Instruments NI USB-9264
- Page 1 This user guide describes how to use the National Instruments USB-9264 and lists the device specifications. Introduction The NI USB-9264 consists of two components: an NI 9264 module and an NI USB-9162 carrier, as shown in Figure 1. NI 9264...
-
Page 2: Safety Guidelines For Hazardous Voltages
(0.998 in.) Figure 2. NI USB-9264 Device Dimensions in Millimeters (Inches) Safety Guidelines Operate the NI USB-9264 only as described in this user guide. Hot Surface This icon denotes that the component may be hot. Touching this component may result in bodily injury. -
Page 3: Related Documentation
Table for a list of locations for driver and application software documentation. The following document location references assume you have NI-DAQmx 8.9 or later, and where applicable, version 7.1 or later of the NI application software. © National Instruments Corporation NI USB-9264 User Guide and Specifications... - Page 4 LV_Getting_Started.pdf control application. LabVIEW Help—provides Help»Search the LabVIEW information about LabVIEW Help programming concepts, step-by-step instructions for using LabVIEW, and reference information about LabVIEW VIs, functions, palettes, menus, and tools. NI USB-9264 User Guide and Specifications ni.com...
- Page 5 ANSI C without NI-DAQmx Help Start»All Programs» NI Application Software National Instruments» NI-DAQ»NI-DAQmx Help NI-DAQmx C Reference Start»All Programs» Help—describes the National Instruments» NI-DAQmx Library functions. NI-DAQ»NI-DAQmx C Reference Help © National Instruments Corporation NI USB-9264 User Guide and Specifications...
-
Page 6: Device Documentation And Specifications
If you need more help getting started developing an application with NI products, NI offers training courses. To enroll in a course or obtain a detailed course outline, refer to ni.com/training Technical Support on the Web For additional support, refer to ni.com/support zone.ni.com NI USB-9264 User Guide and Specifications ni.com... -
Page 7: Installing The Software
Installing the Software Software support for the NI USB-9264 for Windows Vista/XP is provided by NI-DAQmx. The DAQ Getting Started Guide, which you can download , offers NI-DAQmx users step-by-step instructions ni.com/manuals for installing software and hardware, configuring channels and tasks, and getting started developing an application. - Page 8 NI USB-9162 carrier. Press firmly on the connector side of the NI 9264 module until the latches lock the module into place, as shown in Figure 6. Figure 6. Locking Module into Place NI USB-9264 User Guide and Specifications ni.com...
-
Page 9: Led Indicator
Connecting the NI USB-9264 to a Computer Plug one end of the USB cable into the NI USB-9264 and the other end into an available USB port on the computer. Refer to the NI-DAQmx for USB Devices Getting Started Guide that shipped with your device, and is also accessible from Start»All Programs»National Instruments»NI-DAQ,... - Page 10 AO15 Figure 7. NI USB-9264 Terminal Assignments Each channel of the NI USB-9264 has a terminal to which you can connect the positive lead of a load. Each channel also has a common terminal, COM, and there are four additional COM terminals at the bottom of the connector.
- Page 11 Each channel also has overvoltage and short-circuit protection. Refer to the Specifications section for more information about overvoltage and short-circuit protection. Refer to Figure 9 for an illustration of the output circuitry for one channel of the NI USB-9264. Overvoltage/ Isolated Short-Circuit Protection NI USB-9264 Figure 9.
-
Page 12: Wiring For High-Vibration Applications
Wiring for High-Vibration Applications If an application is subject to high vibration, National Instruments recommends that you use the NI 9940 backshell kit to protect the connections. Refer to Figure 3 for an illustration of the NI 9940 connector backshell. -
Page 13: Power Requirements
Monotonicity.......... 16 bits DNL ............+1 LSB max INL (endpoint) ........±12 LSBs max Power Requirements Current consumption from USB .... 1 W max Suspend mode ........2.5 mA, max © National Instruments Corporation NI USB-9264 User Guide and Specifications... - Page 14 115 V for U.S. or 230 V for Europe. Do not connect the NI USB-9264 to signals or use for measurements within Caution Measurement Categories III or IV.
-
Page 15: Electromagnetic Compatibility
Environmental National Instruments C Series modules are intended for indoor use only but may be used outdoors if installed in a suitable enclosure. Operating temperature (IEC 60068-2-1, IEC 60068-2-2)... –40 to 70 °C Storage temperature (IEC 60068-2-1, IEC 60068-2-2)... –40 to 85 °C Operating humidity (IEC 60068-2-56) .. -
Page 16: Online Product Certification
Waste Electrical and Electronic Equipment (WEEE) At the end of their life cycle, all products must be sent to a WEEE recycling EU Customers center. For more information about WEEE recycling centers and National Instruments WEEE initiatives, visit ni.com/environment/weee.htm RoHS... -
Page 17: Where To Go For Support
Thailand 662 278 6777, Turkey 90 212 279 3031, United Kingdom 44 (0) 1635 523545 National Instruments, NI, ni.com, and LabVIEW are trademarks of National Instruments Corporation. Refer to the Terms of Use section on ni.com/legal for more information about National Instruments trademarks.
