ELENCO COMPONENTI
DIMENSIONI
CODICE
DESCRIZIONE / DESCRIPTION
/ CODE
STAFFA A PAVIMENTO
SCD500005
FREEDOM EVO 440
/ FLOOR STAND FREEDOM EVO 440
STAFFA A PAVIMENTO
SCD500006
FREEDOM EVO 480
/ FLOOR STAND FREEDOM EVO 480
STAFFA A PAVIMENTO
SCD500007 FREEDOM EVO 550
/ FLOOR STAND FREEDOM EVO 550
2

/ LIST OF COMPONENTS

14 13
2
9
3
4
7

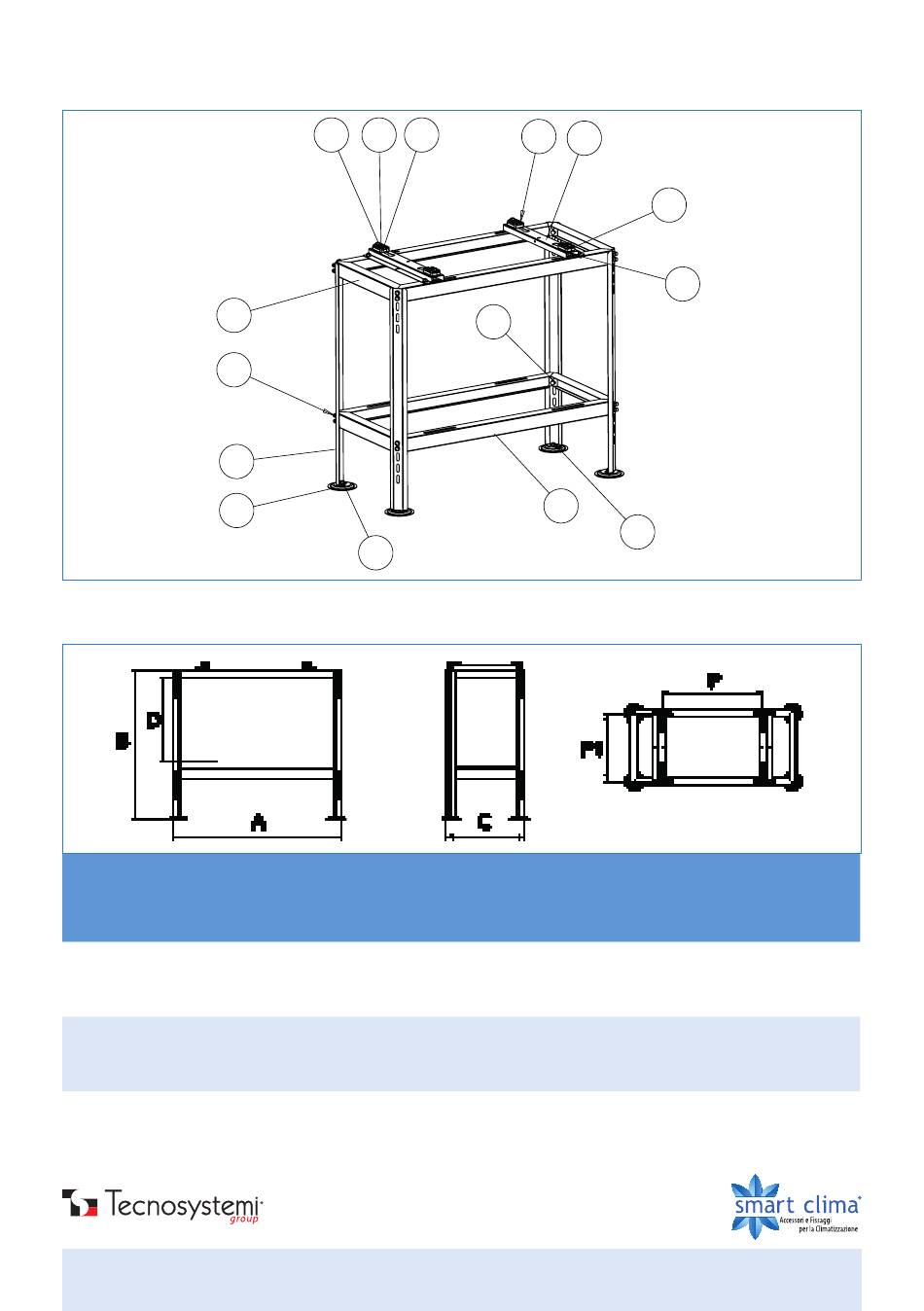

/ DIMENSIONS

10
11
5
8
1
A B C
[mm] [mm] [mm] [mm]
895 810 410 324/715 220/360 450/590
940 810 480 324/755 280/435 450/590
1010 810 550 385/825 310/510 450/590
12
15
6
P P1 D
[mm] [mm]
PORTATA
[kg]
/ WEIGHT
CAPACITY
150
200
250
