Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VP-250 1:2 High Resolution UXGA DA... -
Page 2: Table Of Contents
Technical Specifications Figures Figure 1: VP-250 1:2 High Resolution UXGA DA Figure 2: VP-250 1:2 High Resolution UXGA DA – Top and Lower Side Panels Figure 3: VP-250 1:2 High Resolution UXGA DA Underside Figure 4: Connecting the VP-250 Tables... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from our Web site: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 4: Your Vp-250 1:2 High Resolution Uxga Da

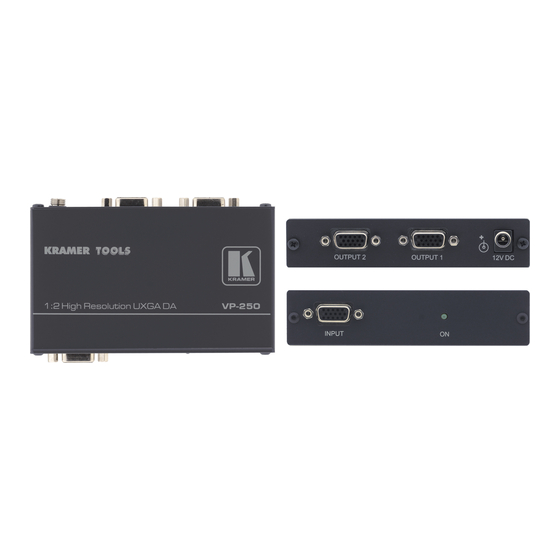

Your VP-250 1:2 High Resolution UXGA DA Figure 1, Figure 2 and Table 1 define the VP-250 unit: Figure 1: VP-250 1:2 High Resolution UXGA DA 1 The polarity is determined via a pair of underside switches. Note that both the Hs (horizontal sync) switch and the Vs (vertical sync) switch should be set identically 2 Via an underside switch. -
Page 5: Figure 2: Vp-250 1:2 High Resolution Uxga Da - Top And Lower Side Panels
Your VP-250 1:2 High Resolution UXGA DA Figure 2: VP-250 1:2 High Resolution UXGA DA – Top and Lower Side Panels Table 1: Features and Functions of the VP-250 1:2 High Resolution UXGA DA Feature OUTPUT 2 HD15F Connector OUTPUT 1 HD15F Connector... -
Page 6: Figure 3: Vp-250 1:2 High Resolution Uxga Da Underside
Your VP-250 1:2 High Resolution UXGA DA Figure 3: VP-250 1:2 High Resolution UXGA DA Underside Table 2: VP-250 1:2 High Resolution UXGA DA Underside Features Feature BLUE DC-AC Switch GREEN DC-AC Switch RED DC-AC Switch Hs (Horizontal Sync) Switch... -
Page 7: Connecting Your Vp-250 1:2 High Resolution Uxga Da
Connecting Your VP-250 1:2 High Resolution UXGA DA Connecting Your VP-250 1:2 High Resolution UXGA DA To output a UXGA the example in Figure 4 illustrates, do the following: 1. Connect a UXGA INPUT HD15F connector. 2. Connect the OUTPUT HD15F connectors to up to 2 acceptors, as follows:... -
Page 8: Figure 4: Connecting The Vp-250
Connecting Your VP-250 1:2 High Resolution UXGA DA Computer Display 2 Display 1 Graphics Source Figure 4: Connecting the VP-250 KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 9: Technical Specifications
12cm x 7.15cm x 2.76cm (4.7" x 2.8" x 1.08"), W, D, H WEIGHT: 0.3 kg. (0.67 lbs.) approx. ACCESSORIES: Power supply, mounting bracket OPTIONS: 19" rack adapters RK-T1, RK-T3 1 Specifications are subject to change without notice Technical Specifications of the VP-250 1:2 High Resolution UXGA DA... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
