Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL XGA Line Amplifier Model: VP-210xl IMPORTANT: Before proceeding, please read paragraph entitled "Unpacking and Contents" KRAMER ELECTRONICS LTD. -
Page 2: Table Of Contents
Handling Graphics Signals Factors Affecting Quality of Results HOW DO I GET STARTED UNPACKING AND CONTENTS Optional Accessories XGA LINE AMPLIFIER Getting to know your VP-210xl Line Amplifier INSTALLATION Rack Mounting USING THE LINE AMPLIFIER Typical Application VP-210xl preset Handling signal losses... -
Page 3: Introduction
(resulting from the use of long cables, noisy source, etc.) and generates several identical buffered and amplified outputs. The front panels of these Kramer amplifiers are designed to be simple to operate. Typical applications of the machines are: computer graphics distribution in classes, point of sale and multimedia studios, displaying computer graphics before large audiences using the data input of a wide screen video projector. - Page 4 High-resolution graphics systems should use very high quality cables for image transmission. The cables should be shielded to eliminate externally induced interference but the shield might itself increase the capacitance of the cable, and therefore, cause deterioration in the image’s resolution and clarity. Standard KRAMER ELECTRONICS LTD.
-
Page 5: Factors Affecting Quality Of Results
Interference from neighboring electrical appliances - They can have an adverse effect on signal quality. Balanced audio lines are less prone to interference, but unbalanced audio should be installed far from any mains power cables, electric motors, transmitters, etc. even when the cables are shielded. KRAMER ELECTRONICS LTD. -
Page 6: How Do I Get Started
If a section doesn’t apply to you, you don’t have to spend your time reading it. UNPACKING AND CONTENTS The items contained in your Kramer distributor package are listed below. Please save the original box and packaging materials for possible future shipment. "... -
Page 7: Xga Line Amplifier
Getting to Know Your VP-210xl Line Amplifier The Kramer VP-210xl is a high performance Line Amplifier for VGA/XGA signals. It accepts one input, provides correct buffering and isolation, loops it out to a local monitor or another acceptor and outputs an amplified and equalized signal to a remote acceptor. -

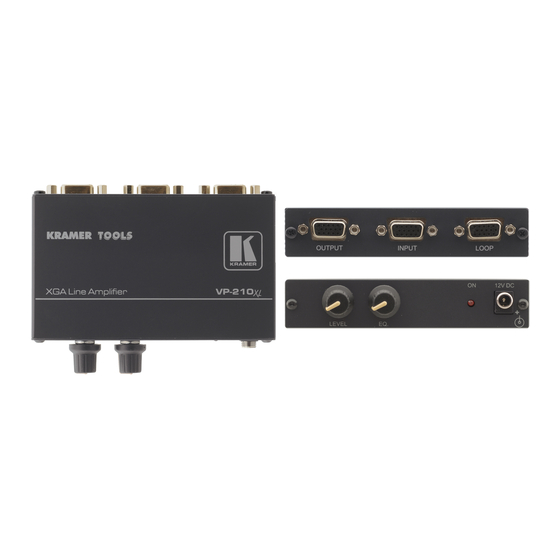

Page 8: Vp-210Xl Front/Rear Panel Features
Figure 1: VP-210xl Front/Rear Panel Features Table 1: VP-210xl Front/Rear Panel Features No. Feature Function LOOP HD 15 connector VGA/XGA loop output to local monitor. INPUT HD 15 connector VGA/XGA input OUTPUT HD 15 connector VGA/XGA output to remote acceptor. -
Page 9: Installation
INSTALLATION Rack Mounting The VP-210xl line amplifier may be rackmounted in a standard 19” (1U or 3U) EIA rack assembly, using either the RK-T1 optional adapter (1U rack space - for mounting up to three machines) or the RK-T3 optional adapter (3U rack space for mounting up to eight machines). -
Page 10: Vp-210Xl Preset
6.3 - “handling signal losses”. VP-210xl Preset In order to use the VP-210xl efficiently, the machine should be preset to the required application. There are four dip switches accessible from the bottom of the machine. Three are used for enabling the looping option, and one is used for pin 4 ID control. -
Page 11: Handling Signal Losses
Long and/or low quality cables tend to degrade the signal quality, resulting in image “smear” and fine-detail loss, as well as signal level attenuation. The VP-210xl allows the user to handle and correct those problems, using the built-in amplifiers. Using very high quality cables of 1-2 meter length will not require adjustment, even when the signals involved are UXGA signals (1600x1200 resolution). -
Page 12: Adding More Outputs
2 outputs, the VP-300 provides 3, the VP-400 provides 4 and so on up to the VP-12xl that is able to provide 12 parallel outputs from a single input. All that is needed is to connect the output of the VP-210xl to the input of the selected distributor. -
Page 13: Specifications
If not, disconnect power from the machine and reconnect again to reset the machine. If the recommended actions still do not result in satisfactory operation, please consult your KRAMER Dealer. KRAMER ELECTRONICS LTD. -
Page 14: Power And Indicators
Confirm that the connecting cables are of high quality and properly inserted. Check level controls on your source input device or output display. KRAMER ELECTRONICS LTD. -
Page 15: Limited Warranty
Except as below, this warranty covers all defects in material or workmanship in this product. The following are not covered by the warranty: Any product which is not distributed by Kramer, or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the web site www.kramerelectronics.com. - Page 16 EXCLUSION OF DAMAGES Kramer’s liability for any defective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: 1) Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 17 This warranty gives you specific legal rights, and you may also have other rights, which vary from place to place. NOTE: All products returned to Kramer for service must have prior approval. This may be obtained from your dealer. NOTICE...
- Page 18 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
