Operating Instructions

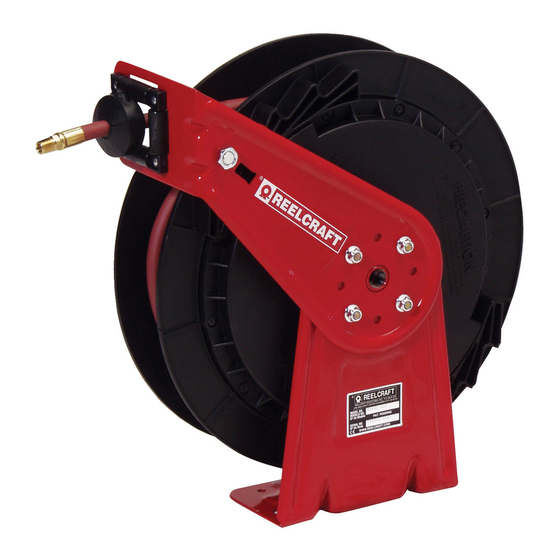

Series RT Spring Driven Hose Reels
Low Pressure Model Numbers:
RT402-OLP RT802-OLP RT625-OLP
RT403-OLP RT803-OLP RT635-OLP
RT405-OLP RT805-OLP RT650-OLP
RT406-OLP RT425-OLP RT825-OLP
RT602-OLP RT435-OLP RT835-OLP
RT603-OLP RT450-OLP RT850-OLP
RT605-OLP RT465-OLP RT450-OLPSM
SAFETY
Personal injury and/or equipment damage may result if proper safety
precautions are not observed.
• Ensure that reel is properly installed before connecting input and
output hoses.
• Bleed fluid/gas pressure from system before servicing reel.
• Before connecting reel to supply line, ensure that pressure does
not exceed maximum working pressure rating of reel.
• Remember, even low pressure is very dangerous and can cause
personal injury or death.
• Be aware of machinery and personnel in work area.
• If a leak occurs in the hose or reel, remove system pressure
immediately.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
RT635-OLPSM
RT650-OLPSM
RT825-OLPSM
RT835-OLPSM
RT850-OLPSM

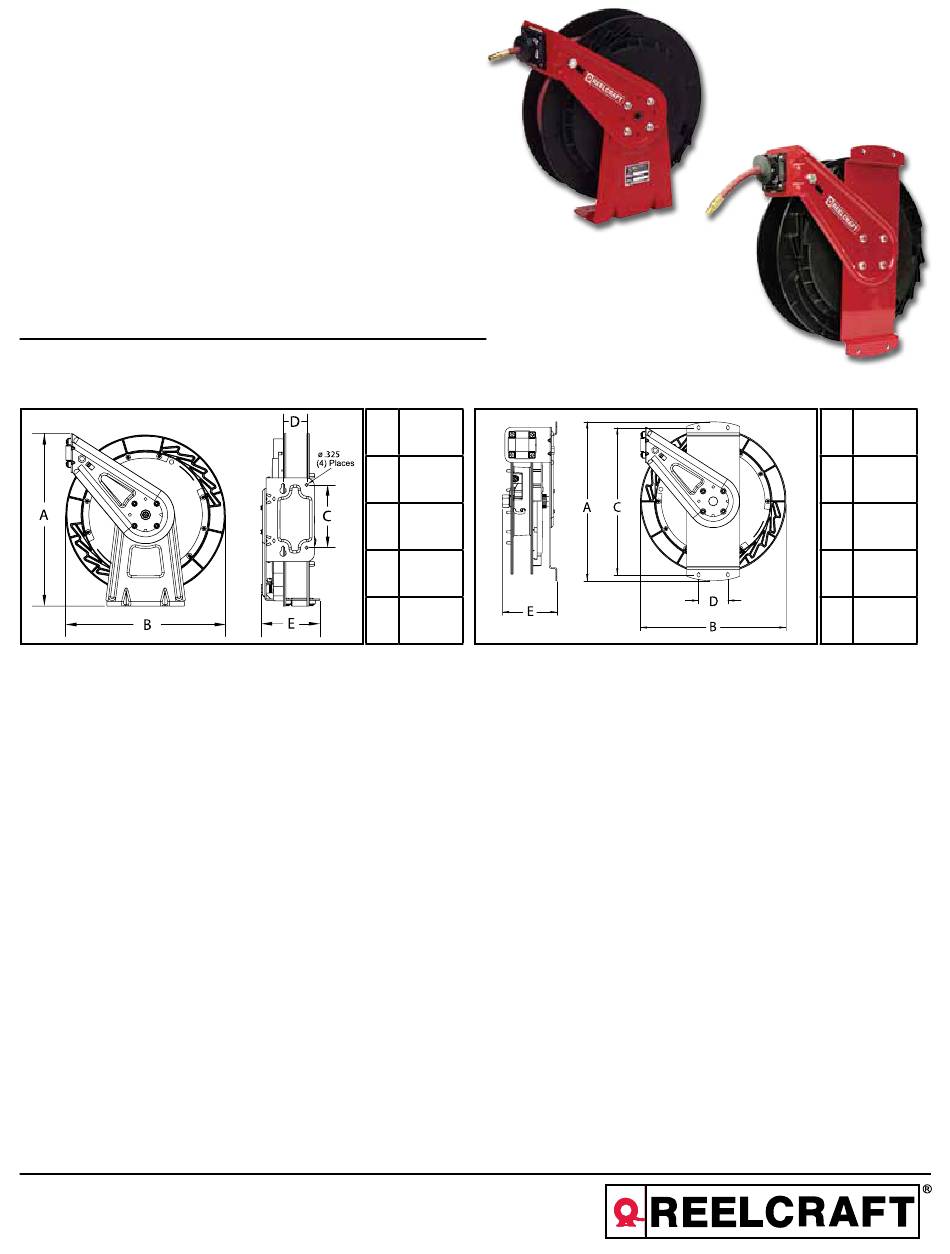

Dimensions
A
17 7/8"
B
16 1/2"
C
6"
D
2 1/4"
See
E
page 6
• A high tension spring assembly is contained within the reel.
Exercise extreme caution.
• Pull hose from reel by grasping the hose itself, not the control
valve.
• Ensure that reel, hose, and equipment being serviced are
properly grounded. Use an ohmmeter to check ground
continuity.
• If reel ceases to unwind or rewind, remove system pressure
immediately. Do not pull or jerk on hose!
• Treat and respect the hose reel as any other piece of machinery,
observing all common safety practices.
A
18"
B
16 7/16"
C
16 11/16"
D
3 5/16"
See
E
page 7
Form# 1121-802A Rev: 11/2013
Advertisement
Related Manuals for ReelCraft RT402-OLP
Summary of Contents for ReelCraft RT402-OLP
- Page 1 • Remember, even low pressure is very dangerous and can cause continuity. personal injury or death. • If reel ceases to unwind or rewind, remove system pressure • Be aware of machinery and personnel in work area. immediately. Do not pull or jerk on hose! • If a leak occurs in the hose or reel, remove system pressure • Treat and respect the hose reel as any other piece of machinery, immediately. observing all common safety practices. Form# 1121-802A Rev: 11/2013 Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725 Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605 Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com...
-
Page 2: Mounting Applications
Use a flexible hose connection at input. Do not use rigid plumbing. (input hose not included) Apply pipe thread sealant to threads on standard reels. Do not over tighten the connection. Recommended torque should not exceed 70 ft./lb. figure 5 Page 2 www.reelcraft.com... - Page 3 Tighten the drive spring by turning the spool two or three revolutions and engage the latch pawl. Pull the hose through the roller opening in the guide arm and replace the hose bumper (figure 6) figure 8 www.reelcraft.com Page 3...
- Page 4 See the procedure for “Replacing the Hose”. Remove swivel by unscrewing the threaded stem from the main shaft (figure 11). Replace swivel by screwing threaded stem of swivel into main shaft of reel. Replace the hose. figure 11 Page 4 www.reelcraft.com...
- Page 5 Pull in the hose by turning the spool by hand. When the hose is completely wound onto the spool, turn the spool in the other direction two to three revolutions. Pull the hose through the roller opening in the guide arm and replace the hose bumper (figure 6). www.reelcraft.com Page 5...
- Page 6 Series RT Spring Driven Hose Reels Item Description Req. RT402-OLP RT403-OLP RT405-OLP RT406-OLP RT602-OLP RT603-OLP RT605-OLP RT802-OLP RT803-OLP RT805-OLP 1/4-20 Lock Nut 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 261650-1 Spool Assembly S600827 S600827 S600860 602239 S600827 S600827 S600828 S600879 S600879...
- Page 7 602263 602263 600264 602264 602264 602265 12 Spacing Washer 300034 300034 300034 300034 300034 300034 13 Snap Ring 300031 300031 300031 300031 300031 300031 14 Swivel Assembly 602262 602262 602262 602311 602311 602311 “E” Dimensions - See page 1 6 1/8” 7 5/16” 7 5/16” 7 5/16” 7 5/16” 8 5/8” www.reelcraft.com Page 7...
