ReelCraft RT Series Operating Instructions Manual

Operating Instructions

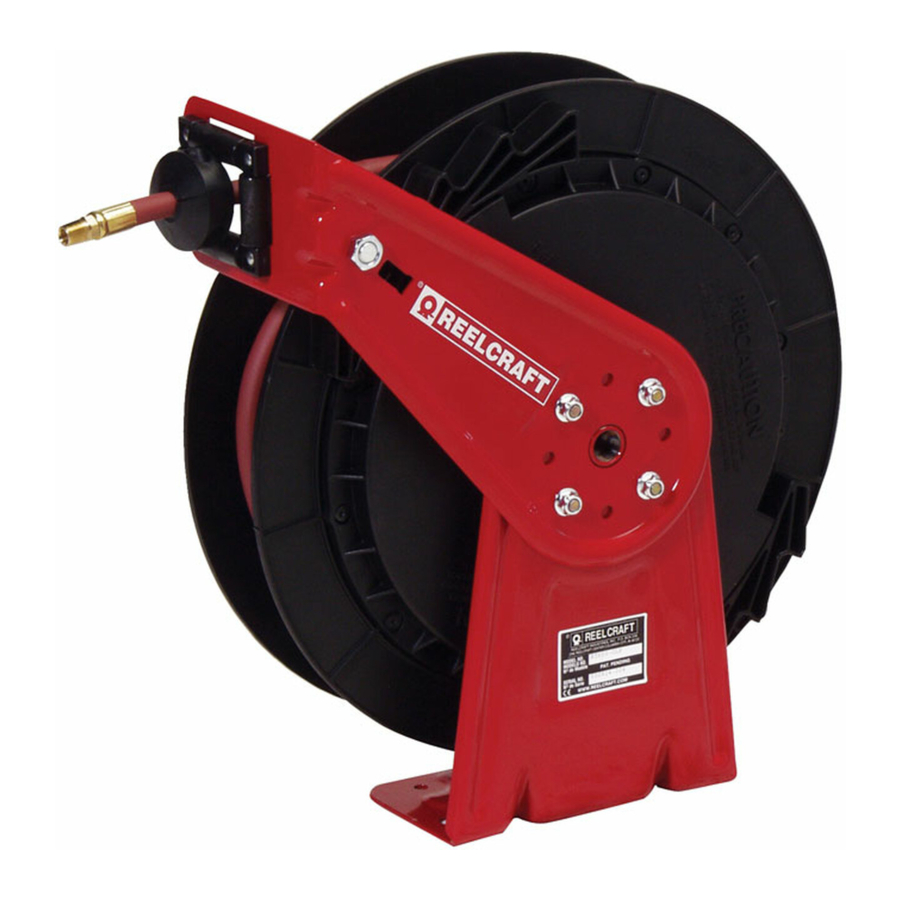

Series RT Spring Driven Hose Reels
Medium and High Pressure Model Numbers:
RT602-OMP RT635-OMP RT602-OHP RT635-OHP
RT603-OMP RT650-OMP RT603-OHP RT650-OHP
RT605-OMP RT825-OMP RT605-OHP RT650-OMPSM
RT802-OMP RT835-OMP RT425-OHP
RT803-OMP RT402-OHP RT435-OHP
RT625-OMP RT403-OHP RT625-OHP
A
B
SAFETY
Personal injury and/or equipment damage may result if proper safety
precautions are not observed.
• Ensure that reel is properly installed before connecting input and
output hoses.
• Bleed fluid/gas pressure from system before servicing reel.
• Before connecting reel to supply line, ensure that pressure does
not exceed maximum working pressure rating of reel.
• Remember, even low pressure is very dangerous and can cause
personal injury or death.
• Be aware of machinery and personnel in work area.
• If a leak occurs in the hose or reel, remove system pressure
immediately.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com

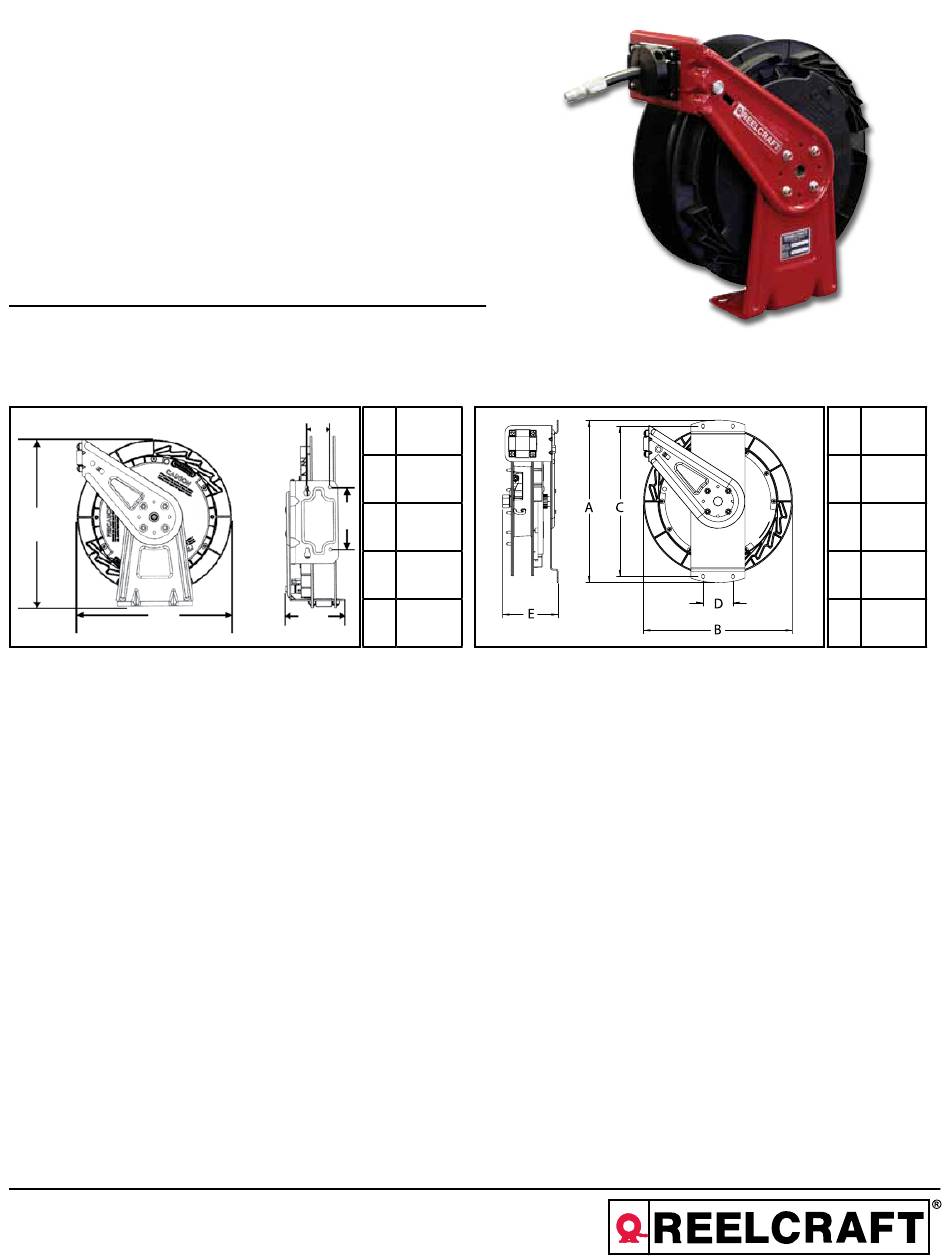

Dimensions
D
A
17 7/8"
B
16 1/2"
C
C
6"
D
2 1/4"
See
E E
page 6
• A high tension spring assembly is contained within the reel.
• Pull hose from reel by grasping the hose itself, not the control
• Ensure that reel, hose, and equipment being serviced are
properly grounded. Use an ohmmeter to check ground
continuity.
• If reel ceases to unwind or rewind, remove system pressure
• Treat and respect the hose reel as any other piece of machinery,
Exercise extreme caution.
valve.
immediately. Do not pull or jerk on hose!
observing all common safety practices.
A
18"
B
16 7/16"
C
16 11/16"
D
3 5/16"
See
E
page 7
Form# 1121-802B Rev: 4/2013
