ReelCraft 80000 Series Operating Instructions Manual

Operating Instructions

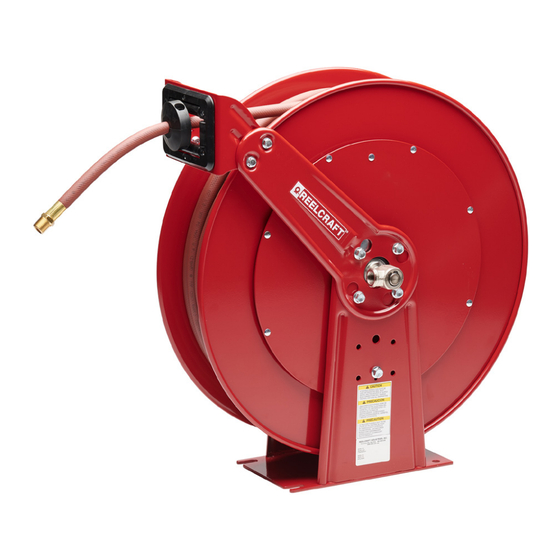

Series 80000 Spring Driven Hose Reels
81075 OLP 82000 OLP
81100 OLP 83050 OLP
81000 OLP 83000 OLP
82075 OLP 82075 OMP
82100 OLP 82100 OMP
IMPORTANT
Read this manual carefully before installing,
operating or servicing this equipment.
Personal Safety
Personal injury and/or equipment damage
may result if proper safety precautions are
not observed.
• Ensure that reel is properly installed
before connecting input and output
hoses.
• Bleed fluid/gas pressure from system
before servicing reel.
• Before connecting reel to supply line,
ensure that pressure does not exceed
maximum working pressure rating of
reel.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
82000 OMP F83050 OLP
83050 OMP F83000 OLP
83000 OMP 83050 OLP-HTH
81100 OHP GC82075 OLP
81000 OHP GC83050 OLP
Dimensional Data
D
• Remember, even low pressure is very
dangerous and can cause personal
injury or death.
• Be aware of machinery and personnel
in work area.
• If a leak occurs in the hose or reel,
remove system pressure immediately.
• A high tension spring assembly is
contained within the reel. Exercise
extreme caution.
B
A
B
A
C
D
C
E
F
E
F
25 3/8"
24"
10"
6"
10 1/2"
8 1/8"
• Pull hose from reel by grasping the
hose itself, not the control valve.
• If reel ceases to unwind or rewind,
remove system pressure immediately.
Do not pull or jerk on hose!
• Treat and respect the hose reel as any
other piece of machinery, observing all
common safety practices.
Form# 936-198 Rev: 9/2024
