ReelCraft 7000 Series Operating Instructions Manual

Operating Instructions

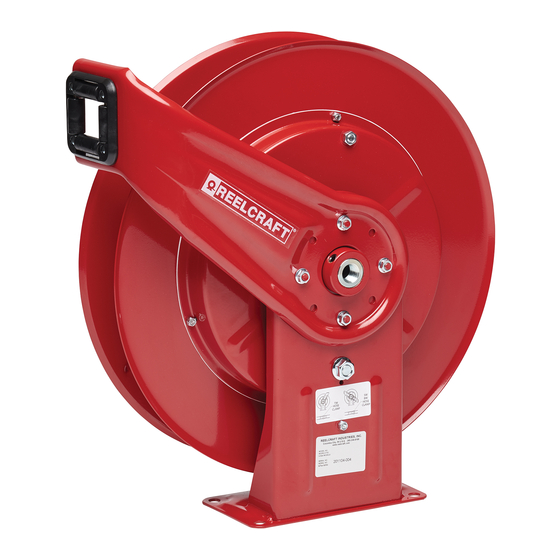

Series 7000 Spring Driven Hose Reels
Low, Medium and High Pressure Model Numbers:
7600 OLP 7830 OLP
7640 OLP 7840 OLP
7650 OLP 7850 OLP
7607 OLP 7850 OLP121
7670 OLP 7850 OLPSW57 7650 OMP
7800 OLP 7900 OLP
Dimensions
SAFETY
Personal injury and/or equipment damage may result if proper safety
precautions are not observed.
• Ensure that reel is properly installed before connecting input and
output hoses.
• Bleed fluid/gas pressure from system before servicing reel.
• Before connecting reel to supply line, ensure that pressure does
not exceed maximum working pressure rating of reel.
• Remember, even low pressure is very dangerous and can cause
personal injury or death.
• Be aware of machinery and personnel in work area.
• If a leak occurs in the hose or reel, remove system pressure
immediately.
Reelcraft Industries, Inc. • 2842 E Business Hwy 30, Columbia City, IN 46725
Ph: 800-444-3134 / 260-248-8188 • Fax: 800-444-4587 / 260-248-2605
Customer Service: 855-634-9109 • reelcraft@reelcraft.com • www.reelcraft.com
7925 OLP 7830 OMP
7600 OMP 7840 OMP
7630 OMP 7850 OMP
7640 OMP 7400 OHP
7440 OHP
7800 OMP 7450 OHP
A 20 1/4"
B 19 3/4"
C 7 13/16"
D 3 7/8"
E 7"
7600 OHP
7640 OHP
7650 OHP
7650 OLP-HTH
7850 OLP-HTH121
7925 OLP-HTH
Read this manual carefully before installing, operating or
• A high tension spring assembly is contained within the reel.
Exercise extreme caution.
• Pull hose from reel by grasping the hose itself, not the control
valve.
• Ensure that reel, hose, and equipment being serviced are
properly grounded. Use an ohmmeter to check ground
continuity.
• If reel ceases to unwind or rewind, remove system pressure
immediately. Do not pull or jerk on hose!
• Treat and respect the hose reel as any other piece of machinery,
observing all common safety practices.
IMPORTANT
servicing this equipment.
Form# 829-696A Rev: 4/2017
