Summary of Contents for Kramer VP-3XL
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Models: VP-3xl, 1:3 VGA/UXGA Distributor VP-4xl, 1:4 VGA/UXGA Distributor VP-5xl, 1:5 VGA/UXGA Distributor... -
Page 2: Table Of Contents
Table 4: Rear Panel VP-4xl 1:4 VGA/UXGA Distributor Features Table 5: Front Panel VP-5xl 1:5 VGA/UXGA Distributor Features Table 6: Rear Panel VP-5xl 1:5 VGA/UXGA Distributor Features Table 7: VGA/UXGA Distributor Underside Features Table 8: Technical Specifications of the VP-3xl / VP-4xl / VP-5xl VGA/UXGA Distributor Contents... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com/manuals.html 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com (click “Cables and Connectors” in the Products section) -
Page 4: Your Vga/Uxga Distributor
This section describes each VGA/UXGA Distributor, as follows: VP-3xl (see section 4.1) VP-4xl (see section 4.2) VP-5xl (see section 4.3) The underside of the VGA/UXGA Distributor is identical on the VP-3xl, VP-4xl, and VP-5xl (see section 4.4). Your VGA/UXGA Distributor KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 5: Your Vp-3Xl 1:3 Vga/Uxga Distributor
4.1 Your VP-3xl 1:3 VGA/UXGA Distributor Figure 1, Table 1, and Table 2 define the VP-3xl 1:3 VGA/UXGA Distributor: Figure 1: VP-3xl 1:3 VGA/UXGA Distributor Table 1: Front Panel VP-3xl 1:3 VGA/UXGA Distributor Features Feature POWER Switch EQ. Trimmer Table 2: Rear Panel VP-3xl 1:3 VGA/UXGA Distributor Features... -
Page 6: Your Vp-4Xl 1:4 Vga/Uxga Distributor
Illuminated switch for turning the unit ON or OFF Adjusts the video EQ. (equalization) compensation Function Connect to the VGA/UXGA source Connect to the VGA/UXGA acceptor (from 1 to 4) AC connector enabling power supply to the unit KRAMER: SIMPLE CREATIVE TECHNOLOGY... -
Page 7: Your Vp-5Xl 1:5 Vga/Uxga Distributor

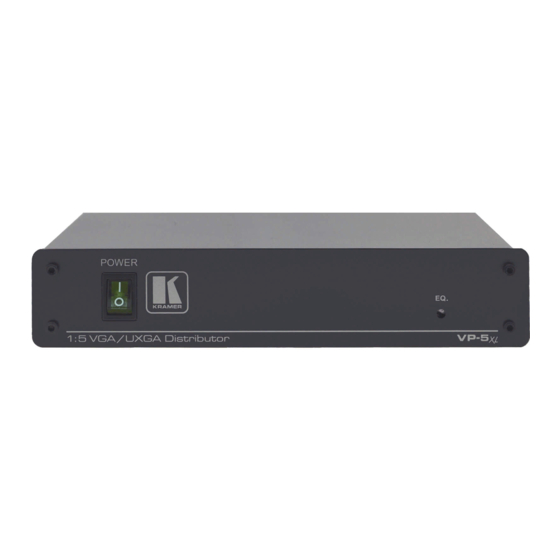

4.3 Your VP-5xl 1:5 VGA/UXGA Distributor Figure 3, Table 5, and Table 6 define the VP-5xl 1:5 VGA/UXGA Distributor: Figure 3: VP-5xl 1:5 VGA/UXGA Distributor Table 5: Front Panel VP-5xl 1:5 VGA/UXGA Distributor Features Feature POWER Switch EQ. Trimmer Table 6: Rear Panel VP-5xl 1:5 VGA/UXGA Distributor Features Feature INPUT HD15F Connector OUTPUT HD15F Connector... -
Page 8: Your Vp-3Xl, Vp-4Xl, And Vp-5Xl Vga/Uxga Distributor Underside
PIN 4 ID BIT CONTROL Switch Using Your VGA/UXGA Distributor You can use any VGA/UXGA Distributor—the VP-3xl, the VP-4xl, and/or the VP-5xl—to output the VGA/UXGA signal from a laptop or a PC. To output the XGA signal from a laptop’s digital graphics card to up to 5 monitors using a VP-5xl (as the example in Figure 5 illustrates), do the following: 1. -
Page 9: Technical Specifications
OPTIONS: 1 Specifications are subject to change without notice Technical Specifications of the VP-3xl / VP-4xl / VP-5xl VGA/UXGA Distributor VP-3xl/VP-4xl/VP-5xl: 1 VGA/UXGA input on an HD15F connector VP-3xl: 3 VGA/UXGA outputs on HD15F connectors VP-4xl: 4 VGA/UXGA outputs on HD15F connectors... - Page 10 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 11 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com. Updates to this user manual may be found at http://www.kramerelectronics.com/manuals.html. We welcome your questions, comments and feedback. Kramer Electronics, Ltd. Web site: www.kramerelectronics.com E-mail: info@kramerel.com...
