Summary of Contents for Kramer VP-103
-
Page 1: User Manual
Kramer Electronics, Ltd. USER MANUAL Model: VP-103 XGA Line Amp/Converter... -
Page 2: Table Of Contents
Connecting your VP-103 XGA Line Amp/Converter Technical Specifications Figures Figure 1: VP-103 XGA Line Amp/Converter – Front and Rear View Figure 2: Connecting the VP-103 XGA Line Amp/Converter Tables Table 1: Features and Functions of the VP-103 XGA Line Amp/Converter... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 4: Overview
Includes selectable output sync pushbuttons Includes a front-panel termination pushbutton Includes front panel Level and Cable EQ. controls The VP-103 is rugged, dependable, and runs on a standard 12VDC source. To achieve the best performance: Connect only good quality connection cables, thus avoiding interference,... -
Page 5: Your Vp-103 Xga Line Amp/Converter

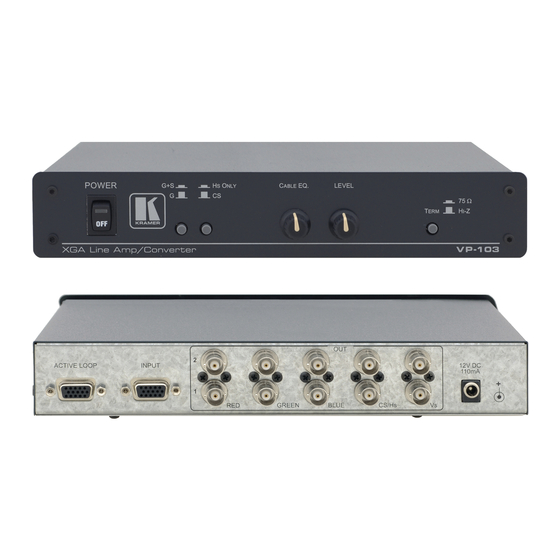

Your VP-103 XGA Line Amp/Converter Your VP-103 XGA Line Amp/Converter Figure 1and Table 1 define the VP-103 XGA Line Amp/Converter: Figure 1: VP-103 XGA Line Amp/Converter – Front and Rear View Table 1: Features and Functions of the VP-103 XGA Line Amp/Converter Feature... -
Page 6: Connecting Your Vp-103 Xga Line Amp/Converter
Graphics Source Figure 2: Connecting the VP-103 XGA Line Amp/Converter 1 Switch OFF the power on each device before connecting it to your VP-103. After connecting your VP-103, switch on its power and then switch on the power on each device... -
Page 7: Technical Specifications
OPTIONS: 1 Specifications are subject to change without notice Technical Specifications of the VP-103 XGA Line Amp/Converter Looping analog red, green, blue signals - 0.7 Vpp/75 , H & V sync, TTL level, on an HD15F connector 2 x analog red, green (with or without composite sync), blue signals – 0.7 Vpp/75 , H &... - Page 8 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
- Page 9 For the latest information on our products and a list of Kramer distributors, visit our Web site: www.kramerelectronics.com, where updates to this user manual may be found. We welcome your questions, comments and feedback. Safety Warning: Disconnect the unit from the power supply before opening/servicing.
