4. WEB PAGES

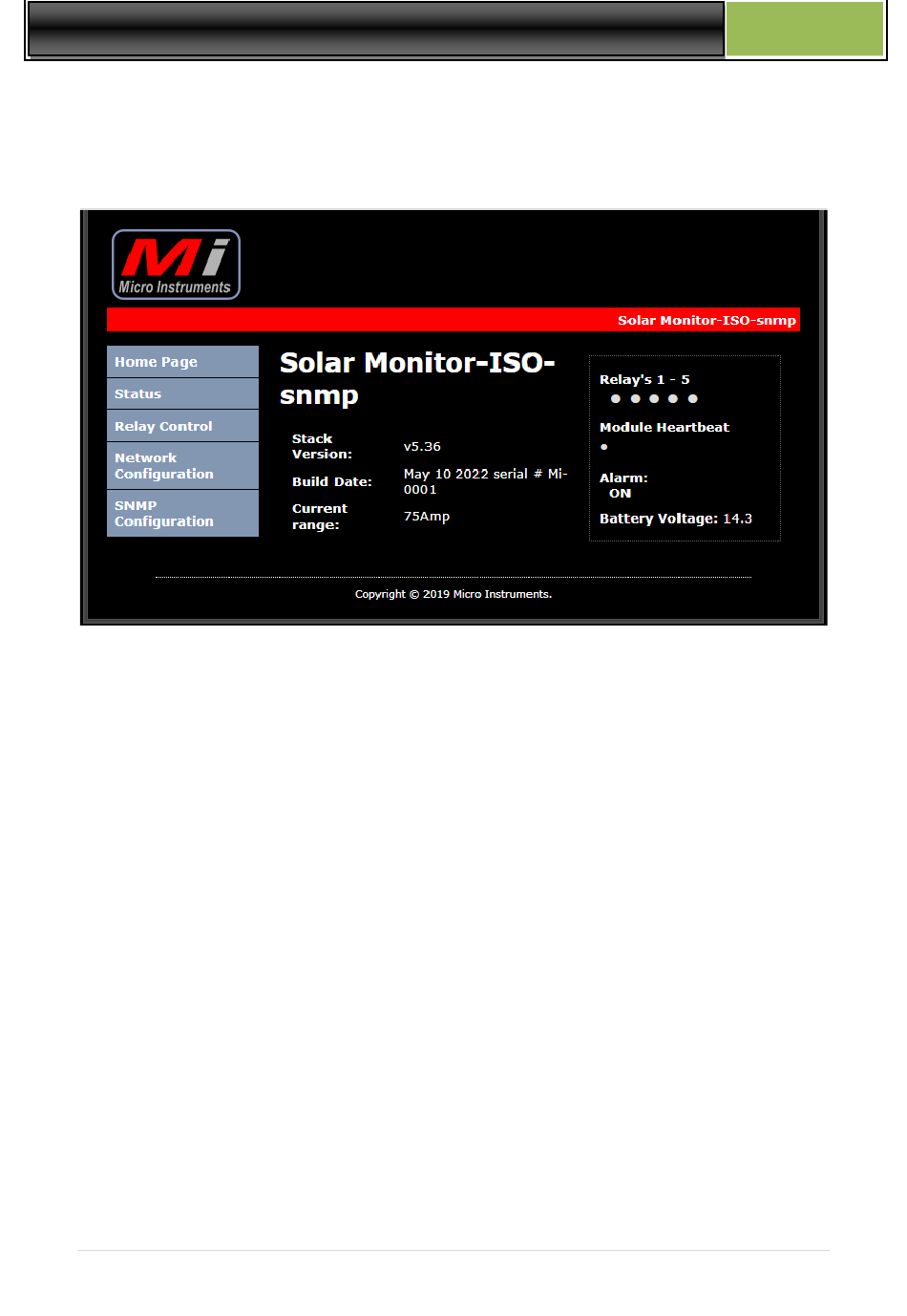

HOME PAGE
The Stack version is displayed, the build date of the firmware programmed on to the
device, the units serial number as well as the model number.
A visual indication of the status of Relays 5 to 1 is given and indicated by a green dot
if the relay is active (powered)
A "module heartbeat" indication by a yellow dot flashes once per second as the
software runs through the TCPIP applications.
– ON/OFF is displayed
Alarm
Left hand menu will navigate to different applications on the unit.
Home and Status page viewable without password
Password protected : Relay control page , Network page and SNMP
page
7 |
P a g e
