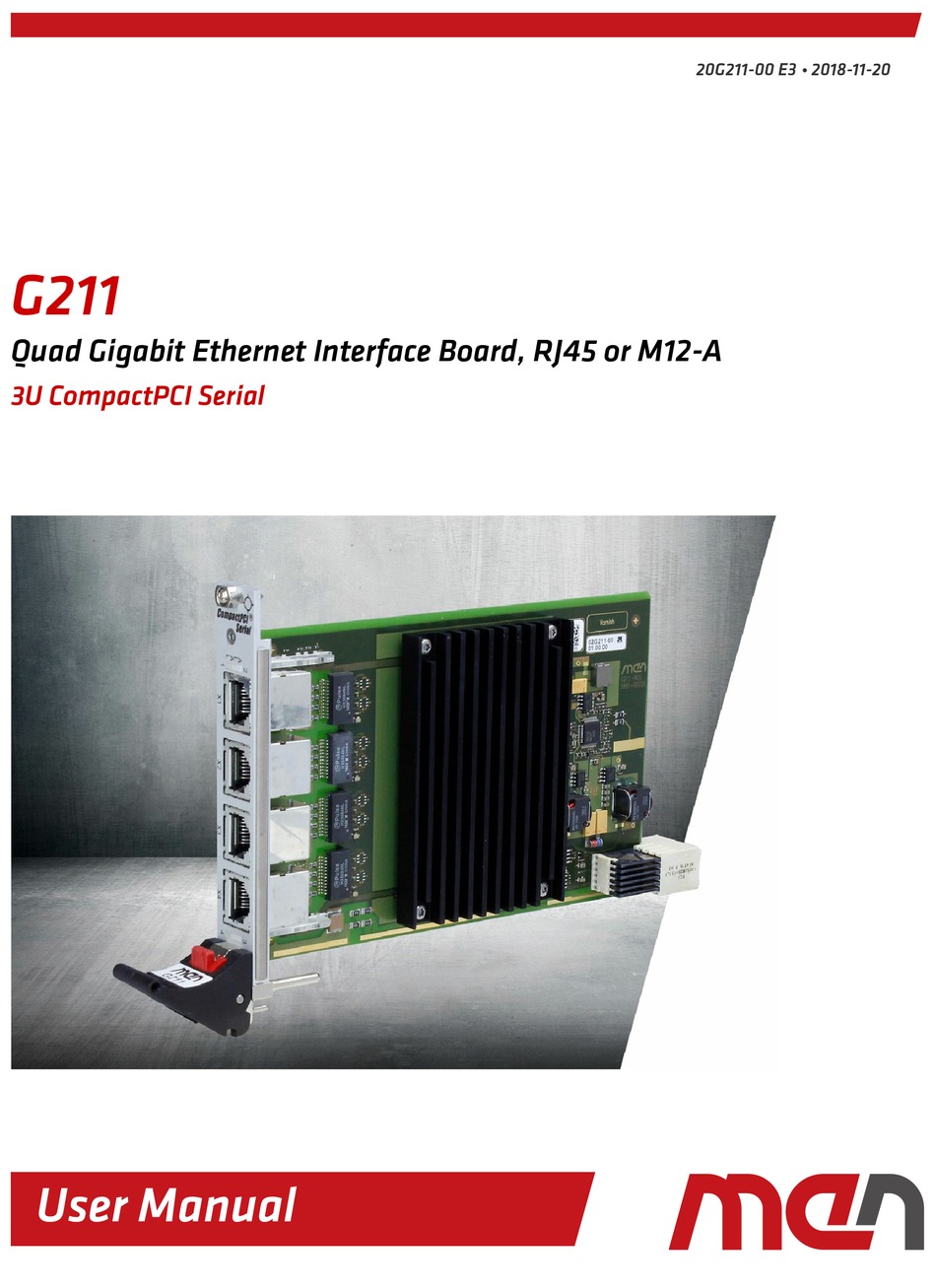

- Page 1 20G211-00 E3 2018-11-20 G211 Quad Gigabit Ethernet Interface Board, RJ45 or M12-A 3U CompactPCI Serial User Manual...
-
Page 2: Table Of Contents
Contents Contents Contents............2 About this Document . -
Page 3: About This Document
This document is intended only for system developers and integrators. It describes the design, functions and connection of the product. The manual does not include detailed information on individual components (data sheets etc.). G211 product page with up-to-date information and downloads: www.men.de/products/g211/ History... - Page 4 About this Document Conventions Indicates important information or warnings concerning situations which could result in personal injury, or damage or destruction of the component. Indicates important information concerning electrostatic discharge which could result in damage or destruction of the component. Indicates important information or warnings concerning proper functionality of the product described in this document.
-
Page 5: Product Safety
Only store the product in its original ESD-protected packaging. Retain the original packaging in case you need to return the product to MEN for repair. 20G211-00 E3 2018-11-20 Page 5 ... -
Page 6: Legal Information
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OR USE. In no event shall MEN be liable for more than the contract price for the products in question. If buyer does not notify MEN in writing within the foregoing warranty period, MEN shall have no liability or obligation to buyer hereunder. - Page 7 Beyond that, according to REACH – Art.33, MEN will inform the customer immediately should a substance contained in an MEN product (with a content of > 0.1%) be classified alarming by the European Chemicals Agency (ECHA).
-
Page 8: Product Overview
Product Description Quad Gigabit Ethernet Board The G211 quad Ethernet interface is a rugged single Eurocard CompactPCI Serial peripheral board. It can be used in combination with a CompactPCI Serial or CompactPCI PlusIO CPU board in a CompactPCI Serial or hybrid system. -
Page 9: Product Architecture
Product Overview Product Architecture 1.2.1 Interfaces Figure 1. Front interfaces G211 with 4x RJ45 G211 with 4x M12 ® ® G211 G211 20G211-00 E3 2018-11-20 Page 9 ... -
Page 10: Figure 2. Board Layout - Top View With Rj45 Connectors
Product Overview Figure 2. Board layout – top view with RJ45 connectors Heat Sink Gigabit Ethernet Connector X1 Gigabit Ethernet Connector X2 Gigabit Ethernet Connector X3 Gigabit Ethernet Connector X4 CompactPCI Serial Connector P1 Figure 3. Board layout – top view with M12 connectors Heat Sink Gigabit Ethernet Connector X1 Gigabit Ethernet Connector X2 Gigabit Ethernet Connector X3 Gigabit Ethernet Connector X4 CompactPCI Serial Connector P1 20G211-00 E3... -
Page 11: Functions
Product Overview Functions Figure 4. Functional diagram Isolation Gigabit Ethernet Gigabit Ethernet PCIe 2.0 x4 PCI‐Express‐to‐Quad‐Ethernet Controller Gigabit Ethernet Gigabit Ethernet F Front Rear 20G211-00 E3 2018-11-20 Page 11 ... -
Page 12: Technical Data
Product Overview Technical Data Interfaces Ethernet 4x 10/100/1000BASE-T, M12, A-coded, receptacle 4x 10/100/1000BASE-T, RJ45 PCI Express 1x PCIe 2.0, x4, backplane Ethernet: activity, link Product Standard CompactPCI Serial: CompactPCI Serial PICMG CPCI-S.0 Specification Peripheral slot Electrical Specifications Supply voltage ... -
Page 13: Product Identification
Product Identification MEN documentation may describe several different models and design revisions of the G211. You can find the article number, design revision and serial number affixed to the G211. Article number: Indicates the product family and model. This is also MEN’s main ... -
Page 14: Getting Started
Power down the system. » Insert the G211 into a peripheral slot of your CompactPCI Serial system, making sure that the backplane connectors are properly aligned. Note: The peripheral slots of every system are marked by a circle with a plus sign behind it on the backplane and/or at the front panel: »... -
Page 15: Functional Description
Functional Description Functional Description Power Supply The G211 is supplied via the backplane. Ethernet Implementation: Controlled by an Intel 82580 Dual/Quad Gigabit Ethernet Controller 3.2.1 RJ45 Table 1. Connector types – Ethernet RJ45 Connector Type On G211 Modular 8/8-pin receptacle according to FCC68... -
Page 16: M12
3.2.2 Table 3. Connector types – Ethernet (8-pin M12) Connector Type On G211 8-pin M12 receptacle A-coded e.g., Phoenix Contact SACC-DSIV-FS-8CON-L90 SCO - 1436974 Mating 8-pin M12 plug A-coded crimp plug, slim design, e.g., Harting Electronics 21 01 100 9020 Table 4. -
Page 17: Ethernet Mac Addresses
Fourth connector from top 0x 00 C0 3A 9D 3x xx "00 C0 3A" is the MEN vendor code. The last six digits form the unique MAC address for each board. The last three digits correspond to the serial number of each G211:... -
Page 18: Compactpci Serial
Functional Description CompactPCI Serial Refer to the CompactPCI Serial standard PICMG CPCI-S.0 for detailed information regarding the rear I/O connectors. CompactPCI Serial Specification PICMG CPCI-S.0 Revision 2.0: 2015; PCI Industrial Computers Manufacturers Group (PICMG) www.picmg.org Introduction to CompactPCI Serial on Wikipedia: ...
