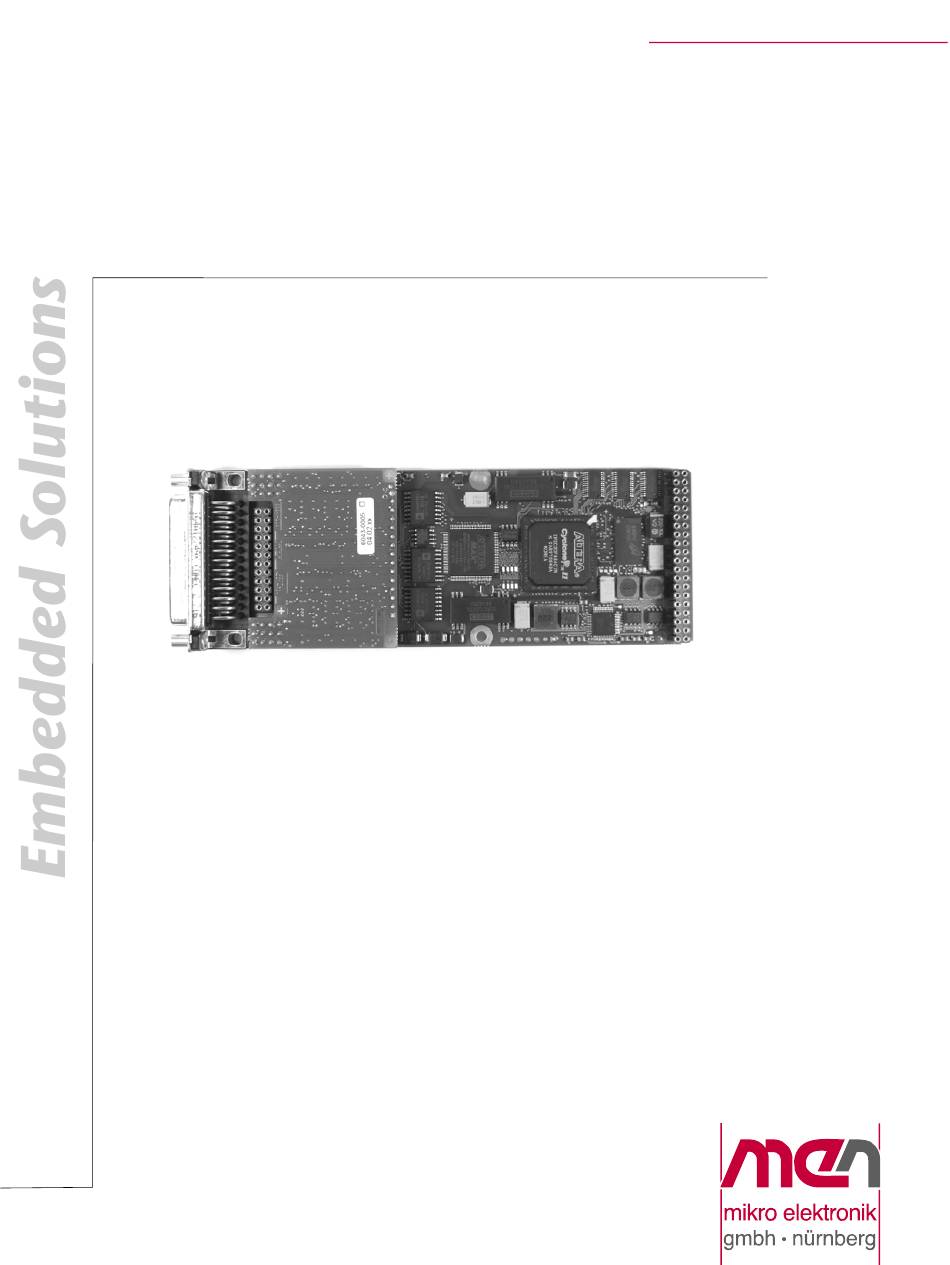

- Page 1 20M036N00 E2 – 2009-07-27 M36N – 8/16 Analog Inputs, 16 Bits Configuration example User Manual ®...
- Page 2 +85°C. A fast A/D converter and auto-incrementation of the multiplexer channel make the M-Module™ ideal for fast sampling. The complete acquisition time of an M36N is 130µs for all 16 channels and the precision is typically 0.05% over the whole temperature range. The M36N features totally automatic adjustment of each channel and each input range.
- Page 3 • Voltage Measurement - Precision: ±0.05% - Voltage max.: ±200V (common mode) - Voltage full scale bipolar operation: ±10V - Voltage full scale unipolar operation: 0..10V - Input resistance: 400 kOhm typ. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27...
- Page 4 • MTBF: 596,848h @ 40°C according to IEC/TR 62380 (RDF 2000) Mechanical Specifications • Dimensions: conforming to M-Module™ Standard • Weight: 102g Environmental Specifications • Temperature range (operation): - -40..+85°C - Airflow: min. 10m³/h MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27...
- Page 5 • Tested according to EN55011, EN50121-3-2 (limit value category A), EN61000- 4-2 (ESD) and EN61000-4-4 (burst) Software Support • MEN Driver Interface System (MDIS™ for Windows®, Linux, VxWorks®, QNX®, OS-9®) • For more information on supported operating system versions and drivers see online data sheet.
- Page 6 Flash CPLD Memory Signal Conditioning Channel MUX D08, Start-up Reloadable D16, Configuration Binary Input/ FPGA Code A08, M-Module External Trigger INTA Interface Signal D08, D16, FPGA A08, INTA Pregain M-Module ID EEPROM MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27...
- Page 7 - For intelligent data pre-processing or additional functions like noise shaping Please note that some of these options may only be available for large volumes. Please ask our sales staff for more information. For available standard configurations see online data sheet. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27...
- Page 8 • Store the board only in its original ESD-protected packaging. Retain the original packaging in case you need to return the board to MEN for repair. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27...
- Page 9 "in" meaning "to the board or component", "out" meaning "coming from it". Vertical lines on the outer margin signal technical changes to the previous issue of the document. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27...
- Page 10 MEN product could create a situation where personal injury or death may occur. Should Buyer purchase or...
-
Page 11: Table Of Contents
7.1 Literature and Web Resources ....... 32 7.2 Finding out the Board’s Article Number, Revision and Serial Number32 MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... - Page 12 Figure 4. Position of fuse on M36N........
- Page 13 Table 12. Data format (unipolar operation) ......29 MEN Mikro Elektronik GmbH...
-
Page 14: Getting Started
Installing Driver Software For a detailed description on how to install driver software please refer to the respective documentation. You can find any driver software available for download on MEN’s website. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 15: Connecting The M-Module
25-pin D-Sub plug according to DIN41652/MIL-C-24308, available for ribbon cable (insulation piercing connection), hand-soldering connection or crimp con- nection Note: For the M36N to pass the radio disturbance test according to EN55022 shielded cables have to be used. 2.1.2 Connection via Carrier Board/24-pin Connector... -
Page 16: Host Interface
/IRQ /RESET Connector types: • Three 20-pin receptacles, high-precision, 2.54mm pitch, for square pins ∅ 0.635mm gold, 6.9mm height • Mating connector: Three 20-pin plugs, 2.54mm pitch, square pins ∅ 0.635mm gold MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 17: Input Conditioning
One bit of additional information can be detected on pin BI. This pin does not trigger a function on the M-Module. By connecting this pin to IGND in the connector, you can detect whether the connector on the M-Module is plugged or not. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 18: Single-Ended Acquisition (Current/Voltage)
Input Conditioning Single-Ended Acquisition (Current/Voltage) A standard M-Module version for 16 single-ended channels is available (see MEN’s website). The input voltage range is adjusted to ±10V for full scale and the second- order lowpass filter limits the input frequencies to 1kHz (can be changed on request). -
Page 19: Table 3. 16 Single-Ended Inputs: Pin Assignment Of 24-Pin Receptacle Connector
Binary input. Reflects the level of each measure- ment. Can be used e.g. to detect if a connection is made, etc. I0..I15 Voltage or current input lines 0..15 IGND Isolated ground TRIG Trigger input MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 20: Differential Acquisition (Current/Voltage)
±20mA. The gain factor selected by software must be 8! Figure 2. Block diagram of the differential input Differential Filter Amplifier Multiplexer Shunt only for current measurement The following tables give the standard pin assignments for differential versions. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 21: Connector And 96-Pin Carrier Board Connector
Table 7. 8 differential inputs: pin assignment of the 24-pin receptacle connector IGND IGND IGND TRIG Table 8. 8 differential inputs: signal correspondence between 24-pin M-Module connector and 96-pin carrier board connector TRIG A BC IGND IGND IGND MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 22: Special Acquisition
It is possible to mount a special PCB on the M-Module to provide low-cost user- defined input circuits. Please contact MEN or your distributor. MEN also offers an evaluation adapter card. See MEN’s website. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 23: Address Organization
In order to ensure proper functioning of the M-Module please take care not to write on other addresses than the ones listed in Table 10, Address map. The Flash registers are used for updating the M36N. For further information please contact MEN’s support team. MEN Mikro Elektronik GmbH... -
Page 24: Functional Description
Principle of Data Acquisition The M36N is an automatic data acquisition system with up to 16 measuring digits. It is based on ANALOG DEVICES Inc.'s AD7634 chips. These are fast 18-bit A/D converters. The component uses a charge redistribution successive approximation register (SAR) architecture to achieve a conversion rate of more than 100kSPS (8,1µs total conversion time). - Page 25 Differing applications might require special adaptations of the M-Module applying to the source of the measured value. For this reason, input adaptation is not implemented on the M-Module itself but on a small additional PCB plugged on the M-Module. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27...
-
Page 26: Registers
Functional Description Registers The M36N has a sequencer, which stores the data coming from the A/D converter in a dual-ported RAM buffer. The measurement order can be determined by the user. The buffer has a size of 16 data elements. A data element is comprised of a measurement Data Register, an Address Register and a Configuration Register. - Page 27 If no external clock is available, this bit has to be set to 0. 0x60 Status Register ( ) (read) 15..8 7..3 IRQ BI Status of the IRQ bit Present status of the binary input MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27...
-
Page 28: Programming
The values 1,..,15,0 have to be written to Address Registers 0..15. If the configuration of channels 1,..,15,0 is written to the Configuration Registers 0..15, Data Registers 0..15 contain the values of inputs 0..15. MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 29: Reading Data (Without Interrupt)
0x8000 -10V -2.5V -1.25V -625mV Table 12. Data format (unipolar operation) ,gain 1 ,gain 2 ,gain 4 ,gain 8 ,gain 16 Output Code 0xFFFF 2.5V 1.25V 625mV 0x8000 2.5V 1.25V 625mV 312.5mV MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 30: M-Module Identification
The M-Module is supplied with an identification EEPROM in accordance with the M-Module specification. 0xFE M-Module Identification Register ( ) (read/write) 15..8 7..3 CS CLK DATA Chip-select 1 = Chip-select for EEPROM (write-only) Serial identification clock (write-only) DATA Identification data (read/write) MEN Mikro Elektronik GmbH 20M036N00 E2 – 2009-07-27... -
Page 31: Maintenance
The voltage inputs of the DC/DC converters are protected by a fuse. This fuse is not intended to be exchanged by the customer. Your warranty for the M36N will cease if you exchange the fuse on your own. Please send your board to MEN for repair if a fuse blows. -
Page 32: Appendix
Serial Number MEN user documentation may describe several different models and/or hardware revisions of the M36N. You can find information on the article number, the board revision and the serial number on two labels attached to the board. • Article number: Gives the board’s family and model. This is also MEN’s order- ing number.
