- Page 1 20G233-00 E1 2017-10-20 G233 Diagnostic Board with Front Display 3U CompactPCI Serial User Manual...
-
Page 2: Table Of Contents
Starting up the G233 ........ - Page 3 Contents Figures Figure 1. Front interfaces ........... 10 Figure 2.
-
Page 4: About This Document
It also includes special details for application programmers. It describes the design, functions and connection of the product. The manual does not include detailed information on individual components (data sheets etc.). G233 product page with up-to-date information and downloads: www.men.de/products/g233/ History... - Page 5 About this Document Conventions Indicates important information or warnings concerning situations which could result in personal injury, or damage or destruction of the component. Indicates important information concerning electrostatic discharge which could result in damage or destruction of the component. Indicates important information or warnings concerning proper functionality of the product described in this document.
-
Page 6: Product Safety
Only store the product in its original ESD-protected packaging. Retain the original packaging in case you need to return the product to MEN for repair. 20G233-00 E1 2017-10-20 Page 6 ... -
Page 7: Legal Information
THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE OR USE. In no event shall MEN be liable for more than the contract price for the products in question. If buyer does not notify MEN in writing within the foregoing warranty period, MEN shall have no liability or obligation to buyer hereunder. - Page 8 Legal Information Conformity MEN products are no ready-made products for end users. They are tested according to the standards given in the Technical Data and thus enable you to achieve certification of the product according to the standards applicable in your field of application.
-
Page 9: Product Overview
The displayed information is fully customizable. Any status or fault message visible to the host CPU can be sent to the G233 and shown on the display or represented by the LEDs. -
Page 10: Product Architecture

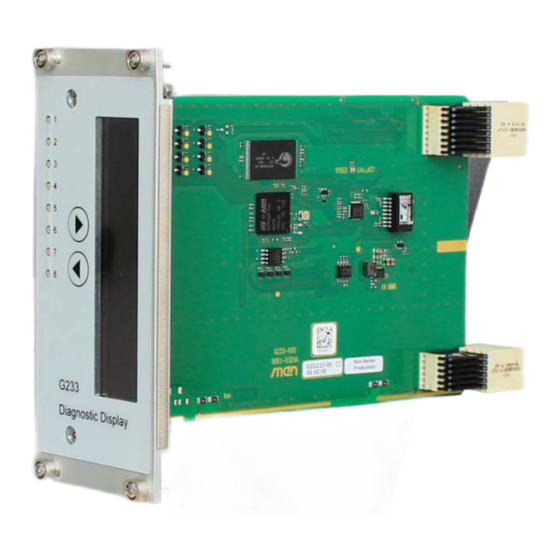

Product Overview Product Architecture 1.2.1 Interfaces Figure 1. Front interfaces Forward Button (B1) Backward Button (B2) G233 Diagnostic Display 20G233-00 E1 2017-10-20 Page 10 ... -
Page 11: Functions
Product Overview Figure 2. Board layout – top view Ethernet Status LEDs CompactPCI Serial connector P6 User LEDs SPEED Link_ACT CompactPCI Serial connector P1 1.2.2 Functions Figure 3. Functional diagram 8 LEDs OLED Display Fast Ethernet Control Buttons STM32 ARM Cortex‐M7 MCU SRAM USB 2.0 Power Flash F Front Rear 20G233-00 E1... -
Page 12: Technical Data
Product Overview Technical Data Display OLED Screen size: 3.12" Resolution: 256 x 64 pixels Background color: black Emitting color: blue STM32 ARM 32-bit Cortex-M7 Running embedded RTOS with web browser Memory Flash 4 MB SRAM ... - Page 13 Product Overview Temperature range (storage): -40°C to +85°C Cooling concept Air-cooled, airflow 1.0 m/s min. Humidity: EN 50155:2007 (+25/+55 °C, 90-100 %) Altitude: -300 m to +3000 m Shock: EN 61373:2010 Vibration: EN 61373:2010 Conformal coating ...
-
Page 14: Product Identification
Product Identification MEN documentation may describe several different models and design revisions of the G233. You can find the article number, design revision and serial number affixed to the G233. Article number: Indicates the product family and model. This is also MEN’s main ... -
Page 15: Getting Started
2.1.1 Integrating the Board into a System » Make sure that the slot in which you want to install the G233 supports an Ethernet connection on CompactPCI Serial connector P6. » Power down the system. -
Page 16: Starting Up The G233
2.1.4 Starting up the G233 » Press one of the user buttons. The G233 sends an initial HTTP request to the web server and the display is turned on. » To end the application manually (i.e.to turn off the display and stop communication with the server) go to the start window and press and hold the backward button B2. -
Page 17: Functional Description
Power Supply The G233 is supplied via the backplane. Web Browser The web browser running on the G233 supports: Display of content of the HTML file provided by the web server on the host CPU, no other sources possible HTML data input with support of a limited number of HTML tags. -
Page 18: Web Browser Application Behavior
Functional Description 3.2.1 Web Browser Application Behavior Figure 5. Web browser application behavior Start Application Initialisation Running Mode Display: OFF User Input? Running Mode Display: ON Timeoff Webserver Retry to reach Display reached? Webserver? error page Display output Start Timer 2 Handle User Input Running Mode Display: ON Reset Timer 2 Timer 2 User Input? expired? Start Timer 3 Issue Warning Timer 3 Reset Timer 3... -
Page 19: Structure Of Html Files
The G233 supports a number of special tags in the index.html to control the display and web browser application behavior. If these tags are present in the index.html, the G233 uses their attribute settings. If one or both of the tags are missing, the G233 uses the default values. -
Page 20: Display Configuration
For changing the timer settings, the G233 has to be turned off and started again. Each timeout can be deactivated by setting the time to 0. For example: <head>... -
Page 21: Supported Standard Html Tags
Functional Description 3.3.4 Supported Standard HTML Tags Table 3. HTML tags: supported standard tags Description Attributes Description Hyperlink href Target URL of hyperlink Bold text body Document body Line break form HTML form for action Specifies where to send the user input form data when a form is submitted... -
Page 22: Reset Behavior
Functional Description Reset Behavior The G233 supports the RST_IN signal on CompactPCI Serial connector P1. If the G233 receives a reset signal, the application stops the communication with the server and the display is turned off. Memory 3.5.1 Flash The G233 supports a Flash memory for storing fonts. -
Page 23: Led Control
Functional Description 3.6.1 LED Control The LEDs are controlled by the host CPU. The host CPU sends a message with the LED configuration using the following byte protocol: Select LED (1 Byte): 0b xxxx xxxx LED State (1 Byte): 0b xxxx xxxx ... -
Page 24: User Buttons
Functional Description User Buttons The functionality of the buttons depends on how long a button is pressed and where the marker is located in the HTML structure. Short and long pressing is defined as follows: • Short: shorter than t4=1s •... -
Page 25: Compactpci Serial
Functional Description CompactPCI Serial Refer to the CompactPCI Serial standard PICMG CPCI-S.0 for detailed information regarding the rear I/O connectors. CompactPCI Serial Specification PICMG CPCI-S.0 Revision 2.0: 2015; PCI Industrial Computers Manufacturers Group (PICMG) www.picmg.org Introduction to CompactPCI Serial on Wikipedia: ...
