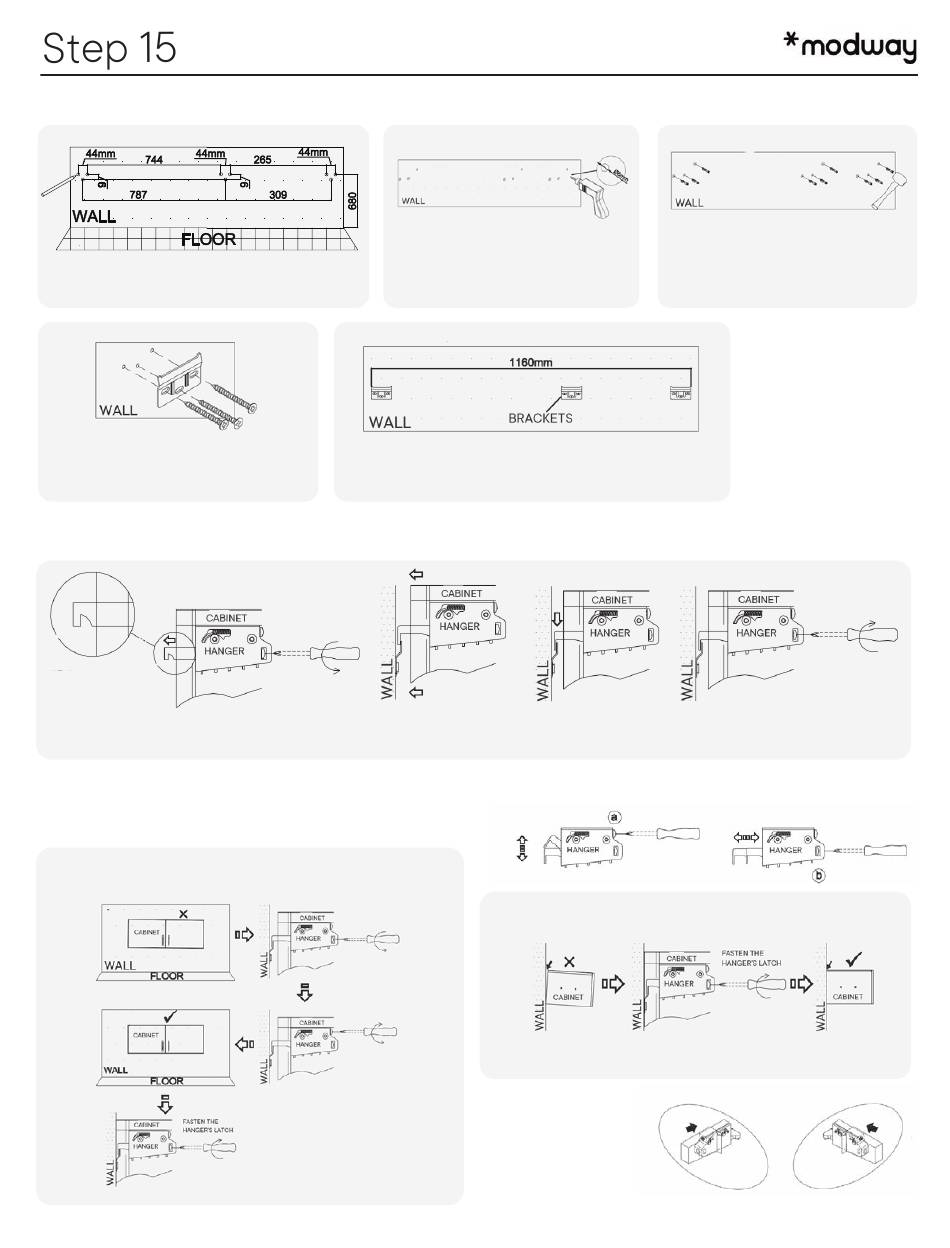

Wall Bracket Installation Guide
Measurement Guide
All units are in millimeters.
15.3 Install bracket with 3 screws.
Repeat with other brackets.
Cabinet-to-Wall Installation Guide
15.5 Set the hanger
latch as shown.
Is the cabinet not hanging quite right?
Here are some adjustment tips.
If your cabinet isn't level, follow this guide.
780-162MD8-0
14.1 Use a drill to make all pilot holes.
15.4 Ensure your bracket measurements are correct
before moving on to attaching the cabinet to the wall.
15.6 Hook cabinet
15.7 Push cabinet
onto latch.
down onto latch.
Adjustment Screw A
If your cabinet is pulling away from the wall, follow this guide.
15.9 Once the cabinet is
installed and adjusted,
install the latch covers.
15.2 Insert a Drywall Anchor
into each of the nine holes.
15.8 Fasten the hanger's
latch with the screw.
Adjustment Screw B
PAGE 8 OF 13
