Summary of Contents for Uctronics Raspberry Pi

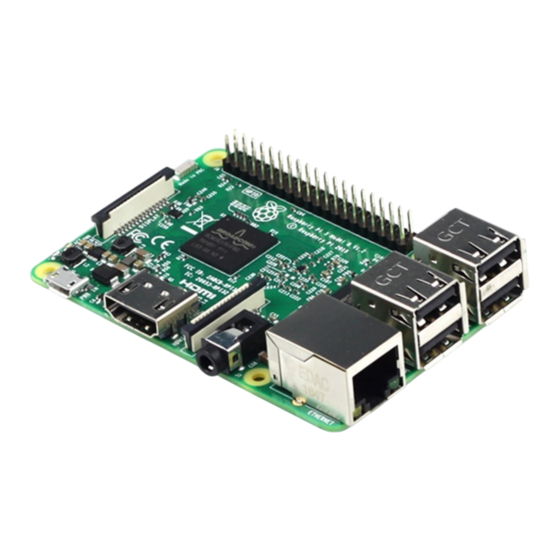

- Page 1 Raspberry Pi Quick-Start Guide Rev 1.0, Apr 2017...
-
Page 2: Table Of Contents
Table of Contents Raspberry Pi Start Kits ........................2 A. Generation Introduction: ....................... 2 B. Parking list: ..........................2 Assembly ............................. 3 A．16GB Micro SD Pre-Loaded with Raspbian ..............3 B. Power Supply Adapter Charger 5V 2.5A (US) ..............4 B. -
Page 3: Raspberry Pi Start Kits
1. Raspberry Pi Start Kits A. Generation Introduction: The Raspberry Pi 3 Starter Kit is a great way to gain a solid introduction to the small, credit- card sized computer. The starter kit makes the Raspberry Pi intuitive and easy to learn. -
Page 4: Assembly
2. Assembly A．16GB Micro SD Pre-Loaded with Raspbian This Micro SD Card Bundle for the Raspberry Pi consists of a SanDisk Class 10 Micro SD card pre-loaded with the Official Raspberry Pi Raspbian. Specification: ➢ Capacity: 16GB ➢ Weight: 0.2g ➢... -
Page 5: Power Supply Adapter Charger 5V 2.5A (Us)
These have a standard USB ‘A’ connector for the output so you can power your Arduino, Raspberry Pi, etc. through a USB cable. Any device that uses a USB cable for charging or power can be powered with this supply. -
Page 6: Usb Cable With On/Off Switch
B. USB cable with ON/OFF switch This Raspberry Pi Micro USB Cable with ON / OFF Switch is specifically designed for Raspberry Pi. Just press the button to turn your Pi on or off, no need to pull the cable to restart or reboot your Raspberry Pi which prevents the Raspberry Pi's Micro USB connector from frequent pulling and inserting the USB cable. -
Page 7: Abs Protective Case
C. ABS Protective Case It has slim openings for all your cables, an easy-to-remove beveled slot for your Micro SD card, slots for both your Pi Camera and upcoming Display, and a space for your GPIO cable to extend out from the Pi. Two-piece injection- ABS Case that snaps together which is easy to stall. -
Page 8: Heatsink Kit With Thermal Pad
The Raspberry Pi Heat Sink Kit consists of three high quality aluminum heat sinks, each selected to match the size of the main heat out-put components on the Raspberry Pi board. The heatsinks are designed to fit on top of the Broadcom and Ethernet SOC's which will Extend the life of your Raspberry Pi and reduce the risk of hardware failure. -
Page 9: Installation Diagram
3. Installation diagram Figure1. Caution: The internal Wi-Fi antenna is fragile, be careful and please don't press with too much strength when installing. Figure2... - Page 10 Figure3 Figure4.
-
Page 11: Getting Started
3. Connect a USB keyboard and mouse to the USB ports. 4. Connect a HDMI monitor or TV to the Raspberry Pi using a HDMI cable. Ensure your monitor or TV is turned on and that you have selected the correct input. -
Page 12: Raspbian System
B. Raspbian System Raspbian is the Foundation’s official supported operating system. Raspbian comes pre- installed with plenty of software for education, programming and general use. It has Python, Scratch, Sonic Pi, Java, Mathematica and more. Raspbian desktop overiew Programming menu... - Page 13 Office menu Internet menu...
- Page 14 Games menu Accessories menu...
- Page 15 Help menu Preferences menu...
- Page 16 Run... menu Shutdown... menu...
-
Page 17: Guide To Connecting Wifi
C. Guide to connecting WIFI If you want to connect your Raspberry Pi to the internet or local network then you will need to follow these steps: 1. WiFi connections can be made via the network icon at the right-hand end of the menu bar.
