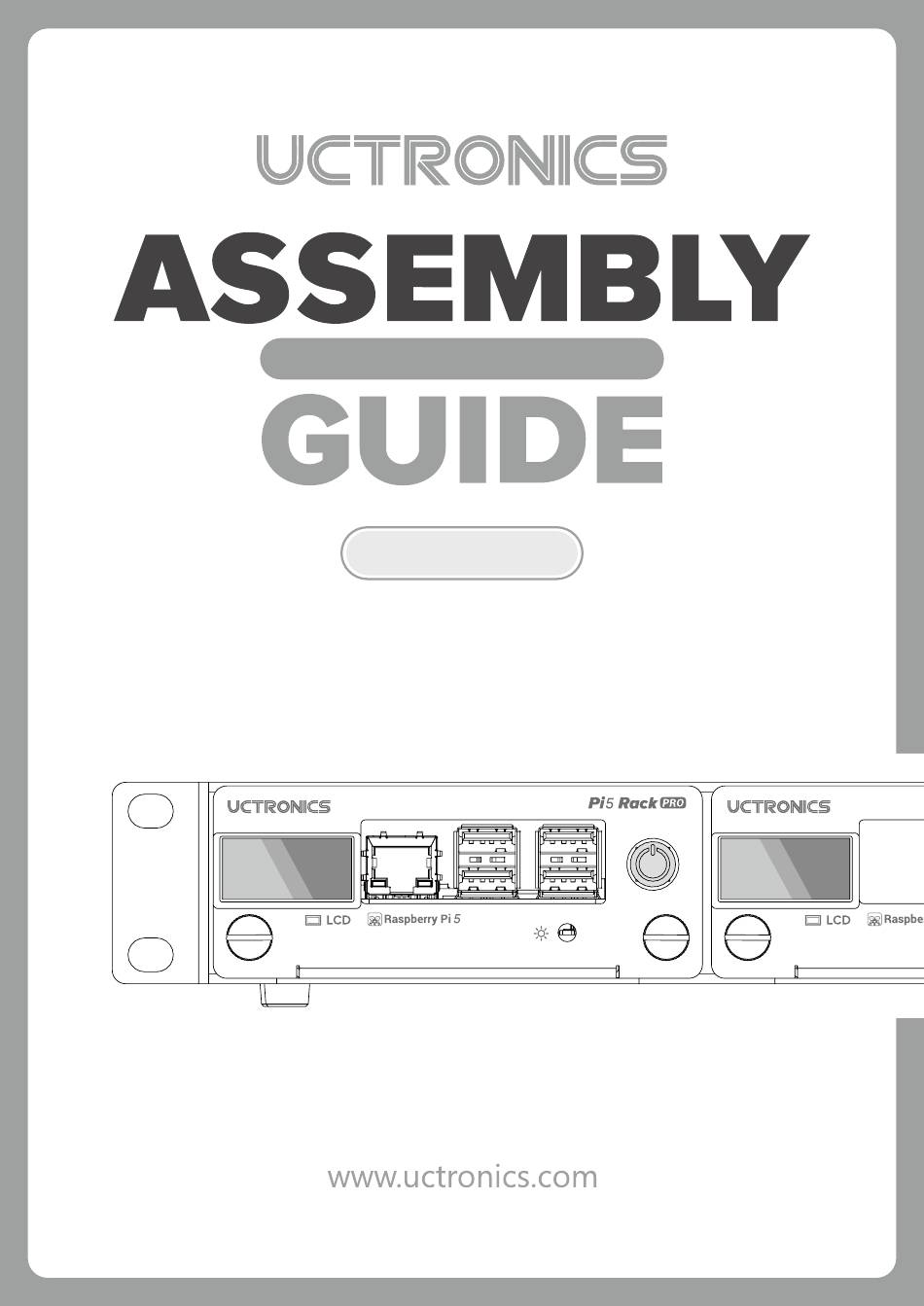

- Page 1 19" 1U Rack Pro for RPi 5 SKU: RM0013...
- Page 2 OLED USAGE RM0013-0.96" LCD USAGE 1. Burn image to NVMe https://github.com/UCTRONICS/SKU_RM0004/blob/main/data/NVMe_User _Guide.md 2. Deployment service --Clone SKU_RM0004 library git clone https://github.com/UCTRONICS/SKU_RM0004.git --Compile cd SKU_RM0004 make --Add automatic start script ./deployment_service.sh --reboot your system sudo reboot More information, please check it in this link: https://github.com/UCTRONICS/SKU_RM0004?tab=readme-ov-file#add...
-
Page 3: Package Contents
PACKAGE CONTENTS Top panel×1 Bottom panel ×1 RPi Mounting bracket with Side rack bracket ×2 Power button×4 LCD display × 4 M3 loose-off hand screw ×4 M6*16 rack NVME hat×4 LCD sticker × 4 Rubber pad × 4 screw×4 M3*5 countersunk standoffs and screws M2.5*5 Round-head FFC cable ×4... -
Page 4: Exploded View
EXPLODED VIEW M3*5 Countersunk Screws Rubber Pad M3*5 Countersunk Screws M3*5 Countersunk Screws... - Page 5 EXPLODED VIEW M2.5*5 NVMe SSD Round-head Screws standoffs and screws for NVME FFC cable...
-
Page 6: Installation
INSTALLATION Attach the top panel to the bottom panel... - Page 7 INSTALLATION M3*5 Countersunk Screws Fix the metal housing with M3*5 screws...
- Page 8 INSTALLATION M3*5 Countersunk Screws Use M3*5 countersunk screws to fix the side bracket to the housing.
- Page 9 INSTALLATION M2.5*5 Round-head Screws M2.5*5 Round-head Screws Fix the LCD display and power button with M2.5*5 round-head screws, then attach the stickers.
- Page 10 INSTALLATION standoffs and screws for NVME M2.5*5 Round-head Screws...
- Page 11 INSTALLATION FFC cable NOTE: Please plug the FFC cable gently into the PCle connectors on both Raspberry Pi and the NVME hat. The silver contacts on this FFC should face the silver contacts on the PCle connector.
- Page 12 INSTALLATION OLED Cable Power Button Cable...
- Page 13 INSTALLATION NOTE: Please pay attention to the Raspberry Pi GPIO tightly against the yellow spring pin(4 on the left side) on the NVME hat, otherwise, it may cause no power supply.
- Page 14 INSTALLATION NOTE: Please pay attention to the Raspberry Pi GPIO tightly against the yellow spring pin(2 on the right side) on the NVME hat, otherwise, it may cause no power supply.
- Page 15 INSTALLATION Push the 4 installed modules into the enclosure and simply tighten the captive loose-o screws to complete the installation.
- Page 16 CONTACT US If any problem, feel free to contact us. Website: www.uctronics.com Email: support@uctronics.com metal...
