IPT Series Manual NVT Needle Valve
Service Instructions

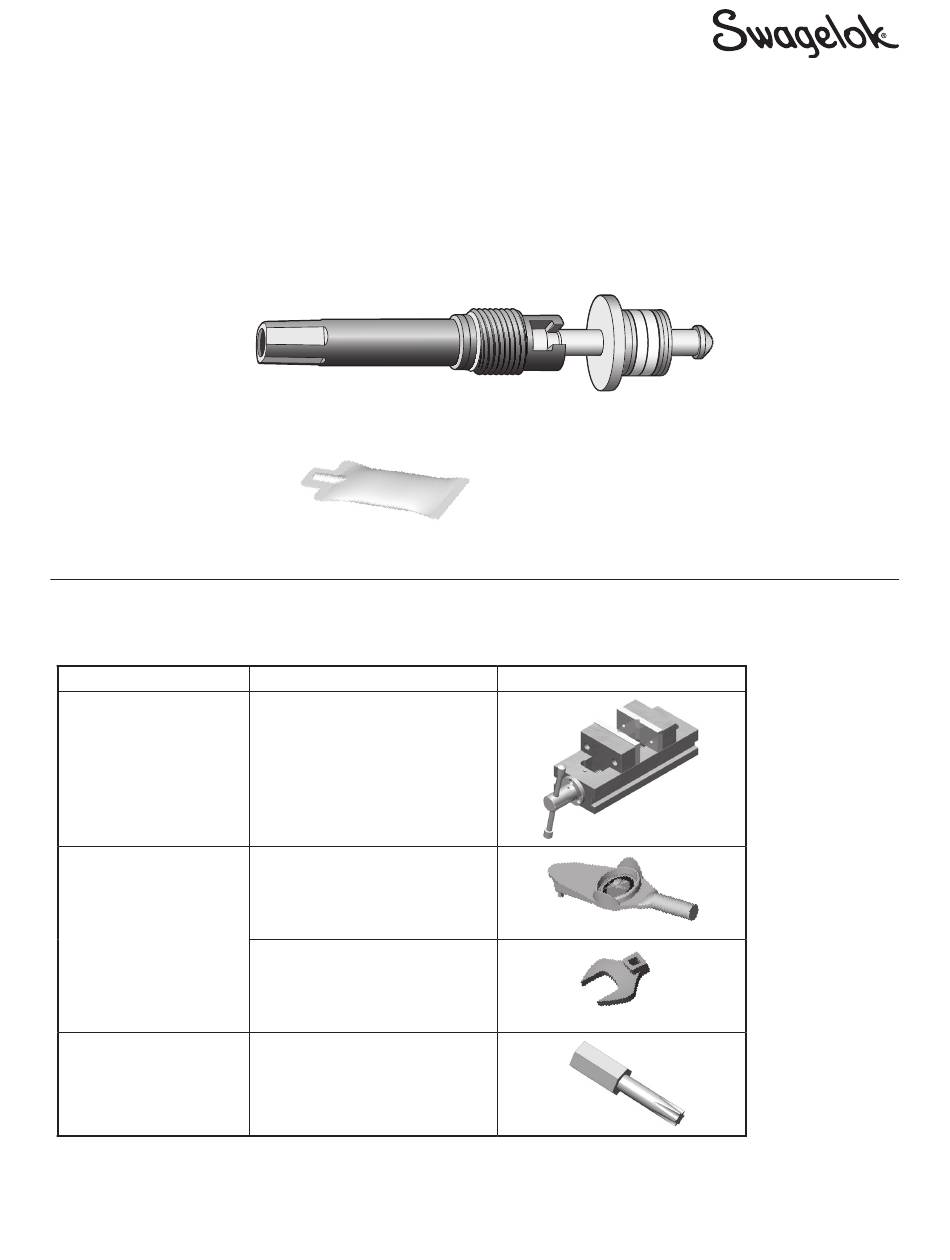

NVT Kit Contents
This kit contains the stem assembly shown below.
NOTE: The image below may vary from the actual stem assembly. Compare the kit contents with
the original stem assembly in the valve as well as the packing sequence found on page 2.
Moly-lithium grease is required for repair, but is not included with the kit.
Stem Assembly
(1) Lubricant Packets
Tools Required
Part
Valve body
Bonnet
Socket head cap screw
Size
capable of 75 ft·lb (101 N·m)
5/8 in.
Tool
Bench vise
Torque wrench
Crow's foot adapter
T20 Torx
®
bit
