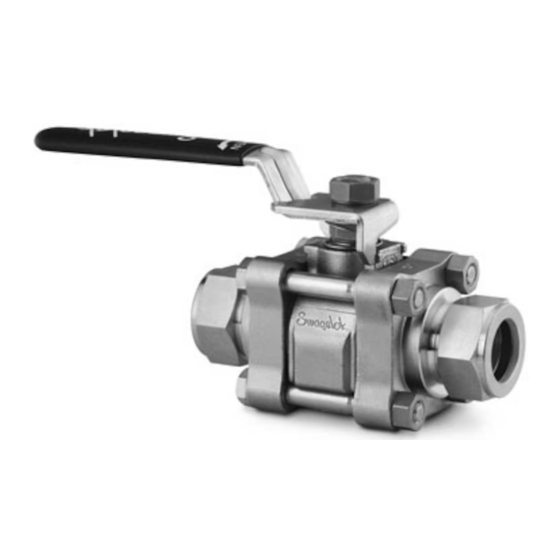

Swagelok S60P Steam Series Maintenance Instructions

Swagelok S60P Steam Series Maintenance Instructions

Ball valve

Advertisement

Quick Links

Kit contents are
bold and underlined
Grounding spring
Body bolts
Flange seal
Flange
Seat subassembly
Support ring
➀ S62P series kits do not contain stop plate and
contain (2) stem springs.
➁ Valves with a PEEK or Halar stem bearing
contain (1) stem bearing.
Stem nut
Handle
Stem nut
Stem spring
Stem spring
Gland
Packing support
Top packing
Bottom packing
Body
Support ring
Seat subassembly
Ball
Stem bearing
Flange seal
Stem
Lubricant(s)
Valve
Series
Body bolts
Flange
Tools Required
Maintenance Instructions
For S60P Steam Series Ball Valve
Part
Tool
Size
Crow's foot
WARNING
Stem nut
7/16
Before servicing any installed valve, you
must
• depressurize system
Open-end wrench
Stem nut
7/16
• cycle valve
WARNING
Residual material may be left in the valve
Body bolt
5/16
and system.
Hex Socket
CAUTION
• DO NOT remove flange seals from the
Body bolt
5/16
package until ready for use.
Note: Refer to exploded view while following
Torque wrench
the maintenance instructions.
Stem nut
Capable of
600 in.·lb
(67.8 N·m)
Body bolt
Discard
Body Bolt Torque Chart
Torque Value
1.
in.·lb
(N·m)
1st
2nd
3rd
4th
5th
6th
pass
pass
pass
pass
pass
pass
5.0
10
20
40
40
S62P
(
(
(0.57)
(1.1)
(2.3)
4.5)
4.5)
10
20
40
100
150
150
S63P
(1.1)
(2.3)
(
4.5)
(11.3)
(17.0)
(17.0)
25
50
100
300
300
S65P
(2.8)
(5.7)
(11.3)
(33.9)
(33.9)
35
75
150
400
400
S67P
)
(4.0)
(8.5
(17.0)
(45.2)
(45.2)
40
100
200
600
600
S68P
(
4.5)
(11.3)
(22.6)
(67.8)
(67.8)
Parts Lubrication Details
Parts
Lubricants
Stem bearing
Center body
(packing bore area)
MS-LT-WL8-1
Bottom packing
Top packing
Remove all body
Seat subassembly
bolts.
Flange seal
MS-LT-WL7
(for S63P, S67P and S68P)
Body bolt
MS-LT-NNS-1
2.
center
body
3.
Clean
Lubricate
× 2
4.
Loosen all body
Use handle to
bolts.
rotate the stem.
Remove ball from
the center body.
Note :To replace seals only, skip to step 17
and continue.
www.swagelok.com
Swagelok—TM Swagelok Company
©1988 — 2016 Swagelok Company
November 2016, Rev L
MS-INS-S60P-1
