Swagelok S60 Series Mounting Instructions

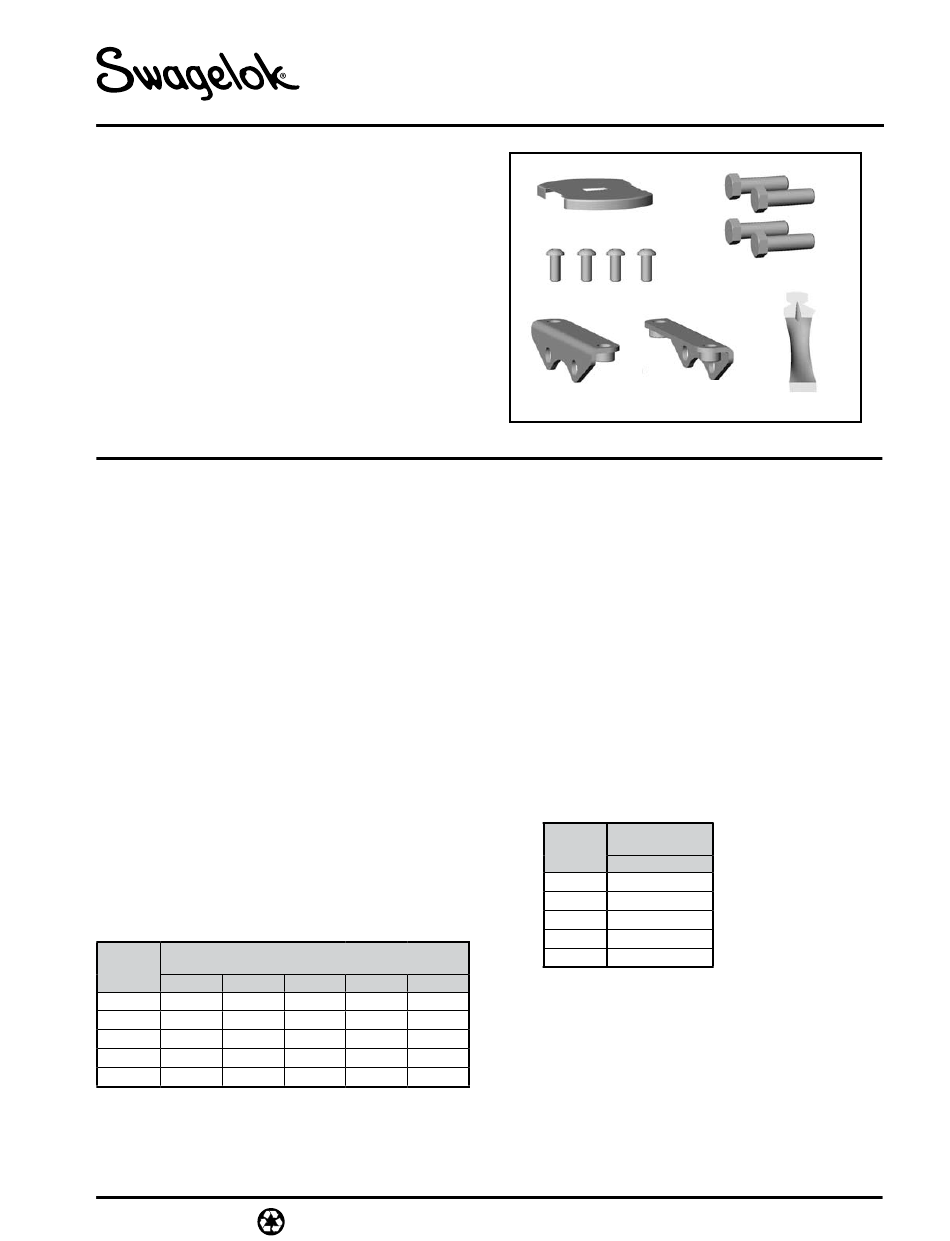

Kit Contents
• Panel Mount Brackets (2)
• Cap Screws (4)
• Bolts (4)
• Panel Mount Cover (except 62 series with oval handle)
• Lubricant with MSDS sheet
• Assembly Instructions
Maximum Panel Thickness
62 series 0.188 in.
All other 60 series 0.25 in.
Assembly Instructions
Refer to the illustrations on page 2 for a 62 series and a
65 series steam ball valve.
1. Loosen and remove the top four body bolts from the
valve. Do not loosen the remaining (4) bolts.
2. Loosen and remove stem nut, stem spring, name-
plate, stop plate, handle, and grounding spring
from valve stem.
3. Position one of the panel mount brackets against
the flange so the more closely spaced pair of holes
lines up with the holes in the flange.
4. Lubricate the (4) bolts with the lubricant provided.
Install (2) bolts through the holes in the bracket,
flange, and into the body.
5. Position the other panel mount bracket against the
other flange so the more closely spaced pair of holes
lines up with the holes in the flange. Note: The tab
with the threaded hole(s) should point away from the
valve stem.
6. Install the other (2) bolts through the holes in the
bracket, flange, and into the body. Tighten the bolts
(4) according to the table below.
Valve
Series 1st Pass 2nd Pass
S62 5.0 10
(0.57) (1.1)
A63 / S63 10 20
(1.1) (2.3)
A65 / S65 25 50
(2.8) (5.7)
A67 / S67 35 75
(4.0) (8.5)
A68 / S68 40 100
(4.5) (11.3)
MS-INS-S60PMK
Revision 2 09-10
A60 Fire / S60 Steam Series Ball Valves
(4.77 mm)
(6.35 mm)
Torque Values
in.·lb (N·m)
3rd Pass 4th Pass 5th Pass
20 40 40
(2.3) (4.5) (4.5)
40 150 150
(4.5) (17.0) (17.0)
100 300 300
(11.3) (33.9) (33.9)
150 400 400
(17.0) (45.2) (45.2)
200 600 600
(22.6) (67.8) (67.8)
Panel Mount Instructions
Panel Mount Cover
Cap Screws (4)
Panel Mount Brackets (2)
7. Drill mounting holes in panel. See the diagram and
table on page 3 and / or use template on
page 4.
Note: For 62 series in a horizontal piping system,
turn template 90° to drill holes.
8. Line up the panel mounting holes with the mount-
ing bracket tabs. Use the cap screws to fasten the
valve assembly to the panel.
9. Reinstall the grounding spring, handle, and stop
plate. Install cover plate.
Note: 62 series uses a cover plate with lever style
handle only.
10. Reinstall the stem spring, and stem nut. Tighten
the stem nut to the value shown below.
Note: 62 series does not use a stem spring.
Torque Values
in.·lb (N·m)
Valve
Series 1st Pass
S62 25
(2.8)
A63 / S63 50
(5.7)
A65 / S65 100
(11.3)
A67 / S67 150
(17.0)
A68 / S68 150
(17.0)
Bolts (4)
Lubricant
