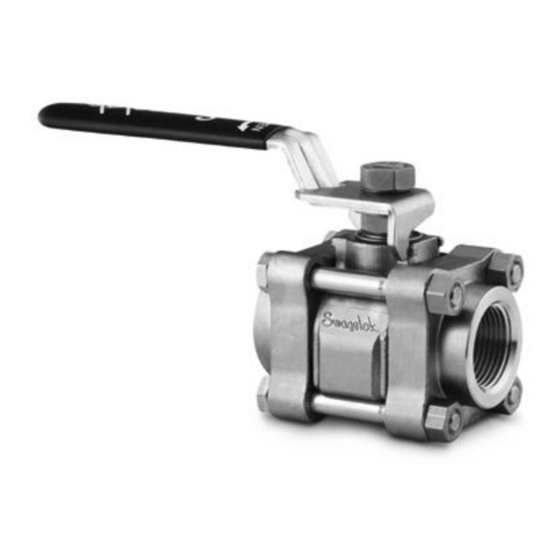

Swagelok General Purpose Ball Valves

With a unique coned-disc spring-loaded seat, live-loaded, two-piece

chevron stem packing, and 3-piece swing-out design, the Swagelok® 60

series ball valves are designed for reliability and low maintenance.

This quarter-turn ball valve is available in 2- and 3-way configurations as

well as a variety of materials including stainless steel, carbon steel,

brass and special alloys.

Variety of end connections in 1/8 to 2 in. and 6 to 25 mm sizes

Temperature ratings from -65 to 850°F (-53 to 454°C)

Standard working pressure up to 2200 psig (151 bar) with an option to

increase to 3000 psig (206 bar)

Wide selection of optional seat materials ( see chart below )

Vent porting

SC-11 cleaning available
