AZEK TimberTech DRINK RAIL Installation Manual page 9

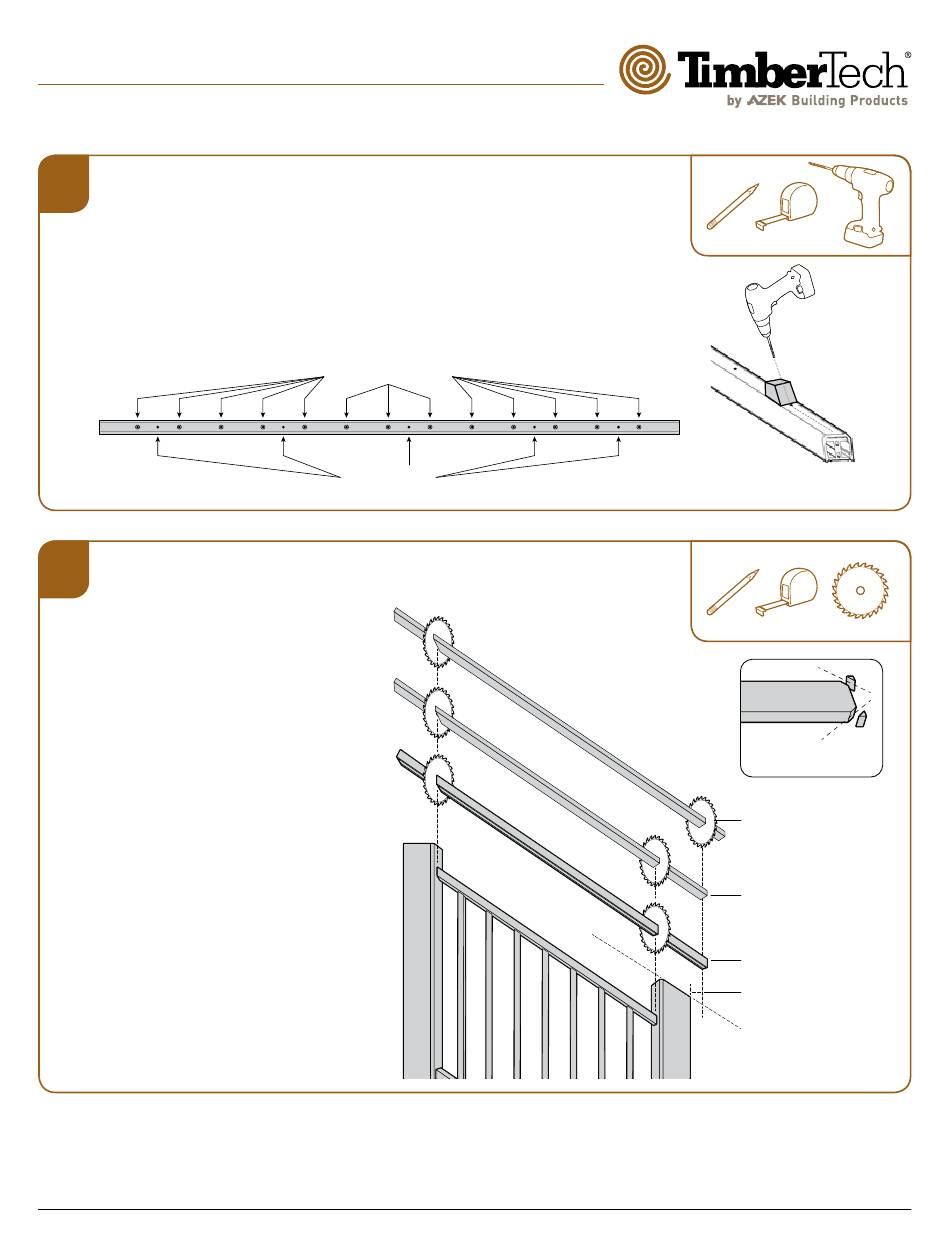

INSTALLING DRINK RAIL – STAIR PANELS
FOR CLASSIC COMPOSITE SERIES RAILING
1
PREPARE UPPER SUPPORT RAIL
Measure, mark and drill 3/16" diameter holes down through the upper support rail
at 15" on-center intervals
and second baluster at each end of the rail. These holes will be used to run anchoring
screws into the bottom of the deck board. Holes should be drilled to match the angle
of the stairs. A scrap piece of wood cut to stair angle may help.
2
CUT UNIVERSAL RAIL
AND DECK BOARD
Measure, mark and cut the 2nd
Universal Rail (purchased separately)
and deck board to length
Both ends need to be cut to match the
angle of the Top Support Rail.
For Between-the-Post applications,
trim both ends of deck board for a clean
finish (Dia. #2B). Place the Universal
Rail over the top support rail between
the post sleeves.
• For Over-the-Post applications,
proceed to Step 3.
• For Between-the-Post applications,
skip to Step 4.
(Dia. #1A). There must be a hole drilled between the first
Baluster Screws
3/16" Holes
(spaced 15" on-center or less)
(Dia. #2A).
Page 9
(Dia. #1B).
Dia. #1A
Dia. #2A Dia. #2B
Pre-drill
3/16"
Scrap piece of
wood cut to
stair angle
Universal
Rail
Upper
Support
Dia. #1B
Rail
Trim deck board corners
for a clean finish.
Drink Rail (deck board)
Over-the-Posts Application –
butt up to top post, and hang over
bottom post approximately 1½".
Drink Rail (deck board)
Between-the-Posts Application –
measure between posts.
Universal Rail –
measure between posts
1½"
For Over-the-Post applications,
cut post sleeve at same angle
and height as universal rail.
