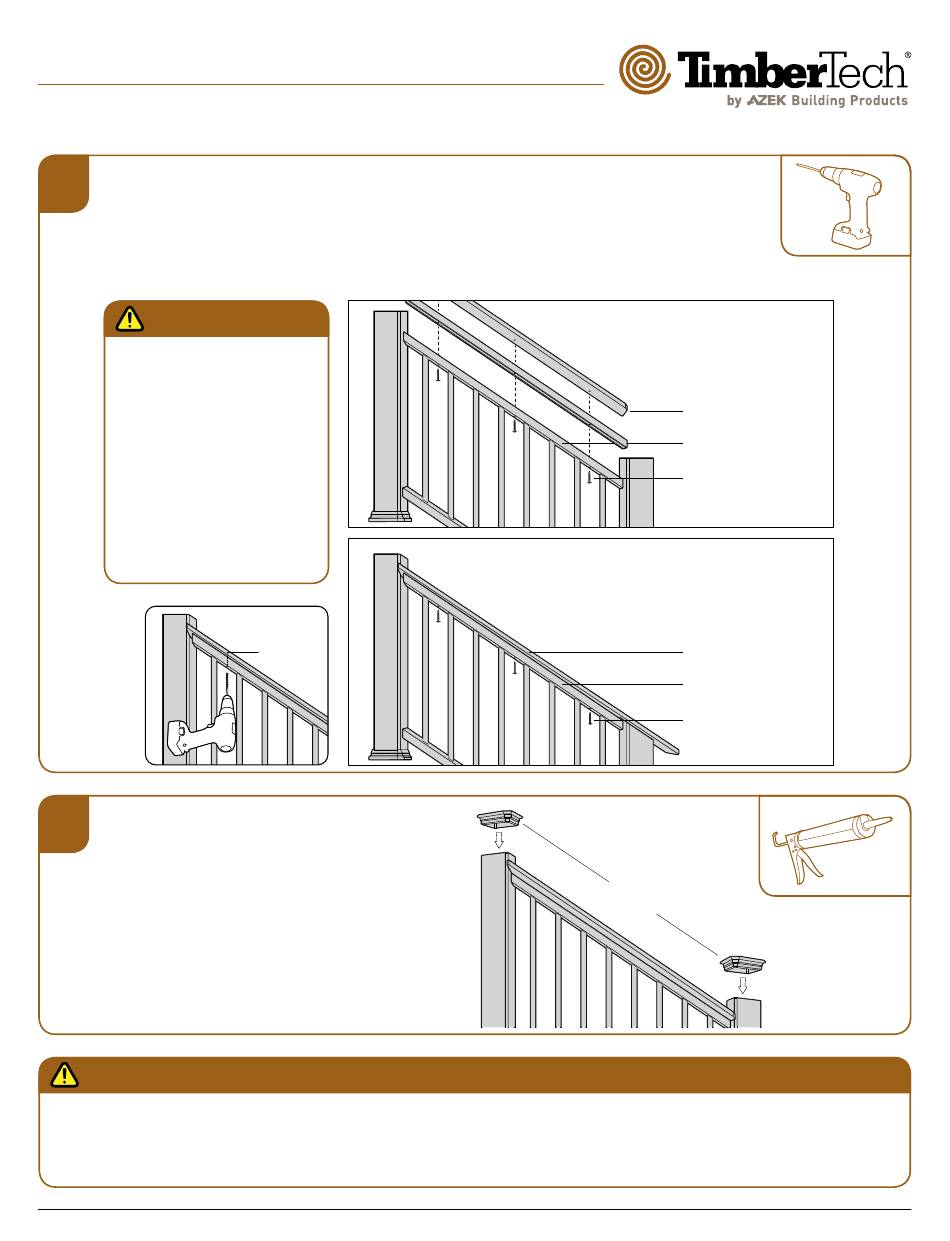

AZEK TimberTech DRINK RAIL Installation Manual page 11

INSTALLING DRINK RAIL – STAIR PANELS
FOR CLASSIC COMPOSITE SERIES RAILING
4
FASTEN DECK BOARD TO UNIVERSAL RAIL
Place the Deck Board on top and centered over the Universal Rail. For both Between-the-Post
(Dia #4A) and Over-the-Post and Applications
to Upper Support Rail using the 3/16" holes that were drilled in Step 1, use #8 3" Stainless Steel
Pan Head Screws (included with Universal Rail), taking care to drive them in parallel to balusters.
IMPORTANT NOTE:
When installing cWPC decking
(TimberTech PRO and EDGE),
anchoring holes must be pre-
drilled thru the rail assembly
and into the deck board. Using
the 3/16" holes that were
drilled at 15" intervals as guides,
drill a 1/8" diameter holes ¾"
into the bottom of the deck
board. Care must be taken not
to drill through the top of the
deck plank. (Dia. #4C)
Dia. #4C
5
ATTACH POST CAPS
(BETWEEN-THE-POST APPLICATIONS)
Attach Post caps using exterior grade caulk/
adhesive applied to the inside corners of the post
caps (Dia. #5).
IMPORTANT NOTE:
The diagrams and instructions in this brochure are for illustration purposes only and are not meant to replace a licensed professional. Any construction
or use of the product must be in accordance with all local zoning and/or building codes. The consumer assumes all risks and liability associated with
the construction or use of this product. The consumer or contractor should take all necessary steps to ensure the safety of everyone involved in the
project, including, but not limited to, wearing the appropriate safety equipment. Except as contained in the written limited warranty, The AZEK
Company does not provide any other warranty, either express or implied, and shall not be liable for any damages, including consequential damages.
(Dia
Drill ¾" into,
but not through
deck board.
#4B), secure Deck Board and Universal Rail
Post Caps
Attached with exterior
grade caulk
Page 11
Dia. #4A
Drink Rail (deck board)
Between-the-Posts Application
Universal Rail
(purchased separately)
#8 3" Stainless Steel
Pan Head Screws
(included with Universal Rail)
Dia. #4B
Drink Rail (deck board)
Over-the-Posts Application
Universal Rail
(purchased separately)
#8 3" Stainless Steel
Pan Head Screws
(included with Universal Rail)
Dia. #5
