Important Notes; Tools Required - AZEK TimberTech DRINK RAIL Installation Manual

INSTALLING DRINK RAIL
FOR CLASSIC COMPOSITE SERIES RAILING
Support Rail
Mounting Brackets
Universal Rail
(placed on Support Rail)
Support Block
COMPONENTS NEEDED FOR INSTALLING ONE
SECTION OF DRINK RAIL FOR COMPOSITE
COMPONENT
1 - Universal Rail
(5) #8 x 2" screws for 6' rail,
Universal Rail
(7) screws for 8' rail, and
(8) screws for 10' rail
1 - Drink Rail (deck board) not included
Drink Rail
- must be purchased separately
Visit www.timbertech.com/installation to view installation
videos.
Consult your local building codes for guard and handrail
requirements.

TOOLS REQUIRED:

• Miter Saw
• Tape Measure
• Cordless Drill
• T20 Drive Bit /
Phillips Bit
Foot Block
INCLUDES
• 7/64" Drill Bit
• 3/16" Drill Bit
• ¼" Drill Bit
• Caulk Gun

IMPORTANT NOTES:

TimberTech Universal Rails are available in 10', 8' and 6'
lengths.
For Deck boards, visit:
https://www.timbertech.com/products/decking
The Drink Rail system works with all full profile, square-
shoulder deck boards, but NOT with scalloped boards (i.e.
Terrain, Prime, Prime+ or ReliaBoard).
DECK BOARDS
YES
FULL PROFILE
IMPORTANT NOTES:
It is not recommended to use narrow width (3.5") deck
boards in Over-the-Post applications.
Do not use wide width (7.5") deck boards in Between-the-
Post applications.
Page 3

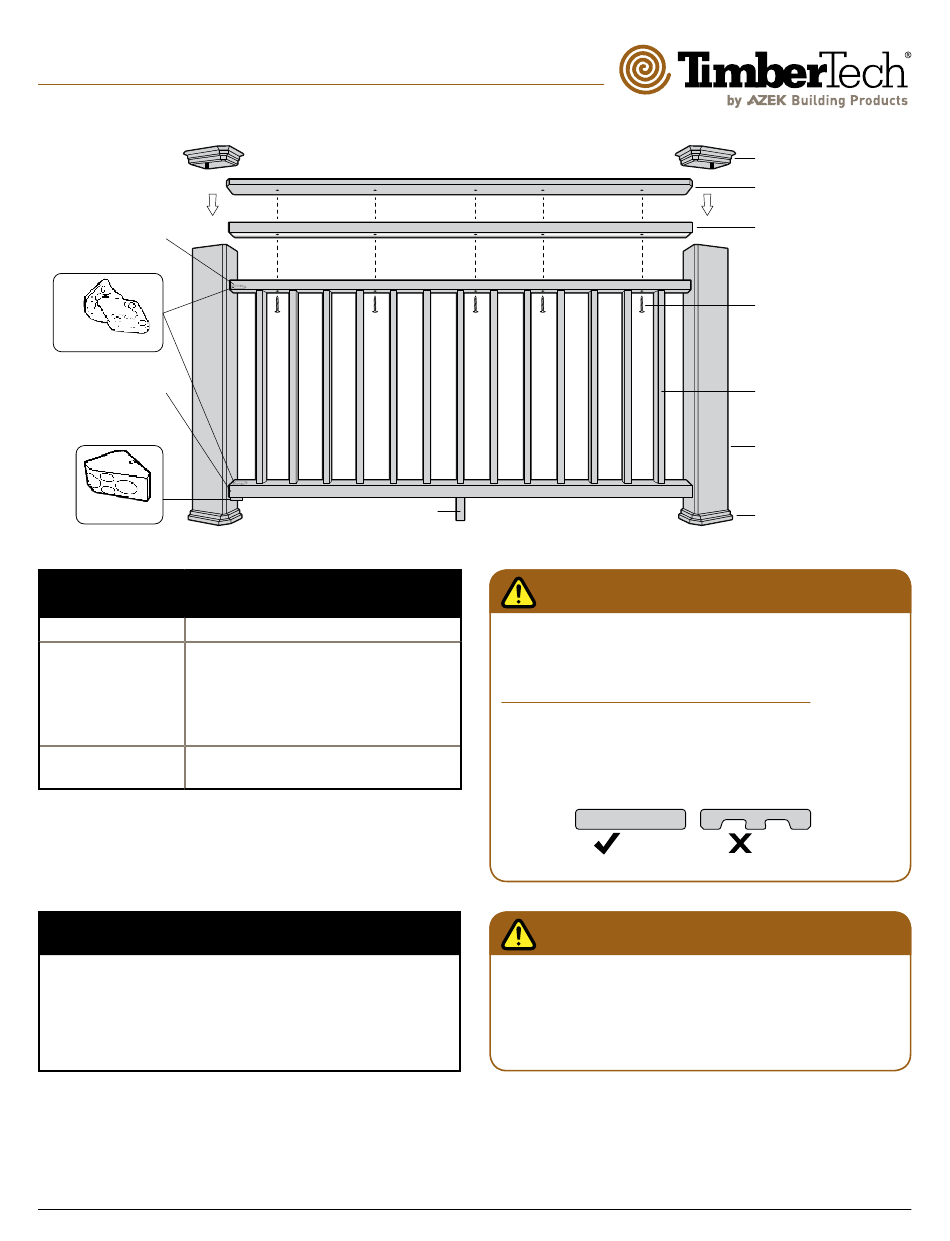

Post Cap
Drink Rail (deck board)
Universal Rail
(purchased separately)
#8 2" Stainless Steel
Pan Head Screws
(included with Universal Rail)
Balusters
Post Sleeve
Post Skirt
NO
SCALLOPED
