Installation Guide
Stealth Readers
VERIDT INC · Middleton, WI 53562
900W2026
900W2027
900W2030
900W2036
900W2037
Verify Identify
#121
1
2022
Advertisement
Table of Contents
Related Manuals for Veridt 900W2026
Summary of Contents for Veridt 900W2026
- Page 1 900W2037 ©Copyright 2022 Veridt, Inc. All rights reserved. Specifications subject to change without notice. Veridt, Stealth, and MultiMode are trademarks of Veridt. All other brands or product names are the trademarks or registered trademarks of their respective holders. www.veridt.com VERIDT INC · Middleton, WI 53562...
-
Page 2: Table Of Contents
Viscount Wiegand ..................12 Viscount FICAM ................... 12 Communications interface: for HID PAM ........13 Software House Active Mode Change ..........13 Monitor Dynamics FICAM ............... 13 Stealth Standard Pigtail Wiring ............13 www.veridt.com VERIDT INC · Middleton, WI 53562 2022... - Page 3 Stealth Standard Serial RS-485 ............14 OSDP Wiring of Tamper Switch ..............14 High Assurance Configuration with EWAC .......... 15 Veridt Encrypted Wiegand and Communications (EWAC) Interface 15 Tamper Switch ....................15 Communications Interface ..............15 IP Configuration for EWAC Lantronix ..........16 Reader Troubleshooting ................
-
Page 4: Safety Precautions
WARNING This unit contains no user-replaceable parts. Do not attempt to open the unit or make repairs to the unit. Breaking a seal will void the warranty. CAUTION www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 5: Introduction To Stealth Series

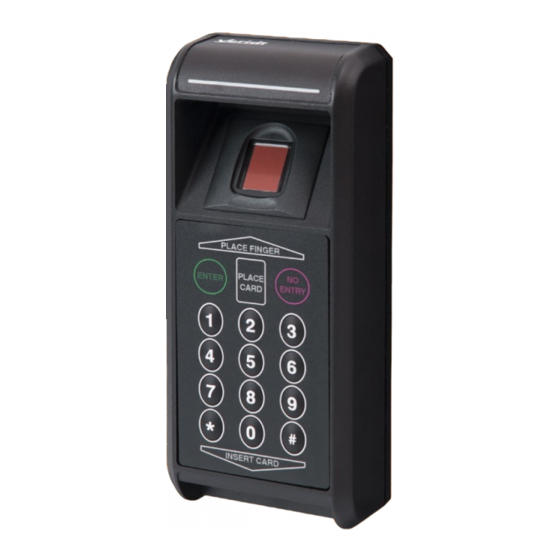

Figure 1 • Stealth Series General Installation Information Veridt Stealth series readers are designed to be operated as a Class 1 access control system component for use without requirements to withstand a destructive attack. A Tamper Indicator switch is available to provide a supervisory indication to the PACS in the event the reader is removed from its installed location. -
Page 6: Input Power
Power Requirements Veridt Stealth series reader terminals operate at 12 VDC 2 V. Operation above 14 VDC may damage the reader; operation below 10 VDC may cause intermittent or complete loss of reader operation. -
Page 7: Mounting
The installation of these readers, and the materials used for installation, should be in accordance with the location requirements and the wiring methods defined by the National Electrical Code for Class 2 system. www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 8: Access Control Cable
Low Voltage Power Drop For both AC and DC low voltage; generally, the maximum acceptable voltage drop is 10%. The cable lengths in Table 2 take into consideration this voltage drop. www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 9: Ewac To Power Supply & Network
Input 1 Orange Tamper Switch Green Wiegand D0 Blue RS-485 Data - (4-wire TX-) Purple RS-485 RX- (4 wire) Pigtail Wire Color & Signals Figure 5 • Reader Pins, Wire Colors, and Signals www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 10: Pacs Wiring Diagrams
Gallagher Command Centre Installation DVD in the Documentation folder. Reader Signal Wire Color Mercury 4502 Label Ground Black Genetec OSDP RS-485 - Blue RS-485 + Yellow +12V DC www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 11: Genetec Wiegand
+12V DC See OSDP Wiring of Tamper Switch on page 15 Stealth Reader Wire Color Mercury 4502 Label Ground Black Lenel Wiegand +12V DC Access Granted Brown Wiegand 0 Green Wiegand 1 White www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 12: Software House Ultra Osdp
+12V DC Power Access Granted Brown Wiegand 0 Green Wiegand 1 White Stealth Reader Wire Color Bridge Label Black Viscount FICAM +12V DC Power Access Granted RS-485 - Blue RS-485 + Yellow Black www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 13: Communications Interface: For Hid Pam
+12V DC Wire Color Signal Black Ground Stealth Standard Pigtail Wiring Blue RS-485 - Yellow RS-485 + Green Wiegand 0 White Wiegand 1 Orange Tamper Switch Brown Access Granted + 12V DC www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 14: Standard Wiegand
For OSDP applications, connect the Tamper Switch signal, orange wire Pin 9, to the INPUT 1 signal, Gray wire on pin 8. DO NOT connect the Tamper switch signal to a control panel. The state of this switch is reported as a response to an osdp_LSTAT command www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 15: High Assurance Configuration With Ewac
#121 Stealth Readers High Assurance Configuration with EWAC Veridt Encrypted Wiegand and Communications (EWAC) Interface The EWAC interface provides a bi-directional RS-485 interface to the PACS panel and a network interface that can allow a secure server to control door access. Install the EWAC interface in or near the PACS panel. -
Page 16: Ip Configuration For Ewac Lantronix
4. When the login dialog displays, enter your Username and Password. 5. The default Username is admin. The default Password is PASS. 6. The right panel that displays should resemble the one shown below Figure 8 • IP Configuration www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 17: Figure 9 • Ip For Host Address
Figure 9 • IP for Host Address 10. Select the Host 1 IP address and change it to the IP address of the HID pivCLASS PACS Administration Figure 10 • Lantroix Device Installer Opening Window www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 18: Reader Troubleshooting
13. Refer to the HID documentation when configuring the pivCLASS PACS Administration software to complete the System configuration Reader Troubleshooting Please have the following information available before calling Veridt Table 3 • Reader Information Serial Number Date of Manufacture (Month/Year) -
Page 19: Multi-Technology Readers
: (1) cet appareil ne doit pas provoquer d’interferences et (2) cet appareil doit accepter toute interference, y compris les interferences susceptibles de provoquer un fonctionnement indesirable. www.veridt.com VERIDT INC · Middleton, WI 53562 2022... -
Page 20: Document Control
