- Page 1 Stealth Series Installation Guide For Veridt Readers: Base Part Numbers 900W2026 900W2037 900W2030 900W2036 900W2037...
- Page 2 Veridt reserves the right to make changes to this publication and to the products, which are subject to change without notice. References in this publication to information or products protected by copyright or patent do not convey any license under the rights of Veridt or others.
-
Page 3: Table Of Contents
Table of Contents Safety Precautions ............................... 5 Introduction to Stealth Series ............................. 6 General Installation Information ..........................6 Input Power ................................6 Environment ................................7 Maintenance ................................7 Operation .................................. 7 Pre-Installation ................................7 ... - Page 4 Stealth Standard Serial RS-485 ..........................17 OSDP Wiring of Tamper Switch ..........................17 High Assurance Configuration with EWAC ......................17 Veridt Encrypted Wiegand and Communications (EWAC) Interface ............17 Tamper Switch ..............................18 Communications Interface ..........................18 ...
-
Page 5: Safety Precautions
WARNING may be involved. This unit contains no user-replaceable parts. Do not attempt to open the unit or make repairs to the unit. Breaking a seal will void the warranty. CAUTION Stealth Series Installation Guide... -
Page 6: Introduction To Stealth Series

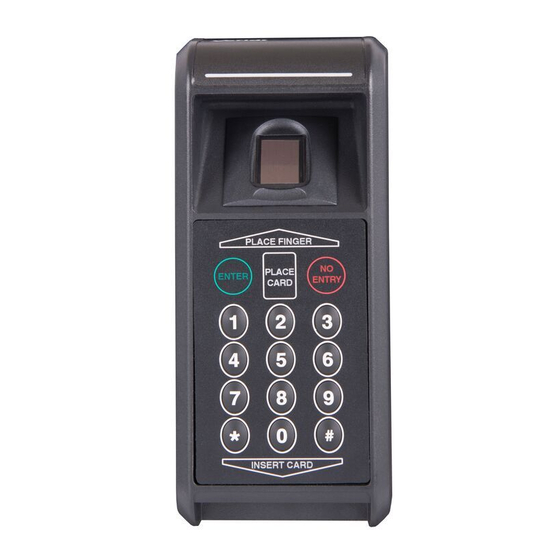

Figure 1 • Stealth Series General Installation Information Veridt Stealth series readers are designed to be operated as a Class 1 access control system component for use without requirements to withstand a destructive attack. A Tamper Indicator switch is available to provide a supervisory indication to the PACS in the event the reader is removed from its installed location. -
Page 7: Environment
Power Requirements Veridt Stealth series reader terminals operate at 12 VDC ± 2 V. Operation above 14 VDC may damage the reader; operation below 10 VDC may cause intermittent or complete loss of reader operation. -
Page 8: Mounting
PNs 900W2036, 900W2037, 900W2027, 900W2026 Figure 2 • Stealth Series Mounting Plates The Stealth series reader mounting plate can be mounted to a single gang box or directly to a wall or other flat surface using appropriate mounting hardware. The installation of these readers, and the materials used for installation, should be in accordance with the location requirements and the wiring methods defined by the National Electrical Code for Class 2 system. -
Page 9: Access Control Cable
Panel Power Supply Figure 3 • Stealth Series Grounding—Reader to Panel, Reader & Panel to Power Supply In order to avoid grounding problems. The reader, power supply and panel must share a common ground. Failure to do this may create a floating ground that could create high voltages at reader inputs thereby... -
Page 10: Low Voltage Power Drop
For both AC and DC low voltage; generally, the maximum acceptable voltage drop is 10%. The cable lengths in Table 2 take into consideration this voltage drop. Reader to EWAC, EWAC to Panel, EWAC to Power Supply & Network Stealth Series Installation Guide... -
Page 11: Reader Interface Signals
Figure 4 • Stealth Series Grounding—Reader to EWAC, EWAC to Panel, EWAC to Power Supply Reader Interface Signals Figure 5 • Reader Pins, Wire Colors, and Signals PACS Wiring Diagrams PACS Infrastructure Stealth Wiring Connections AMAG Wiegand See High Assurance Configuration on page 15. -
Page 12: Galaxy Wiegand
Blue RS485+ Yellow +12V DC See OSDP Wiring of Tamper Switch on page 15 Genetec Wiegand Stealth Reader Wire Color Mercury 4502 Label Ground Black +12V DC Access Brown Granted Wiegand 0 Green Wiegand 1 White Stealth Series Installation Guide... -
Page 13: Identiv Osdp
Blue RS485+ Yellow +12V DC See OSDP Wiring of Tamper Switch on page 15 Stealth Reader Wire Color Mercury 4502 Label Lenel Wiegand Ground Black +12V DC Access Granted Brown Wiegand 0 Green Wiegand 1 White Stealth Series Installation Guide... -
Page 14: Software House Ultra Osdp
+12V DC Power Access Granted Brown Green LED Wiegand 0 Green Wiegand 1 White Viscount Wiegand Stealth Reader Wire Color Bridge Label Ground Black +12V DC Power Access Granted Brown Wiegand 0 Green Wiegand 1 White Stealth Series Installation Guide... -
Page 15: Viscount Ficam
HID PAM Reader 1 or Reader 2 port Communications interface: for HID PAM Black Power + 12 VDC Brown Digital input Blue RS485 Rx- Yellow RS485 Tx+ Green RS485 Tx- White RS485 Rx+ Orange No Connection Stealth Series Installation Guide... -
Page 16: Software House Active Mode Change
Blue RS485+ Yellow +12V DC +12V DC Stealth Standard Pigtail Wiring Wire Color Signal Black GROUND Blue RS-485 - Yellow RS-485 + Green Wiegand 0 White Wiegand 1 Orange Tamper Switch Brown Access Granted +12 VDC Stealth Series Installation Guide... -
Page 17: Standard Wiegand
High Assurance Configuration with EWAC Veridt Encrypted Wiegand and Communications (EWAC) Interface The EWAC interface provides a bi-directional RS-485 interface to the PACS panel and a network interface that can allow a secure server to control door access. Install the EWAC interface in or near the PACS panel. -
Page 18: Tamper Switch
EWAC board. The Device Installer applications is currently located at https://www.lantronix.com/products/deviceinstaller IP Configuration for EWAC Lantronix Note: Depending on the version of the Devicelnstaller installed, the application images shown in the following instructions may differ from windows on your screen. Stealth Series Installation Guide... -
Page 19: Figure 7 • Lantronix Devicelnstaller Opening Window
3. Select the Web Configuration tab in the right pane. 4. When the login dialog displays, enter your Username and Password. 5. The default Username is admin. The default Password is PASS. 6. The right panel that displays should resemble the one shown below. Stealth Series Installation Guide... -
Page 20: Figure 8 • Ip Configuration
9. Next select the Tunnel option, click the Connect button on the Tunnel 1 Connect Mode window Figure 9 • IP for Host Address 10. Select the Host 1 IP address and change it to the IP address of the HID pivCLASS PACS Administration Service. Stealth Series Installation Guide... -
Page 21: Figure 10 • Lantronix Devicelnstaller Opening Window
11. To lock-in the new configuration settings, select System from the list of options in the right pane and then click the Reboot button. 12. The reboot sets the EWAC to the new configuration. 13. Refer to the HID documentation when configuring the pivCLASS PACS Administration software to complete the System configuration. Stealth Series Installation Guide... -
Page 22: Reader Troubleshooting
Reader Troubleshooting Please have the following information available before calling Veridt. Table 3• Reader Information Serial Number Date of Manufacture (Month/Year) Voltage/Current Reader from Power Distance Power Supply Voltage & Current Ratings Feet Amps No Load Voltage (Reader Idle) Wire Gauge (e.g. 18, 22, etc.) -
Page 23: Multi-Technology Readers
IC (Canada): This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any Stealth Series Installation Guide... -
Page 24: Contact Information
(2) cet appareil doit accepter toute interference, y compris les interferences susceptibles de provoquer un fonctionnement indesirable. FCC 15.21 IMPORTANT! Changes or modifications not expressly approved by Veridt Inc could void the user's authority to operate the equipment. IC (Canada): IMPORTANT! Changes or modifications not expressly approved by Veridt Inc could void the user's authority to operate the equipment.
