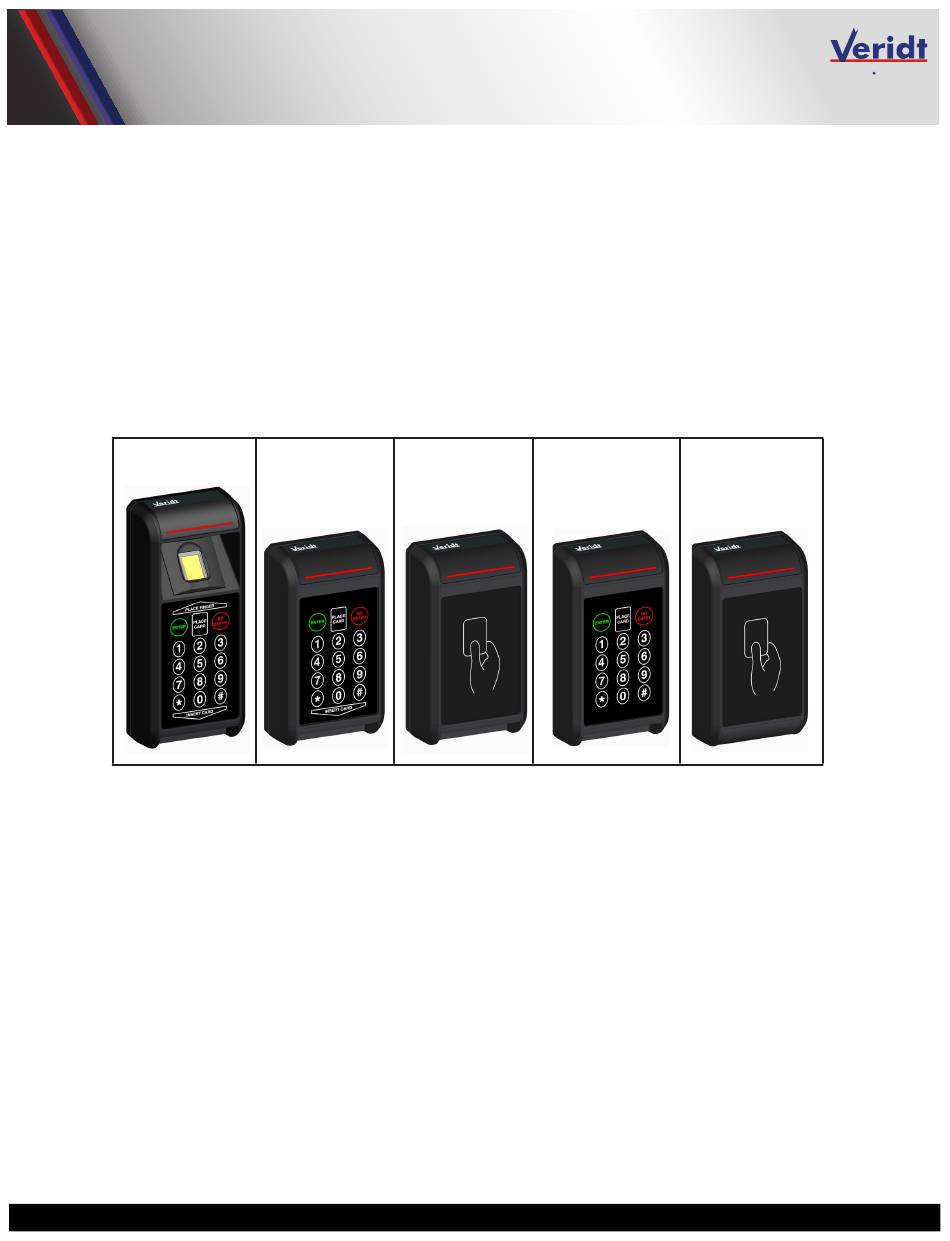

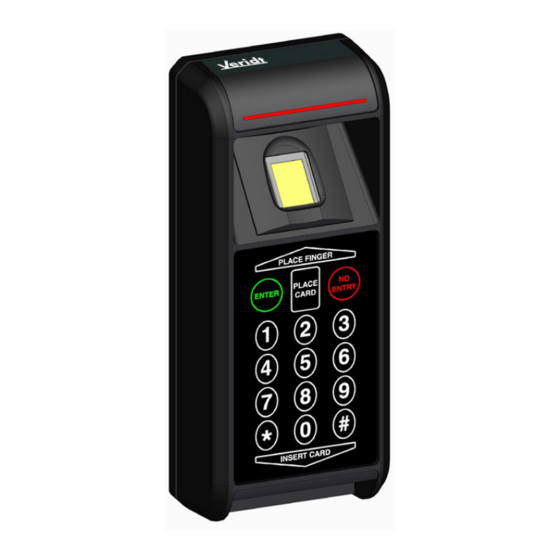

- Page 1 • Q U I C K S TA R T G U I D E • Stealth Series Readers Verify Identify Valid for Stealth Series Readers Stealth Bio Stealth Dual Stealth Dual Lite Stealth Stealth Lite PN 900W2030 PN 900W2036 PN 900W2037 PN 900W2026 PN 900W2027 www.veridt.com VERIDT INC · Middleton, WI 53562...
- Page 2 Wire Color Connection Black Ground Standard Serial RS-485 Power +12 V Brown Not Used Blue RS-485 Data - Yellow RS-485 Data + Green Not Used White Not Used Gray Not Used Orange Tamper Switch www.veridt.com VERIDT INC · Middleton, WI 53562...
- Page 3 Verify Identify Power Requirements. Veridt Stealth series reader terminal operate at 12 VDC ± 1 V. Operation above 13 VDC can damage the reader; operation below 11 VDC can cause intermittent or comnplete loss of reader operation. Power consumption varies based on the hardware configurations of th rader. Power requirement for each reqder are listed below.
- Page 4 ©Copyright 2022 Veridt, Inc. All rights reserved. Specifications subject to change without notice. Veridt, Stealth, and MultiMode are trademarks of Veridt. All other brands or product names are the trademarks or registered trademarks of their respective holders. www.veridt.com VERIDT INC · Middleton, WI 53562...
