IMPORTANT SAFETY INSTRUCTIONS
READ AND FOLLOW ALL INSTRUCTIONS
SAVE THESE INSTRUCTIONS
P-INSB-ICOMM (08/'08)

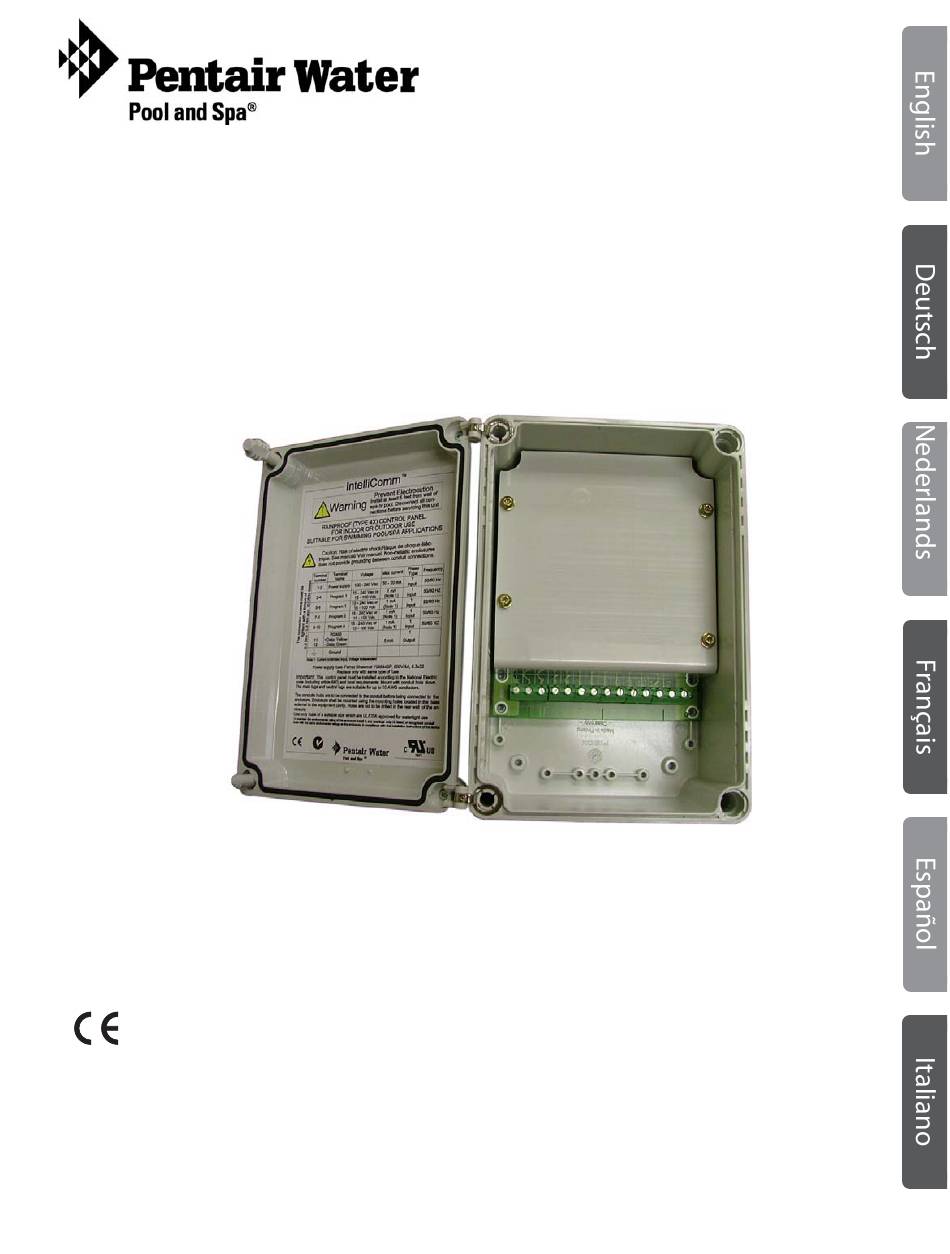

Installation and
User's Guide
IntelliComm
Communication Center
(For use with the IntelliFlo
Pentair Water Belgium bvba
B-2200 Herentals - Belgium
www.pentairpooleurope.com
™
®
pump)
Industriepark Wolfstee
Toekomstlaan 30
+32 (0) 14.25.99.11
9
16
23
30
37
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Pentair Pool Products IntelliComm
Summary of Contents for Pentair Pool Products IntelliComm
- Page 1 Installation and User’s Guide ™ IntelliComm Communication Center ® (For use with the IntelliFlo pump) Pentair Water Belgium bvba Industriepark Wolfstee IMPORTANT SAFETY INSTRUCTIONS Toekomstlaan 30 READ AND FOLLOW ALL INSTRUCTIONS B-2200 Herentals - Belgium SAVE THESE INSTRUCTIONS +32 (0) 14.25.99.11 www.pentairpooleurope.com...
- Page 2 This document is subject to change without notice Trademarks and disclaimers: IntelliComm, IntelliFlo, and the Pentair Water Pool and Spa log are trademarks of Pentair Water Pool and Spa, Inc. Other trademarks and trade names may be used in this document to refer to either the entities claiming the marks and names or their products.
- Page 3 CAUTION When using the IntelliComm communication center with the IntelliFlo pump, it is recommended to wire the IntelliComm power center to a ground fault circuit-interrupter (GFCI) to protect the circuit. A green colored terminal (or a wire connector marked “G”, “GR”, “Ground”...
- Page 4 The Pentair IntelliComm communication center provides automatic control of the IntelliFlo pump. The IntelliComm provides four pairs of input terminal connections. These inputs connectors are actuated by either 15 VAC to 240 VAC or 15 VDC to 100 VDC from the source device such as an automation controller, heater, or heat pump.
- Page 5 Section 4 Installing the IntelliComm enclosure Install the IntelliComm enclosure at the equipment pad at a maximum of 15.24 m (50ft.) from communication cable from the IntelliFlo pump can reach the IntelliComm enclosure location. (50ft.) away from the cell controller.
- Page 6 To connect the AC power wires to IntelliComm: 1. Connect the main AC power wires to the IntelliComm AC terminals number 1 and 2 as shown below. 2. Grounding: Attach incoming GROUND wire to the ground terminal as shown below.
- Page 7 Section 7 IntelliComm system wiring The IntelliComm provides four pairs of input terminals which can be actuated by either 15 to 240 VAC or 15 to 100 VDC from the source device, (automation controller, heater, heat pump etc.). There are four IntelliFlo external control programs that can be enabled.
- Page 8 Section 9 Connecting the IntelliFlo communication cable A two-wire communication cable is required to connect either the IntelliFlo pump to IntelliComm. This allows the IntelliFlo pump to be controlled by IntelliComm. The cable pinout is shown below. IntelliFlo communication cable pinout...
