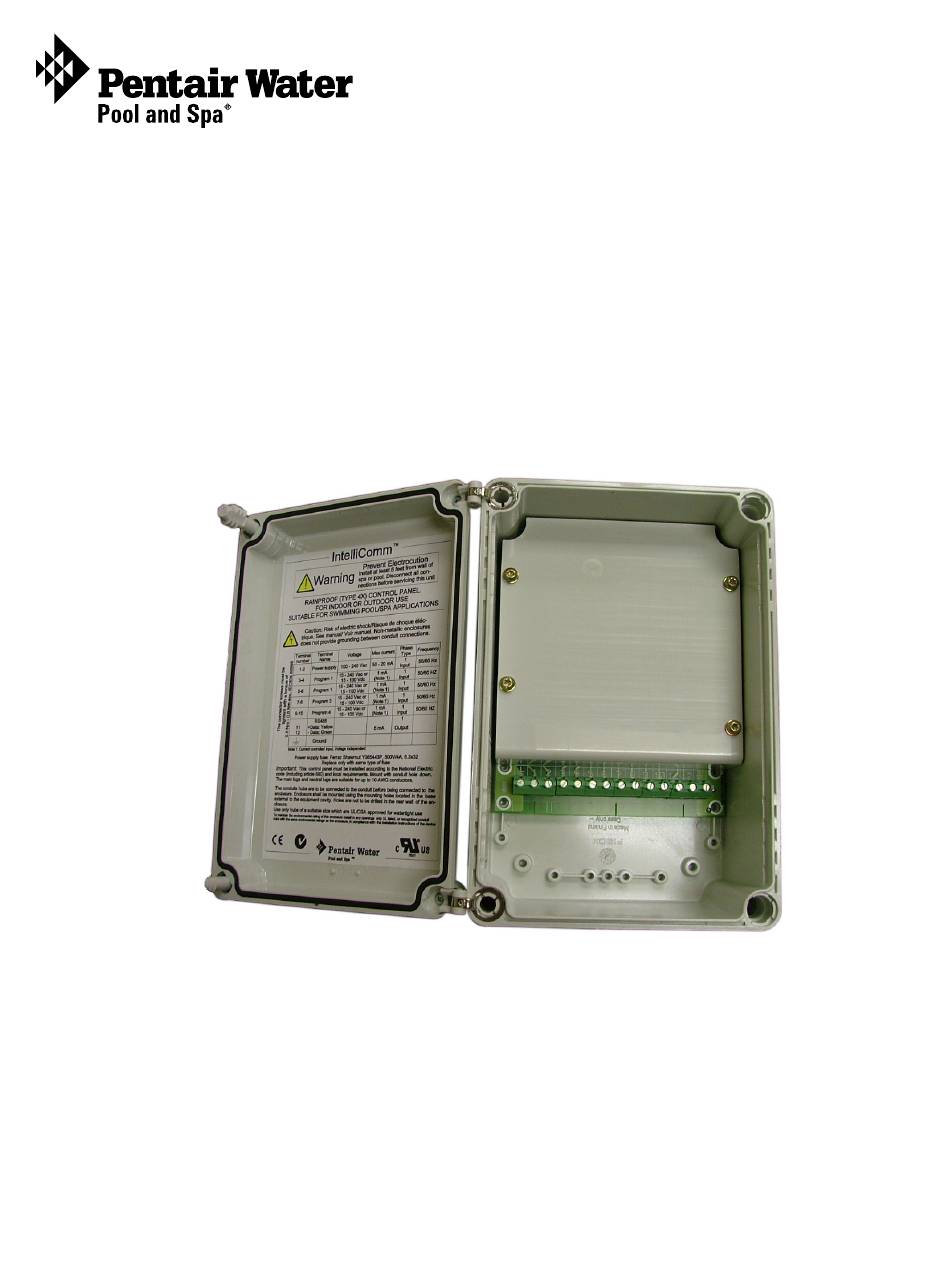

- Page 1 IntelliComm ® Communication Center ® ® (For use with the IntelliFlo and IntelliPro pumps) Installation Guide IMPORTANT SAFETY INSTRUCTIONS READ AND FOLLOW ALL INSTRUCTIONS SAVE THESE INSTRUCTIONS...
- Page 2 Technical Support Contact Pentair Technical Support: Sanford, North Carolina (8 A.M. to 5 P.M.) Phone: (800) 831-7133 Fax: (919) 566-8920 Moorpark, California (8 A.M. to 5 P.M.) Phone: (800) 831-7133 (Ext. 6502) Fax: (805) 530-0194 Web sites: visit www.pentairpool.com and www.staritepool.com ©...
-
Page 3: Table Of Contents
Installation Steps Summary ..................iv Kit Contents ....................iv Required communication cable ..............iv Required Tools ..................... iv IntelliComm Communication Center ............... 1 Installing the IntelliComm enclosure ................ 2 Mounting the IntelliComm enclosure ............2 Connecting AC power wires to the IntelliComm ............3 IntelliComm system wiring .................. -
Page 4: Important Safety Precautions
Risk of electrical shock or electrocution! WARNING The IntelliComm communication center must be installed by a licensed or certified electrician or a qualified pool serviceman in accordance with the National Electrical Code (NEC) and all applicable local codes and ordinances. - Page 5 IMPORTANT SAFETY PRECAUTIONS CAUTION When using the IntelliComm communication center with the IntelliFlo pump, it is recommended to wire the IntelliComm power center to a ground fault circuit- interrupter (GFCI) to protect the circuit. A green colored terminal (or a wire connector marked “G”, “GR”, “Ground”...
-
Page 6: Installation Steps Summary
Installation Steps Summary The recommended IntelliComm Communication Center installation steps are: Review Important Safety Precautions (page i and ii): Review this important information. Review IntelliComm Overview (page 1): Review the product overview. Installing IntelliComm (page 2 ): Installing the IntelliComm enclosure. -

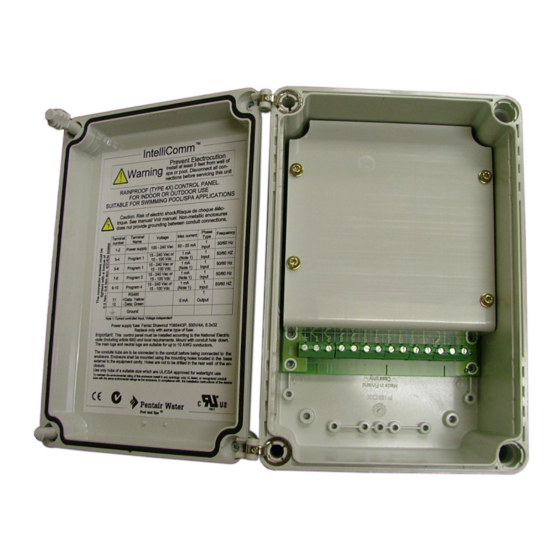

Page 7: Intellicomm Communication Center
Attach control input wires to terminals 3 through 10 Attach incoming Attach IntelliFlo communication IntelliComm AC power cable wires to terminals wires to AC terminals 11 and 12 1 and 2 IntelliComm Communication Center IntelliComm Communication Center Installation Guide... -
Page 8: Installing The Intellicomm Enclosure
The IntelliComm enclosure can be mounted on a wall or vertical flat surface up to 50 feet away from the cell controller. CAUTION: The IntelliComm communication center must be installed more than 8 ft. (2.44 m) from the pool edges. -
Page 9: Connecting Ac Power Wires To The Intellicomm
Close the front cover and tighten the two cover screws. Attach incoming AC (100 VAC to 240 VAC 50/60 Hz) Ground terminals wires to AC terminals 1 and 2 IntelliComm Communication Center IntelliComm Communication Center Installation Guide... -
Page 10: Intellicomm System Wiring
Inputs from remote device: The IntelliComm has four current sensing inputs that are activated by either 15 VAC to 240 VAC or 15 VDC to 100 VDC. Output to pump: The IntelliComm communicates with the pump via a two wire RS-485 cable. IntelliComm Communication Center Installation Guide... -
Page 11: Connecting The Intelliflo Communication Cable
(page 8): This wiring diagram shows how the IntelliComm can be used to command an IntelliFlo or IntelliPro pump to run at a specific speed or flow rate when the heater is running. IntelliComm Communication Center Installation Guide... -
Page 12: Wiring Diagrams
100 to 240 VAC POWER Power Supply PRGM PRGM Aux. 2 Relay PRGM PRGM Aux. 3 Relay RS485 + RS485 - Aux. 4 Relay IntelliFlo Drive Low Volt Comm Cable 230 VAC Power to Pump IntelliComm Communication Center Installation Guide... -
Page 13: 2-Speed Using An Intellitouch 2-Speed Relay
IntelliTouch Panel NEUTRAL Filter Pump Relay 2-Speed Relay IntelliComm 100 to 240 VAC POWER Power Supply PRGM PRGM PRGM PRGM RS485 + RS485 - Low Volt Comm Cable IntelliFlo Drive 230 VAC Power to Pump IntelliComm Communication Center Installation Guide... -
Page 14: Connection To Sta-Rite Heater To Set Pump Flow Or Speed When Heater Is Running
Connection to Sta-Rite heater to set pump flow or speed when heater is running Starite Heater IntelliComm 100 to 240 VAC POWER Power Supply PRGM PRGM PRGM PRGM RS485 + RS485 - IntelliFlo Drive Low Volt Comm Cable 230 VAC Power to Pump IntelliComm Communication Center Installation Guide... - Page 15 LIMITED WARRANTY Pentair Water Pool and Spa, Inc. ("Pentair Water") manufactures its products with the highest standards of workmanship, using the best materials available through state of the art process. Pentair Water warrants its products as follows: Limited Warranty: Pentair Water warrants its products to be free from defects in material and/or workmanship for a period of one (1) year.
- Page 16 *520700* P/N 520700 - Rev B...
