Pentair Pool Products MagicStream Installation Instructions

The Laminar LED light engine replacement kit includes:
• LED light engine with 10 screws and o-ring - P/N 590021
The Laminar deck cover and trim ring replacement kit includes:
• Deck cover with matching trim ring: Black P/N 590025, gray P/N 590026, tan P/N590027
Risk of electrical shock or electrocution!
This MagicStream™ Laminar must be installed by a licensed or certified electrician or a
qualified pool serviceman in accordance with the National Electrical Code and all applicable
national, state and local codes and ordinances. Improper installation will create an electrical
hazard which could result in death or serious injury to pool users, installers, or others due to
electrical shock, and may also cause damage to property.

LAMINAR LED LIGHT ENGINE REMOVAL AND INSTALLATION

The following procedure describes how to remove and replace the Laminar LED light engine.
Switch AC power OFF at the circuit breaker before servicing the MagicStream Laminar.
1.
Failure to do so could result in death or serious injury to service personnel, pool users or others due to
electric shock.

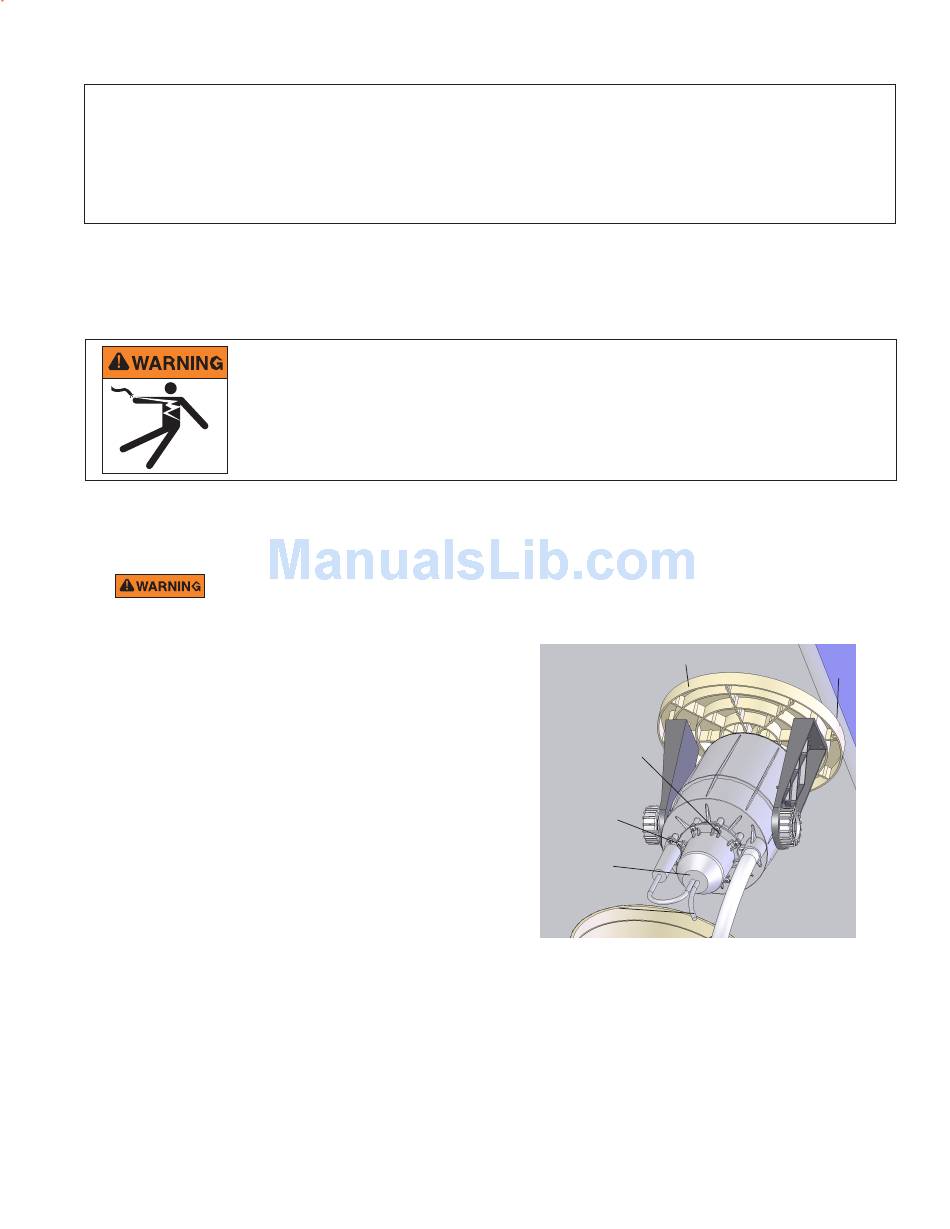

2. LED light engine removal: Remove the two deck cover
retaining screws.
3. Remove the laminar deck cover and Laminar assembly from
the Laminar housing and place them on the deck.
4. Turn the Laminar assembly upside and it place face down.
5. Remove the eight (8) retaining screws securing the LED
light engine to the Laminar assembly.
6. Remove the two (2) retaining screws securing the solenoid
thumper to the Laminar assembly.
7. Firmly pull the LED light engine from the Laminar assembly.
8. At the transformer, disconnect the LED light wire from the
transformer.
9. With the LED light engine separated from the Laminar
assembly, cut the attached LED light engine cable that runs
to the transformer.
10. Route the replacement LED light conduit cable: Strip back the ends of two wires on the replacement LED light
cable and existing light cable in the conduit. Tape the wires together so that the cable can be pulled through the
conduit.
11. From the transformer end of the cable, pull the cable through conduit until the new cable is visible and exits the
conduit at the transformer. At the Laminar, leave three (3) feet of cable slack in the deck housing.
12. Connect the LED light wires to the 12 VAC taps of the transformer.
13. Connect the 120 VAC side of the transformer to a 120 VAC GFCI power feed that is controlled by a single switch.
When installing multiple laminars, make sure all the laminars are connected to a single switch. You will use this
switching capability to program the LED light engine.
MagicStream™ Laminar
LED Light Engine
Laminar Deck Cover
Replacement Kit Installation Instructions
and
Deck cover screw
Light engine
screws (8)
Solenoid
thumper
screws (2)
LED light
engine
Cut light
cable here
Deck cover screw
