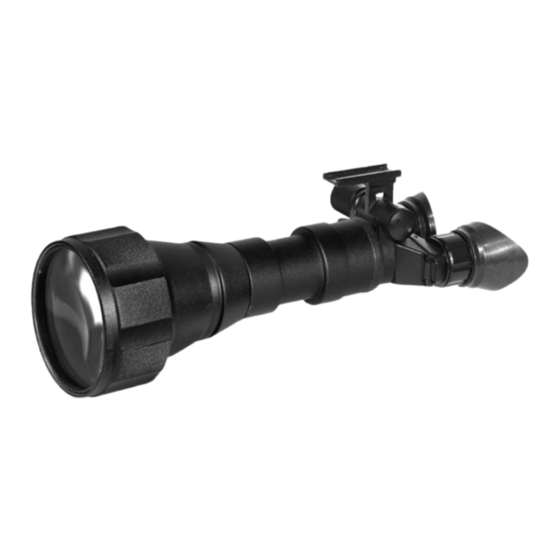

ATN NVB5X ATN NVB10X u s e r ` s g u i d e Important Export Restrictions! Commodities, products, technologies and services contained in this manual are subject to one or more of the export control laws and regulations of the U.S. Government and they fall under the control jurisdiction of either the US Department of State or the US BIS-Department of Commerce.
302mm x 108mm x 102mm Weight 2.9 lb/1.32 kg 3.0 lb/1.36 kg * ATN reserves the right to change the above specifications at any time without notice feateS • High Quality image intensifier tube Gen. 2, CGT, HPT or Gen.3 •...
Page 4
opeation Diopter adjustment • Take the NVB out of the case. • Install the battery into the housing with the polarity order as shown on the scope. Battery Type: 3 Volt, Lithium, CR123A . • Press the button (short press - less than 1.5 sec.) to turn the unit on with the protec- tive lens cover still attached to the lens.
Page 5
450 mw infa-ed illminato IR Brightness Adjustment The 450 mW IR Illuminator is powered Battery with is own separate battery. To install Housing the battery unscrew the cap and insert Elevation the battery the way shown on the polar- ity diagram. To mount the 450 mW IR Illuminator onto the bi-ocular loosen the IR illu- minator clamp, insert the IR rail the...
Page 6
tobleShooting Q: Flashes, flickers, or clicking occur while operating s: If it occurs within the first five minutes of inserting new batteries, it is normal and the device will resume normal operation soon thereafter. If it occurs for more than 10 minutes, contact for service instructions.
ATN, at its option, will either repair or replace the product, and such action on the part of ATN shall be the full extent of ATN’s liability, and the Customer’s sole and exclusive remedy. This warranty does not cover a product (a) used in other than its normal and customary manner;...
