Summary of Contents for Vogtlin red-y GCR

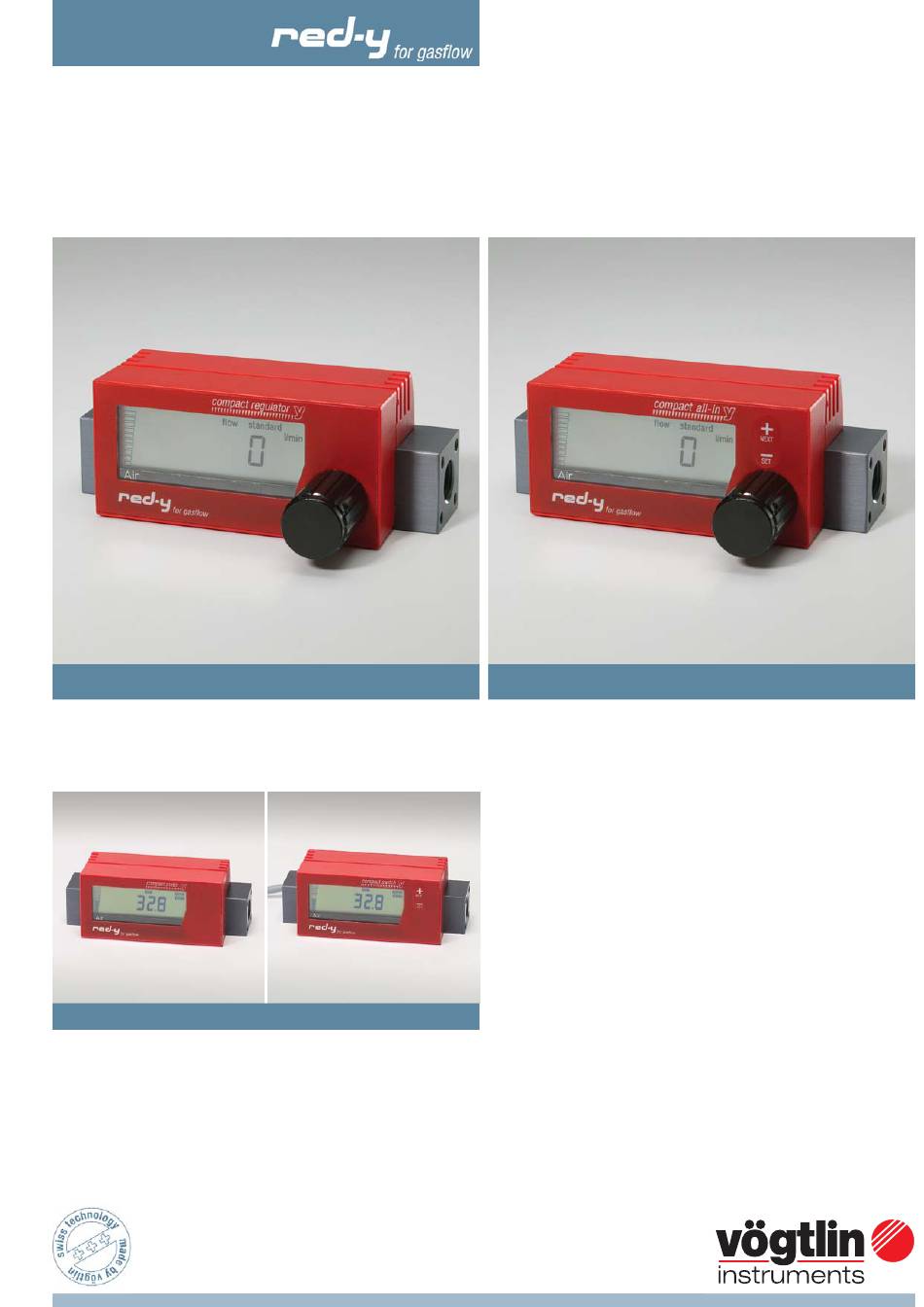

- Page 1 Instruction manual red-y compact series compact regulator GCR compact all-in GCA compact meter GSM & compact switch GCS Vögtlin Instruments AG – flow technology Langenhagstrasse 1 | 4147 Aesch (Switzerland) Phone +41 (0)61 756 63 00 | Fax +41 (0)61 756 63 01 www.voegtlin.com | info@voegtlin.com...

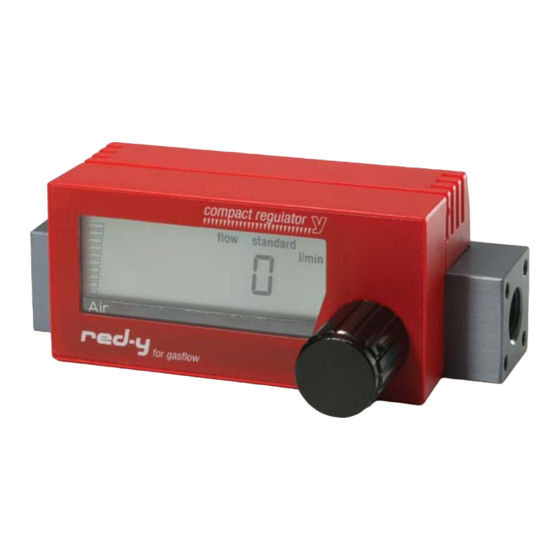

- Page 2 Instruction manual red-y compact series compact meter GCM compact regulator GCR compact switch GCS compact all-in GCA Copyright © 2005 Vögtlin Instruments AG, Switzerland Version: compact_E4_0 Editing: Daniel Walliser, Christian Mahrer Design: Michael Huber You will find up-to-date information on our products on the Internet at www.red-y.com Vögtlin Manual Version Chapter...
-
Page 3: Table Of Contents
Table of Contents 01 Introduction Operator Benefits Service and Quality Guarantee 02 Mode of Operation Measurement principle CMOS Technology 03 Technical Information General Specifications of the Device Mechanical Specifications Electrical Data Display Measurement Ranges Connector Assignment Conversion Factors for other Gases Loss of Pressure Temperature Compensation Pressure Compensation... -
Page 4: Introduction
Introduction Welcome With red-y you get the latest, most modern CMOS sensor technology. CMOSens is a technology label and stands for a modern process in which the sensor and the signal processing are combined on a highly integrated chip. This manual will familiarize you with the installation and operation of your red-y . We therefore ask you to read this manual carefully and to contact your sales partner with any questions or doubts. - Page 5 Introduction Tips and Warnings Before putting the instrument into use, these operating instructions should be read thoroughly. Improper use, errors for lack of understanding and the consequences arising from this, can lead to the destruction of the instrument or even the endangerment of personnel. The equipment should be put into operation and serviced by appropriately qualified personnel only.
-
Page 6: Mode Of Operation
Mode of Operation A bit of theory Measuring principle The measuring principle of thermal flow measurement is perfectly suited for the measurement of gas flows. One of the significant advantages is that the measurement is largely independent of pressure and temperature. By contrast to volumetric principles, pressure and temperature do not have to be additionally measured. - Page 7 Mode of Operation The digital intelligence linked with the CMOSens sensor permits the emission of a fully calibrated, temperature-compensated output signal. The CMOSens ‘intelligence’ integrated onto the chip thus facilitates an extremely simple processing of the emitted measurement data. CMOS is a standard technology for the manufacture of integrated circuits.
-
Page 8: Technical Information
Technical Information Technical Information General Specifications of the Device Accuracy +/- 1% of full scale Dynamics Standard measurement range 2 – 100 % within the specification Signal suppression less than 2% of full scale Repeatability +/- 1% from measurement value Long-term stability <... -
Page 9: Measurement Ranges
Technical Information Measurement Ranges Red-y measurement and control devices are supplied with standard measurement ranges for air. As an option, the devices are available with individual measurement ranges and, upon request, can be calibrated with other gases. Standard Measurement Ranges Code Meas. -
Page 10: Temperature Compensation
Technical Information Temperature Compensation Thermal mass flow meters measure the flow of gases to a large extent independent on pressure and temperature. Varying temperatures are automatically compensated by the measurement device. The sensor measures gas temperature and automatically calculates a correction value using a three-dimensional value table. -
Page 11: Mounting & Installation
Mounting & Installation Mounting & Installation General Tips Check the packet for external damage and contact us immediately in the case of visible damage. Compare the contents of the packet with the delivery slip and check for completeness and technical compliance. -
Page 12: Electrical Connection / Power Supply
Mounting & Installation Electrical Connection / Power Supply With the battery-operated devices, mount the battery module. Then the measuring device is ready for use. The useful life of the battery module is about 2 years, but this depends on use. With constantly changing flow rates, the useful life may be shorter. -
Page 13: Operation & Service
Operation & Service Operation & Service Heat-Up Time Right when the device is turned on, red-y is ready for use. For the most precise measurements, however, red-y is ready in 30 minutes (option of external feed). Before turning on, please be sure that the wiring is correct and is installed according to the installation plan, and that the gas connections are also mounted in accordance with the installation instructions of the manufacturer. -
Page 14: Replacement Of Battery
Operation & Service Battery Replacement If ‘low bat’ appears in the display, we recommend that you change the battery or at least have a new battery module available (Art. Nr. 328-2211). This module can be obtained from your Insentys sales partner. We recommend the following procedure with the replacement of the battery: Changing the battery requires no tools at all. -
Page 15: Alarm & Switch Function
Alarm & Switch Function Alarm & Switch Function Individual Functions in Detail AL CLR Resetting the Alarm Condition In the case of alarm condition, the alarm can be reset. This is only possible if the manual option is selected in the corresponding menu (resetting the alarm AL res ). The alarm condition is shown in the display. -
Page 16: Diagram Of Function Settings
Alarm & Switch Function Diagram of Function Settings both button pressed for 2s Measuring Alarm reset 20. 0 al clr no button pressed for 2s one button pressed for 2s no button pressed for 10s adjustable with +/- Alarm Setpoint 1200 alsetp no button pressed for 2s... -
Page 17: Alarm Situations
Alarm & Switch Function Alarm situations Situation 1 / Parameters: Function Value Function Value Function Value AUto ALSEtP DELAY AL rES AL LO ALFUNC HYST FAILSA LoSUPr Hysteresis Setpoint Range Situation 2 / Parameters: Function Value Function Value Function Value ALSEtP DELAY AL rES... -
Page 18: Totalizer
Totalizer Totalizer General The Totalizer function can be activated by the manufacturer . Function The instrument calculates the integrated value of the gas volume. The added up value is periodically displayed and stored in intervals of 15 minutes in the non-volatile storage (EPROM). In the event of a power disruption, the Totalizer therefore displays the correct total volume. -
Page 19: Dimensions
Dimensions Dimensions Dimensions smart controller G1/4” 12,5 25.5 ø19 (12.7) 88.6 12.7 Mit externer Speisung / With external power supply / Avec alimentation externe ø4.8 ø6.8 25.5 ø19 (12.7) 12.7 Befestigungsgewinde / Mounting threads / Filets de fixation Ansicht A / View A / Vue A Ansicht B / View B / Vue B 23.5 23.5... - Page 20 Dimensions Dimensions smart controller G1/2” ø4.8 ø6.8 (52.7) 88.6 18.7 Befestigungsgewinde / Mounting threads / Filets de fixation Ansicht A / View A / Vue A Ansicht B / View B / Vue B Vögtlin Manual Version Chapter Page red-y compact series compact_E4_0 ©...
-
Page 21: Annex
Annex Annex Pressure Loss Pressure Loss 500 mln/min (Air) Flow mln/min Pressure Loss 5 ln/min (Air) Flow ln/min Pressure Loss 50 ln/min (Air) Flow ln/min Vögtlin Manual Version Chapter Page red-y compact series compact_E4_0 © Vögtlin Instruments AG... - Page 22 Annex Pressure Loss 200ln/min Druckverlust Typ - 200 ln/min Druck (mbarü) Pressure (mbar g) Q in ln/min Vögtlin Manual Version Chapter Page red-y compact series compact_E4_0 © Vögtlin Instruments AG...
-
Page 23: Type Code
Annex Type Code Main function gasflow Series compact series Function Meter Regulator Switch All-in Measuring Range (Air) A3 100 mln/min G1/4", 25x25 A4 200 mln/min A5 500 mln/min A9 Custom range B3 1'000 mln/min B4 2'000 mln/min B5 5'000 mln/min B9 Custom range C3 10 ln/min C4 20 ln/min... -
Page 24: Contamination Statement
Annex Contamination Statement With return of devices, please fill out the following statement completely, especially the reason for the return, the type of residue and cleaning in the case of soiling, as well as indication of hazards. Devices Type Code: Serial number: Reason for the return: Type of contamination...
