Vogtlin SmartTrak 100 Series Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
SmartTrak
Serie 100
®
Massflowmeasurement

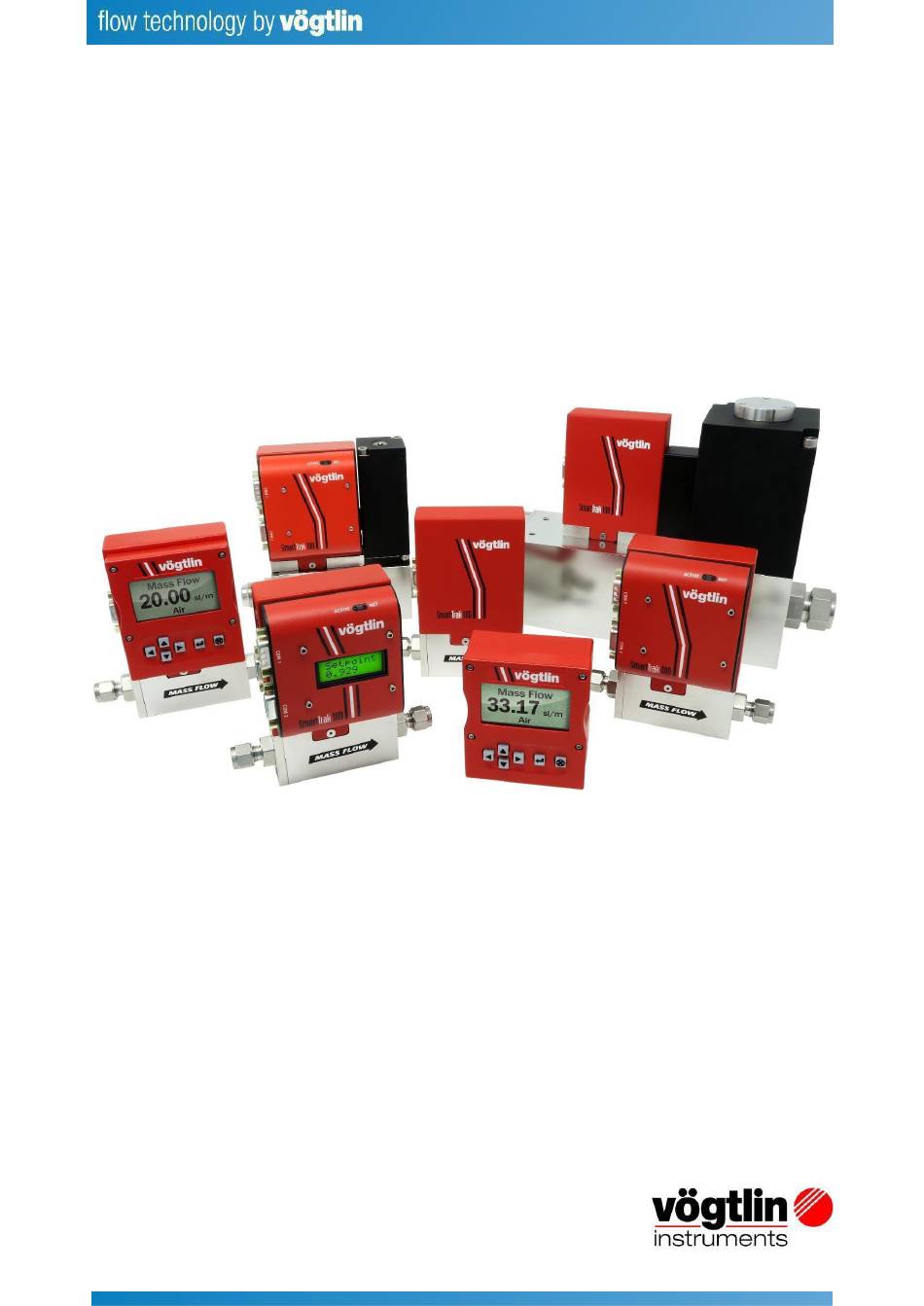

Models: C100, M100, C100 HP, M100 HP, C101, M101, C140
Manual
IM-100, Revision: H.2
Februar 2014
Vögtlin Instruments GmbH – flow technology
Langenhagstrasse 1 | 4147 Aesch (Switzerland)
Tel. 41 (0)61 756 63 00 | Fax +41 (0)61 756 6301

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SmartTrak 100 Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vogtlin SmartTrak 100 Series

Summary of Contents for Vogtlin SmartTrak 100 Series

  • Page 1 SmartTrak Serie 100 ® Massflowmeasurement Models: C100, M100, C100 HP, M100 HP, C101, M101, C140 Manual IM-100, Revision: H.2 Februar 2014 Vögtlin Instruments GmbH – flow technology Langenhagstrasse 1 | 4147 Aesch (Switzerland) Tel. 41 (0)61 756 63 00 | Fax +41 (0)61 756 6301...
  • Page 2 Fax +41 61 756 63 01 Langenhagstrasse 1 CH-4147 Aesch BL info@voegtlin.com Switzerland www.vogtlin.com China: KEM flow technology (Beijing) Co., Ltd. Phone +86 10 849 29 567 Rm. 906, Block C, Ruipu Office Bldg, Fax +86 10 520 03 739 No.

  • Page 3: Table Of Contents

    Table of Contents Chapter 1: Introduction ..................... Welcome to the future of gas flow measurement! ..............5 Using This Manual ......................... 5 Safety Information ........................6 Receipt of your instrument ..................... 7 The SmartTrak Flow Sensing Principle ................. 9 Chapter 2: Installation ....................Before You Begin Installation ....................
  • Page 4 Lost Passwords and General Customer Service ................47 Chapter 5: Digital Operation RS-232 & SmartTrak Software ........Power Up Your Instrument ....................47 Power Up Your Computer....................50 Loading the SmartTrak Software ..................50 Connecting SmartTrak to Your Computer ................51 If your computer has a serial port ..................

  • Page 5: Chapter 1: Introduction

    Welcome to the future of gas flow measurement! This manual is your guide to SmartTrak. Visit the Vögtlin Instruments website www.vogtlin.com any time for more information about this product. The SmartTrak instruments offer a variety of features for ease of operation. Among these features: ...

  • Page 6: Safety Information

    SAFETY INFORMATION Caution and warning statements are used throughout this book to draw your attention to important information. Warning! Caution! This statement appears with information that is important to This statement appears with information that is important for protect people and equipment from damage. Pay very close protecting your equipment and performance.

  • Page 7: Receipt Of Your Instrument

    Fax +41 61 756 63 01 Langenhagstrasse 1 CH-4147 Aesch BL info@voegtlin.com Switzerland www.vogtlin.com China: KEM flow technology (Beijing) Co., Ltd. Phone +86 10 849 29 567 Rm. 906, Block C, Ruipu Office Bldg, Fax +86 10 520 03 739 No.
  • Page 8 DEFINITIONS USED IN THIS MANUAL The following terms are used frequently in this manual. They are presented here with their definitions for your information. Setpoint—The command or control signal supplied to a flow controller is called its setpoint. The controller will maintain the flow at this value. Full scale—The highest flow that an instrument will meter within its specified accuracy.
  • Page 9 THE CAPILLARY THERMAL OPERATING PRINCIPLE The operating principle of the SmartTrak instruments is based on heat transfer and the first law of thermodynamics. During operation process gas enters the instrument’s flow body and divides into two flow paths, one through the sensor tube, and the other through the laminar flow bypass.
  • Page 10 Figure 1-2. Flow Measuring Principle Figure 1-3. Sensor Temperature Distribution Figures 1-2 and 1-3 show the mass flow through the sensor tube as inversely proportional to the temperature difference of the coils. The coils are legs of a bridge circuit with an output voltage in direct proportion to the difference in the coils’...

  • Page 11: Chapter 2 Installation

    In the SmartTrak mass flow controllers, the gas which flows through the monitoring section is precisely regulated by the built-in electromagnetic valve. The normally closed valve is similar to an on/off solenoid valve, except that the current to the valve coil, and hence the magnetic field, is modulated so that the ferromagnetic valve armature, or valve plug, assumes the exact height above the valve’s orifice required to maintain the valve’s command flow (set point).

  • Page 12: Pre-Installation Check List

    Pre-Installation Check List 1. Double-check to be sure that the O-ring material used in your instrument is compatible with the gas to be measured. The O-ring material used in your SmartTrak can be found in the Data Label. See Appendix A for a table of elastomer compatibility with a wide variety of gases.

  • Page 13: Installing The Instrument-Plumbing

    7. The instrument has specific power supply requirements. See the table later in this chapter for a complete listing of power requirements. Installing the Instrument—Plumbing ® ® SmartTrak instruments are supplied with compression, VCO , VCR , or female NPT process connections.

  • Page 14: Vco Fittings

    VCO Fittings Position the instrument with the flow direction arrow pointing in the direction of flow. Tighten the nut finger-tight, and then 1/8 turn tighter with a wrench. Do not over- tighten! Check the system’s entire flow path thoroughly for leaks. Do not use liquid leak detectors.

  • Page 15: Installing Your Instrument-Mechanical Mounting

    Installing your Instrument—Mechanical Mounting Mounting your Instrument The base plate or bottom of the instrument has 4 mounting holes. Two are SAE thread and two are metric thread. For location and dimensions, please see Appendix A. Your SmartTrak instrument is made from premium 316 stainless steel. As a result, it may require substantial mounting brackets to properly support its weight.
  • Page 16 CAT 5 HD DB 15 Figure 2-2: SmartTrak connections SmartTrak is provided with a high density 15-pin D Connector called an “HD DB-15” located on the side of the enclosure and either one of our optional pre-assembled communications cables or an empty mating connector. Power must be supplied to the HD...
  • Page 17 DB-15 connector. Other features may be accessed there as well. The pin numbers and assignments for the HD DB-15 connector are shown in Figure 2-3: HD DB-15 Connector Pin Configuration (on the instrument). The corresponding colors of the optional communication cable wires and the functions of each are listed in Figure 2-4: Wiring Definitions for Optional Communication Cable.
  • Page 18 output signal and analog input signal (controllers only) are all made at the HD DB-15 connector. There is a second copy of these 2 figures in Appendix D for your convenience Figure 2-3: HD DB-15 Connector Pin Configuration (on the instrument) Figure 2-4: Wiring Definitions for Optional Communication Cable Pin # Wire Color in Cable...
  • Page 19 NOTE: Pins 1, 3, and 10 are connected together inside the instrument. Do not tie these grounds together outside the instrument. Must have one connection per analog ground. Recommended use listed. Instrument Power: The SmartTrak requires a 15-24 VDC power supply. If you are using the power supply supplied by Vögtlin, connect it to the 15-pin HD DB-15 connector on the side of the instrument.
  • Page 20 CAUTION: This instrument is not a loop-powered device! Do NOT apply power to the 0/4-20 mA output or input connections. Analog Output Signals:  Output Signal—Voltage: Measure the voltage output signal across the red (pin 2) wire and any of the analog grounds: brown (pin 1), orange (pin 3) or gray (pin 10). The minimum load is 1000 Ohms.
  • Page 21 Figure 2-6: Digital Communication RS-232 Transmit (pin 7) DB-9 pin #2 RS-232 Receive (pin 13) DB-9 pin #3 Analog ground (pin 3) DB-9 pin #5 NOTE: Transit and Receive may need to be reversed, depending on which type of device or cable is connected. (No damage will result—attempt communication after reversal.

  • Page 22: Chapter 3: Analog Operation

    CHAPTER 3: ANALOG OPERATION Your SmartTrak instrument may be operated in three different ways: THREE CONTROL OPTIONS A. Analog Input/Output Operation (This Chapter): Using analog input/output signals at the 15-pin mini-D connector. B. Digital Operation with Pilot Module (Chapter 4): Using the optional Pilot Module. C.

  • Page 23: Analog Operation, Mass Flow Controller

    Analog Operation, Mass Flow Controller After your instrument is installed and the system has undergone a complete leak check as discussed in detail in Chapter 2, follow these steps: 1. The valve will remain closed until power is supplied. See Chapter 2 for wiring instructions.

  • Page 24: Smarttrak Features

    SmartTrak Features Setpoint Adjustment The setpoint (command) input signal you supply to SmartTrak must be a direct linear representation of 0% to 100% of the mass flow full-scale value. Apply the setpoint signal from pin 8 to any of the analog grounds (see Chapter 2 for wiring details). A setpoint value of 0 VDC or mA (or 1 VDC or 4 mA) will regulate the flow to 0% and a setpoint value of 5.00 VDC (or 10 VDC or 20 mA) will adjust the flow to 100% of the instrument’s full scale range.

  • Page 25: Manual Valve Override-Valve Purge Function

    FOR VALVE CLOSE: connect pin 12 to analog ground Remember that the valve in the SmartTrak is not a positive shut-off device. The Controller will return to normal automatic operation about 4 seconds after pin 12 is left floating. Manual Valve Override—Valve Purge Function The purge function opens the controller valve completely for the purpose of quickly flushing unwanted gas from the flow path.
  • Page 26 IMPORTANT SAFETY NOTES ABOUT PURGING WARNING: When toxic or corrosive gases are used, purge unit thoroughly with inert dry gas before disconnecting from the gas line to prevent personnel from being injured when coming in contact with the instrument. WARNING: If an instrument used with a toxic or corrosive gas is returned to the factory, a Material Safety Data Sheet (MSDS) must be enclosed &...

  • Page 27: Chapter 4: Digital Operation With Pilot Module

    CHAPTER 4: Digital Operation with Pilot Module Your SmartTrak instrument may be operated in three different ways: THREE CONTROL OPTIONS A. Analog Input/Output Operation (Chapter 3): Using analog input/output signals at the HD DB-15 connector. B. Digital Operation with Pilot Module (This Chapter): Using the optional Pilot Module.
  • Page 28 On the other hand, if your instrument has a Remote Pilot Module, attach one end of the included Category 5 (CAT 5, also called RJ-45) connecting cable into the jack at the top of the instrument’s left side, immediately above the HD DB-15 connector. Next, place the other end into one of the two matching jacks on the Pilot Module.

  • Page 29: Pilot Module Operation, Mass Flow Meters

    These are shown in the photo below: Up, Down, Left, Escape Right Pilot Module Operation, Mass Flow Meter After your instrument is installed and the system has undergone a complete leak check as discussed in detail in Chapter 2, follow these steps: 1.

  • Page 30: Pilot Module Operation, Mass Flow Controllers

    NOTE: If gas is flowing the Pilot Module will immediately begin to accuratelydisplay the gas mass flow rate on the LCD panel. If you have chosen alternate units or another gas, the display will show the selected units instead of the above. 2.
  • Page 31 If no gas is flowing, after another 5-10 seconds the display will read: Mass Flow 0.000 sl/m NOTE: If gas is flowing and the Pilot Module has a setpoint greater than zero, it will immediately begin to accurately display the gas mass flow rate on the LCD panel. If you have chosen alternate units or another gas, the display will show the selected units instead of those above.
  • Page 32  Current Setpoint with units  Source of Setpoint (analog or digital and type)  Valve operation mode (normal, valve close or purge)  Current meter full scale value with units (user selectable) 2 Lower Level Screens: permit changes to instrument operation. They are password protected. These include: ...
  • Page 33 Map of the Pilot Module Interface The Pilot Module user interface is presented below in a graphical format. Once you have some familiarity with the user interface, you may find you want to make a copy of this and keep it with the instrument for reference. You can find a larger version of this Flow Chart in Appendix G.
  • Page 34 The seven Upper Level Screens display a variety of information. You are able to move between the screens by pressing the left or right arrows. No password is required for the Upper Level Screens. Mass Flow Screen When the instrument is powered up, or whenever the escape button is pressed, it always returns to the Mass Flow Screen.
  • Page 35 The state of the valve can be: 1. Closed (Remember that the SmartTrak is not a positive shut-off device). 2. Purge--Maximum Open (recommended 120% of the calibrated full scale value, but can be much more and can be dangerous) 3. Automatic (the normal position, where the controller responds to a setpoint signal). WARNING: The flow rate in Purge is muchgreater than the calibrated full scale value and as a result can be dangerous.
  • Page 36 Lower Level Screens (Changing Parameters) Getting to the Lower Level Screens: Your instrument is password protected so that unauthorized personnel will be unable to change the operating parameters of SmartTrak. To enter the Lower Level Screens at any time you must first supply the correct password. Password Screen: By pressing the “enter”...
  • Page 37 LOST PASSWORDS & GENERAL CUSTOMER SERVICE: If you lose your password, it will be necessary to contact one of Vögtlin’s Technical Support Centers. Email Customer Service: service@vogtlin.com Worldwide with exception of China: Vögtlin Instruments GmbH Phone +41 61 756 63 00...

  • Page 38: Making Changes Using The Lower Level Screens

    Making Changes Using the Lower Level Screens: The ten Lower Level Screens are at the heart of Dial-A-Gas®, allowing you complete control of your SmartTrak instrument. It is possible to make several changes on different Lower Level Screens before exiting. For example, you could change between one of the ten pre-programmed gases, change the engineering units, and change the setpoint all in one visit to the Lower Level Screens.
  • Page 39 Change Setpoint 12.50 sl/m Now that you have made your selection, press the enter key. The display from our example will show: Change Setpoint 12.50 sl/m If you are finished or wish to observe the changes you have made on the LCD panel, press the escape key to return to the Upper Level Mass Flow Screen.
  • Page 40 If you wish to change the engineering units, press the enter button at this point. The “mass units” will begin to blink. Use the up or down arrows to select an alternate unit. You can choose from the following mass units: kg lb When you are satisfied, push the left or right arrow.
  • Page 41 If you wish to change the gas used in the instrument, press enter. The name of the gas will blink. Use the up and down arrows to make your selection. When you reach the desired gas, press enter. You will see: Change Gas XXXX You can make additional changes by using the left and right arrow keys to move to other...
  • Page 42 NOTE: The valve will move to the desired position immediately when you press the enter key. IMPORTANT SAFETY NOTES ABOUT PURGING WARNING: When toxic or corrosive gases are used, purge unit thoroughly with inert dry gas before disconnecting from the gas line to prevent personnel from being injured when coming in contact with the instrument.
  • Page 43 When you are satisfied, press enter. You will see: Change Setpoint Source X-XX XX You can make additional changes by using the left and right arrow keys to move to other Lower Level Screens. You may also choose to press the escape key to return to the Upper Level Screens.
  • Page 44 Change Output Signals X-XX XX/X-XX XX You can make additional changes by using the left and right arrow keys to move to other Lower Level Screens. You may also choose to press the escape key to return to the Upper Level Screens.
  • Page 45 You can make additional changes by using the left and right arrow keys to move to other Lower Level Screens. You may also choose to press the escape key to return to the Upper Level Screens. Change Span Screen If you are already in the Lower Level Screens, push the right or left arrow until you reach the Change Span screen.
  • Page 46 to be used, minding orientation, tilt, etc.; The accuracy of this function is dictated on how close to operating conditions the unit is when the meter is zeroed. The display will show: Zero Meter Confirm zero flow Then press enter Once you push enter, the unit will monitor the sensor bridge differential value.

  • Page 47: Lost Passwords And General Customer Service

    The “creator” password is 6363- this will override all other passwords. If this does not work, it will be necessary to contact one of Vögtlin’s Technical Support Centers. Email Customer Service: service@vogtlin.com Worldwide with exception of China: Vögtlin Instruments GmbH...

  • Page 48: Chapter 5: Digital Operation Rs-232 & Smarttrak Software

    CHAPTER 5: Digital Operation RS-232 & SmartTrak Software Your SmartTrak instrument may be operated in three different ways: THREE CONTROL OPTIONS A. Analog Input/Output Operation (Chaper 3): Using analog input/output signals at the 15-pin mini- D connector. B. Digital Operation with Pilot Module (Chapter 4): Using the optional Pilot Module. C.

  • Page 49: Power Up Your Instrument

    1. Top Level Screens that display information In our software, these screens appear as yellow boxes. They include:  Mass flow rate  Gas (10 options pre-programmed, one must be AIR)  Engineering units (mass per unit time)  Current Setpoint with units ...

  • Page 50: Power Up Your Computer

    If you want to upgrade the SmartTrak Software because you have a higher revision, continue below. The SmartTrak Software. Can be found on the Vögtlin website. (See www.vogtlin.com). Download his software from our website onto your PC.

  • Page 51: Connecting Smarttrak To Your Computer

    Connecting SmartTrak to Your Computer If your computer has a serial port… We suggest you use the optional Vögtlin Instruments RS-232 communication cable (part number CRN). This pre-manufactured cable has the correct DB9 connection to mate with most computers and a CAT 5 connector which should be connected to the jack on the side of your new instrument.
  • Page 52 CAT 5 HD DB 15 Figure 5-1: SmartTrak Connections If you do not have the Pilot Module display, you can connect pins 7 (serial transmit), 13 (serial receive) and 3 (analog ground) on the instrument’s 15-pin mini- D Connector to an...

  • Page 53: If Your Computer Has No Serial Port, But Has A Usb Port

    appropriate serial port using a standard DB-9 connector instead of using the supplied CRN cable (see Chapter 2 for wiring instructions). If you use the mini-D connector for your RS-232 communication, please shield the cable to prevent EMI from disrupting communications.

  • Page 54: If You Plan To Control More Than One Smarttrak Instrument From Your Computer

    software driver into your computer to operate the converter (software and instructions should come with the converter). Your computer will assign a Comm Port number to your USB adapter, but it will probably not be “Comm Port 1.” Use the Control Panel feature of your computer to identify which Comm Port number has been assigned to your USB adapter.
  • Page 55 Select the comport pull down menu: Use the pull-down menu to choose the port number that corresponds to the serial port channel your SmartTrak is connected to (from 1 to 255). If you have only one serial port, select “Comm Port 1.” When finished, click on the box marked “OK.” You will be returned to the the SmartTrak Master Screen.
  • Page 56 Proceed to the next section. If the screen appears, but the yellow and white boxes are all empty, you have selected the wrong “Com Port number.” See the section titled “Com Port” on page 5-16 for instructions on how to change the communication port number. If the screen appears, but only the Mass Flow box shows a value, you are using the correct Com Port, but your computer is not talking to the SmartTrak.
  • Page 57 Using the SmartTrak Software Upper Section of Software Window Across the upper half of the SmartTrak Software window you will see 3 yellow boxes. These are titled:  Flow  Setpoint (flow controllers only. Will show zero for meters)  Full Scale These boxes display the current operating conditions of your SmartTrak instrument.
  • Page 58 Flow The box displays the mass flow rate, the engineering units, the gas choice and the analog output choice. Setpoint If you have a Mass Flow Meter, this box is zero (as shown above). The Setpoint box displays the current setpoint given to the flow controller, the engineering units, the source of the setpoint signal, the current valve state (open, closed or purge) and the dac values for the valve (for Vögtlin troubleshooting only).
  • Page 59 Note on Valve If you have a Mass Flow Meter, this information can be bypassed. For normal operation of Automatic. the flow controller, this line should display If this is visible, the instrument will automatically control flow as soon as a setpoint is given to it. If this box does not display “Automatic,”...
  • Page 60 B. Lower Section of Software Window– Changing Parameters Across the bottom half of the screen you will find a number of white boxes. Each box allows you to adjust one or more meter functions. The various functions are reviewed in the following section.
  • Page 61 Change Valve Operation –Automatic, Close, Purge This function enables or overrides any setpoint command given to the SmartTrak. At Automatic: start-up, the box will show In this normal operating position, the valve is ready to control flow when it receives a setpoint from some source.
  • Page 62 Choose the correct gas for your current application and click. The new gas selection will appear in the box. Within a few seconds, the new gas selection will also appear in the yellow Flow box and the values of the mass flow, setpoint and the full scale will be adjusted for this new gas.
  • Page 63 C: ADJUSTMENTS: Clicking on “adjustments” brings up the meter settings screen.
  • Page 64 This screen allows for zeroing, spanning and adjusting the full scale for each of the 10 gases in the gas table individually. The screen will be displayed for the gas selected in the gas table on the main screen Caution: the values in this screen can be set individually for each of the 10 gases. MODIFICATIONS of this screen will only be applicable to the gas displayed.
  • Page 65 offset. Also, the best zero is obtained by using the actual gas at the listed operating pressure. After 30 minutes, if your zero reading and/or calibration are off (i.e. show flow at zero), we recommend that you perform the re-zeroing procedure. Refer to page 45 “Zero Meter Screen”...
  • Page 66 For example, the meter reads 98. The desired reading is 100. A span value of 1.02 will adjust the meter output to read 100. Caution: this number should not be adjusted beyond 0.8 to 1.2. Change full scale: This setting allows you to change the full scale of your instrument The instrument will display its current full-scale value.
  • Page 67 The instrument’s maximum flow rate is also recorded on the data label (at the back of the instrument) and on the calibration certificate. You may select any full-scale value between 100% and 50% of the maximum full-scale value. If you select a new full-scale value, it will re-define the analog outputs of the instrument.
  • Page 68 Here are some guidelines to remember if you choose to modify the Full Scale Value: Changing the full-scale value of the instrument does not affect the accuracy of the measurement. Instrument accuracy is a percentage of the original factory full-scale value If you enter a full-scale value beyond the instrument’s calibrated maximum range, the SmartTrak will automatically modify the full-scale to equal the factory full-scale value.
  • Page 69 Read Controller Parameters Use this function if you believe your computer and your SmartTrak instrument may have stopped communicating. It is essentially a re-boot command for the SmartTrak microprocessor. When you switch Comm Ports, it is recommended that you use this function.

  • Page 70: Chapter 6: Technical Support & Service

    Fax +41 61 756 63 01 Langenhagstrasse 1 CH-4147 Aesch BL info@voegtlin.com Switzerland www.vogtlin.com China: KEM flow technology (Beijing) Co., Ltd. Phone +86 10 849 29 567 Rm. 906, Block C, Ruipu Office Bldg, Fax +86 10 520 03 739 No.

  • Page 71: Factory Calibration-All Models

    Please follow these easy steps to return your instrument for factory service: Obtain a Return Materials Authorization (RMA) number from the Vögtlin Instruments website at Vogtlin.com If you require service beyond calibration, but do not know which service(s) will be required, describe the symptoms as accurately as possible on the RMA form.
  • Page 72 5 Harris Court, Building L Monterey, CA 93940 USA RE: RMA# (your number) IMPORTANT SAFETY NOTE ABOUT PURGING WARNING: When toxic or corrosive gases are used, purge unit thoroughly with inert dry gas before disconnecting from the gas line Personnel of the potential hazard. Also, make sure the inlet & outlet...
  • Page 73 are solidly plugged off.to prevent personnel from being injured when coming in contact with the instrument. WARNING: If an instrument used with a toxic or corrosive gas is returned to the factory, a Material Safety Data Sheet (MSDS) must be enclosed &...
  • Page 74 Appendix A: C100/M100 SmartTrak Product Specifications, Dimensions and Mounting...
  • Page 75 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 76 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 77 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 78 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 79 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 80 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 81 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ® Appendix B: C101/M101 MicroTrak™ Product Specifications...
  • Page 82 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 83 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 84 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ® Appendix C: C140M Ultra-Low ΔP Product Specifications, Dimensions and Mounting...
  • Page 85 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 86 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 87 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 88 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ® Appendix D: 100HP SmartTrak Product Specifications, Dimensions and Mounting...
  • Page 89 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 90 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 91 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 92 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ®...
  • Page 93 Please read this Safety Guide in its entirety, the Quick Install Guide, and refer to the SmartTrak 100 Series Instruction Manual, Chapter 2 for complete installation and operation instructions. Ultra-High Pressure Specifications The 100HP mass flow controller or meter can be used for a variety of flow rates, pressure drops, inlet pressures, and gas types.
  • Page 94 General operation, display interface, PC software and electrical installation are same as a standard SmartTrak 100 Series mass flow meter and controller. Verify proper connection of all pressure sources and electrical signals prior to applying pressure or power to the 100HP. See...
  • Page 95 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ® Pressure Drop & Hyper-Cooling Cautions For specific minimum required pressure drops for given flow rate, gas and known inlet pressure, consult the factory. Flow of high pressure gases through a constriction causes cooling, because the gas robs latent energy as it transitions energy from potential to kinetic.
  • Page 96 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ® Appendix F: Gas Tables & K-factors (same for all 100 Series) SmartTrak Pre-programmed Gases: Dial-A-Gas The following gases have been programmed into the SmartTrak instrument in this order. If you are using one of these gases, you may use the Dial-A-Gas feature in either the Pilot Module or the Software Package and the instrument will adjust the outputs automatically.
  • Page 97 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ® Gas Tables and K-factors Elastomers* Chemical K-factor Density Density Actual Gas Symbol Relative (Cal/g) (g/l) @ (g/l) @ O-ring Valve to Air 70°F 0°C Seat Acetylene .581 .4036 1.079 1.162 1.000 .240 1.200 1.293 Allene (Propadiene)
  • Page 98 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ® Actual Gas Chemical K-factor Density Density Elastomers* Symbol Relative (Cal/g) (g/l) @ (g/l) @ O-ring Valve 70°F 0°C Seat Dichloromethylsilane SiCl .251 .1882 5.345 5.758 Dichlorosilane .401 .150 4.183 4.506 Dichlorotetrafluoroethane .220 .1604 7.079 7.626...
  • Page 99 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ® Chemical K-factor Density Density Elastomers* (g/l) @ Actual Gas Symbol Relative (Cal/g) (g/l) @ O-ring Valve 0°C 70°F Seat Methyl Mercaptan .521 .2459 1.992 2.146 ) SiCl Methyl Trichlorosilane .251 .164 6.191 6.669 Molybdenum Hexafluoride .210...
  • Page 100 Vögtlin Instruments Instruction Manual SmartTrak 100 Series ® Appendix G: (same for all Flow Chart for Pilot Module User Interface 100 Series) NOTE: If you press the escape key at any time, you will immediately return to the main Mass Flow screen in the Upper Level.
  • Page 101 Vögtlin Instruction Manual SmartTrak Series ® Appendix H: PIN Configuration (same for all 100 Series) Figure 2-4: Wiring Definitions for Optional Communication Cable Pin # Wire Color in Cable Function Brown Analog Ground/Output 0-5 VDC Output (or 0-10, 1-5 VDC ) Orange Analog Ground/RS232 Pink...
  • Page 102 Vögtlin Instruction Manual SmartTrak Series ® NOTE: Pins 1, 3, and 10 are connected together inside the instrument. Do not tie these grounds together outside the instrument. Must have one connection per analog ground. Recommended use listed. NOTE: Unused cable wires should be isolated and insulated from one another or damage could occur.
  • Page 103 Vögtlin Instruction Manual SmartTrak Series ® FLOW DESCRIPTION FLOW makes the streaming mode data = flow only. If meter is in streaming mode, this data will stream until a FLOWwSETPOINT, FLOWwSETPOINTwDAC or TOTALwDIFFwDAC is sent to the meter. If not in streaming mode then one flow will be return with each FLOW command sent.
  • Page 104 Vögtlin Instruction Manual SmartTrak Series ® setpoint. This would be the setpoint after a power down. ASCII String commands '?Setf + CRC + cr' Version 2.xx read command '!Setf + value + CRC + cr' Version 2.xx write command Returns ASCII string 'Setf + valueSetpoint + CRC + cr' Values are a string of digits and an optional decimal place: '10.00' CRC=redundancy check bytes;...
  • Page 105 Vögtlin Instruction Manual SmartTrak Series ® Returns ASCII string 'Unti + unitIndex + CRC + cr' unitIndex is an integer string value of 1 to 30 CRC=redundancy check bytes; cr=carrage return byte. VALVE_INDEX DESCRIPTION VALVE_INDEX selects the state of the valve. Automatic = 1, Closed = 2, Purge = 3. This is a write to flash memory command.
  • Page 106 Vögtlin Instruction Manual SmartTrak Series ® continuously send data back. If a read or write command needs to update more than one value, all values with be sent back on write command. ASCII STRING COMMANDS '?Strm + CRC + cr' Version 2.xx read command '!Strm + streamString + CRC + cr' Version 2.xx write command Returns ASCII string 'Strm + streamString + CRC + cr' streamString = "On", "Off", "Echo"...
  • Page 107 Vögtlin Instruction Manual SmartTrak Series ® SYNC DESCRIPTION Sync returns the following events, VersionNumberEvent, SerialNumberEvent, DataEvent, ManufactureNumberEvent, TypeEvent, PassWordEvent, SetpointEvent, FullScaleEvent, GasNameEvent(10 times for all gas names), GasIndexEvent, GasSpanEvent(current gas only), SetpointIndexEvent, OuputIndexEvent, UnitIndexEvent, ValveFlashEvent, StreamEvent, SyncEvent ASCII STRING COMMANDS '?Sync + CRC + cr' Version 2.xx read command Returns ASCII string 'Sync + ""...
  • Page 108 Vögtlin Instruction Manual SmartTrak Series ® Below is the routine used to calculate the CRC bytes in C#. Comments are between the /* private static uint CalcCRC(byte[] cmnd) /* cmnd is a byte array containing the command ASCII string … cmnd[]=”Sinv2.000” */ /* An unsigned 32 bit integer is return to the calling program */ /* only the lower 16 bits contain the crc */ i,j;...
  • Page 109 Vögtlin Instruction Manual SmartTrak Series ® private static uint CalcCRC(byte[] cmnd)
  • Page 110 Vögtlin Instruction Manual SmartTrak Series ® i,j; uint crc; crc=0xffff; (i=0; i<cmnd.Length; i++) crc=crc^((uint)(cmnd[i]*0x0100)); for(j=0; j<8; j++) if((crc&0x8000)==0x8000) crc=((crc<<1)^0x1021)&0xffff; else crc=(crc<<1)&0xffff; if((crc&0xff00)==0x0d00) crc +=0x0100; if((crc&0x00ff)==0x000d) crc +=0x0001; if((crc&0xff00)==0x0000) crc +=0x0100; if((crc&0x00ff)==0x0000) crc +=0x0001; return crc; CRC ROUTINE IN MS VISUAL BASIC: Public Sub SendPacket(packet As String) Dim crcBytes() As Byte Dim crcLen, vpacket...
  • Page 111 Vögtlin Instruction Manual SmartTrak Series ® Else...
  • Page 112 Vögtlin Instruction Manual SmartTrak Series ® crcWord = crcWord * 2...
  • Page 113 Vögtlin Instruction Manual SmartTrak Series ® End If crcWord = (((crcWord * 2) And &H1FFFE)) / 2 Next i Next j If (crcWord And &HFF00) = &HD00 Then ' carriage char not allowed crcWord = crcWord + &H100 ' make this byte &h0exx End If If (crcWord And &HFF00) = &H0 Then ' zero char is death...
  • Page 114 Vögtlin Instruction Manual SmartTrak Series ® Appendix J: Warranty Policy LIMITED WARRANTY POLICY- REGISTER ONLINE All Vögtlin products are warranted to be free from defects in material and workmanship and will be repaired or replaced at no charge to Buyer, provided return or rejection of product is made within a reasonable period but no longer than one (1) year for calibration and non-calibration defects, from date of delivery.
