Summary of Contents for Vogtlin TEESING Q-Flow Series

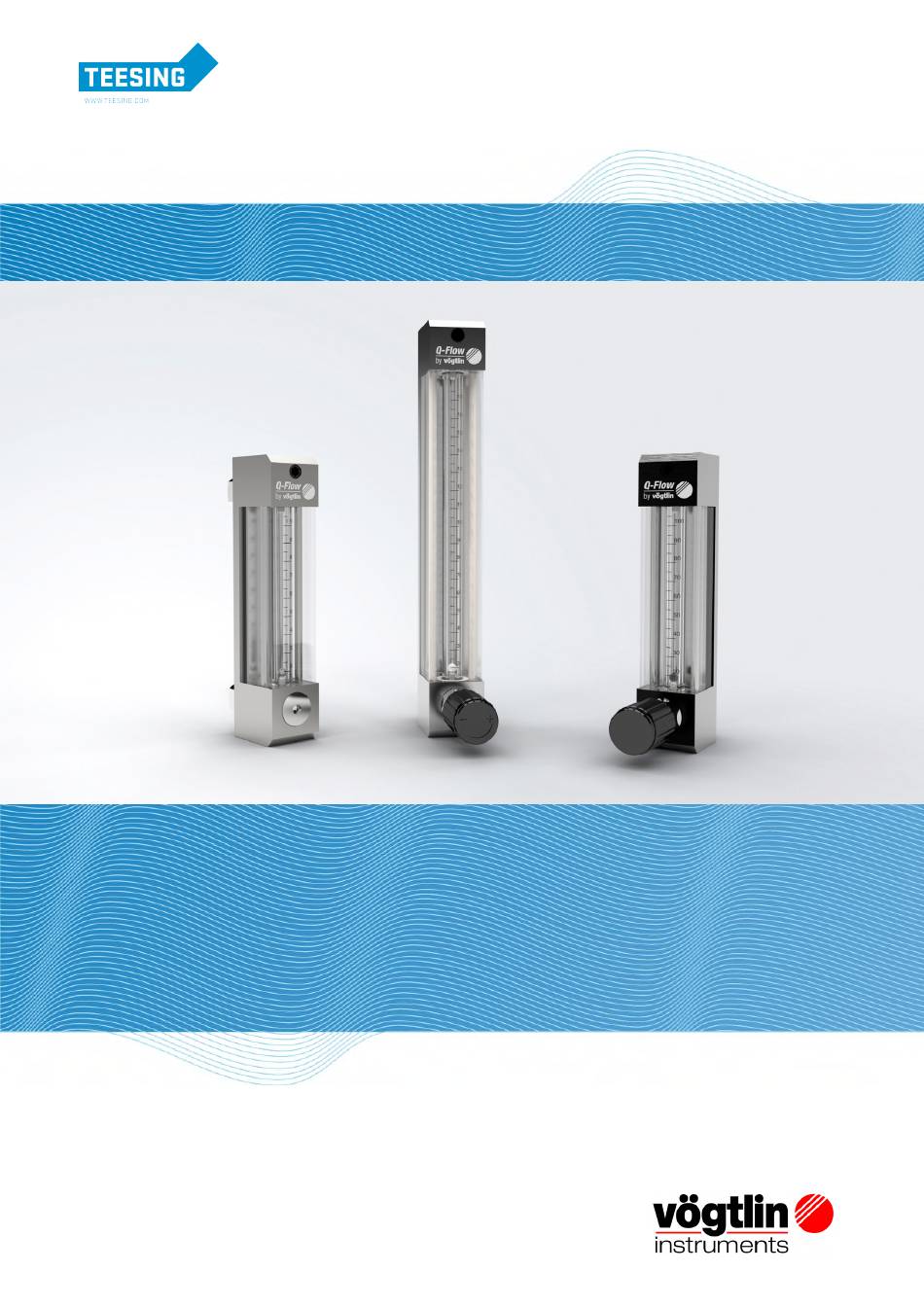

- Page 1 Instruction Manual Variable area flow meter Q-Flow WWW.TEESING.COM | +31 70 413 07 50...
- Page 2 Original Instruction Manual Variable area flow meter Q-Flow Version: qflow_D5_0 Current information on our products can be found on the Internet at www.voegtlin.com © 2019 Vögtlin GmbH, Switzerland Instruction Manual Version Page Q-Flow qflow_D5_0 © Vögtlin Instruments GmbH WWW.TEESING.COM | +31 70 413 07 50...
- Page 3 Index Introduction Product description and intended use Intended use Safety Instructions Copyright and privacy policy Disclaimer Warranty Predictable risks Corrosive Gases Information on the type plate Operating principle of the variable area flowmeter Construction of the variable area flow meter Q-Flow Technical Information Technical data Q-Flow Wetted Materials Q-Flow...
-
Page 4: Product Description And Intended Use
Introduction We are glad that you have decided to use our variable area flow meters. Our instruments will provide you with high-quality long-lived products. These operating instructions provide you with important information for the planning and commissioning of your systems with regard to the safe use of variable area flowmeters. Please contact your distribution partner if anything is not clear. -
Page 5: Warranty
Copyright and privacy policy We have prepared this operating manual with all due care. However, no responsibility is taken for the correctness, completeness and topicality of the contents. This document is subject to copyright. Processing, in particular translation into another language, as well as distribution require the written consent of the manufacturer. - Page 6 Vögtlin Instruments GmbH Instruction Manual Version Page Q-Flow qflow_D5_0 © Vögtlin Instruments GmbH WWW.TEESING.COM | +31 70 413 07 50...
- Page 7 Predictable Risks Before commissioning the system, the operator must take appropriate precautions to ensure that the environment and/or persons are protected in the event of a fault. The safe operation of the measuring instruments must be taken into account in advance in the safety analysis.
-
Page 8: Corrosive Gases
Corrosive Gases The operator is solely responsible for the safe operation of the system and takes precautions to protect the environment and/or persons in the event of leaks. The instrument may only be operated with the gases for which the instrument has been designed and specified. -
Page 9: Information On The Type Plate
Information on the type plate The type plate on the Q-Flow is located on the back of the carrier plate and must not be removed. Example: Key: Serial number Order number or subject of the customer 05/17 Date of manufacture, month/year Typ: Specification according to type code (standard devices only) Medium, measuring range, unit, pressure, temperature &... - Page 10 Operating principle of the variable area flowmeter The measuring instrument works according to the float measuring principle The measuring unit consists of a tapered graduated precision glass measuring cylinder in which a ball float can move freely up and down. The medium flows through the vertically-aligned measuring cylinder from the bottom upwards The float positions itself so that the buoyancy force A acting on it, the form resistance W and its weight G are in balance:...
-
Page 11: Technical Information
Construction of the variable area flow meter Q-Flow Output Process connection Plexiglass splinter protection Mounting plate with rear mounting holes Measuring tube Float Valve Input Process connection Mounting position vertical Flow direction from bottom to top Technical Information Technical data Q-Flow Subject Q-Flow 80 Q-Flow 140... - Page 12 Wetted Materials Q-Flow Component Material Standard Material optional Top and base body Anodized aluminum SS 1.4305 (AISI 303) Mounting plate Anodized aluminum Measuring cylinder Borosilicate glass Connections SS 1.4305 (AISI 303) Float SS 316 L / Glass / Ceramic Valve Nickel-plated brass SS 1.4305 (AISI 303) Seals...
- Page 13 Variants of the valve rotary knobs Standard rotary knob Rotary knob with locking ring Hexagon socket with lock nut (instead of rotary knob) Union nut / Check nut AF 13 Hexagon socket 3 mm Instruction Manual Version Page Q-Flow qflow_D5_0 ©...
- Page 14 Measuring ranges air Technical specifications and/or dimensions are subject to change without notice. Instruction Manual Version Page Q-Flow qflow_D5_0 © Vögtlin Instruments GmbH WWW.TEESING.COM | +31 70 413 07 50...
- Page 15 Notes on the configuration and specification of variable area flowmeters When designing variable area flowmeters, misunderstandings often occur and, consequently, misuse in practice. We would be grateful if you would take a few minutes to read these instructions and complete the specification sheet. Pressure and temperature dependence Variable area flowmeters are highly dependent on the temperature and pressure in the...
- Page 16 Installation situations of variable area flowmeters Without control valve Output to environment (unpressurized) The flow is generated by setting a certain pressure at the pressure reducer. Output with back pressure (constant) Back pressure..bar g The flow is generated by setting a certain pressure at the pressure reducer.
- Page 17 With control valve at outlet Output with back pressure (variable) Back pressure ………..to………..bar g Inlet pressure ……...bar g Vacuum pump Performance vacuum pump …….mbar negative pressure at ……ln/min Inlet pressure ……...bar g Vacuum pump Performance vacuum pump Environment input …….mbar negative pressure at ……ln/min (suction mode) I cannot assign my measuring task to any situation Please sketch here...
-
Page 18: Installation And Commissioning
Installation and commissioning Installation instructions The flowmeters may only be installed and commissioned by qualified personnel. The pipeline must be free of particles and moisture before installation of the measuring instrument. Please flush it before mounting the instrument in the pipe. ... -
Page 19: Disassembly And Maintenance
Disassembly and maintenance Important instructions Please close the gas supply, flush the pipes and then close any shut-off valves. Make sure that the line is depressurized and that no dangerous gas can enter the environment. You can then start removing the meter. Only use suitable tools for this purpose. The removal and installation of the measuring instruments may only be carried out by qualified personnel. - Page 20 Panel mounting Q-Flow For mounting, the panel opening must be prepared according to the diagram. Screw the two mounting brackets onto the instrument as shown. Screw the setscrew supplied into the connector and insert the instrument into the aperture from the front.
-
Page 21: Maintenance
Maintenance When used correctly, variable area flow meters from Vögtlin Instruments AG do not require any maintenance. Pollution The following symptoms indicate pollution: The set value can no longer be reached – the control valve is probably soiled The measured value increases although the effective flow rate has not been changed - measuring tube is dirty. - Page 22 Appendix Dimensions Q-Flow Instruction Manual Version Page Q-Flow qflow_D5_0 © Vögtlin Instruments GmbH WWW.TEESING.COM | +31 70 413 07 50...
-
Page 23: Contamination Declaration
Contamination declaration With return of devices, please fill out the following statement completely, especially the reason for the return, the type of residue and cleaning in the case of soiling, as well as indication of hazards. Device: Type code: Serial number: Reason for return: Type of contamination Device came in contact with:... - Page 24 Change log Date Version Replaces Author Note 01.03.2010 vflow_D4_3 vflow_D4_2 Page 21 / New Article Code 17.01.2011 vflow_D4_4 vflow_D4_3 Page 9, 10: Material of limit stop added 07.05.2012 vflow_D4_5 vflow_D4_4 Page 18 / Sealing Material 02.04.2014 vflow_D4_6 vflow_D4_5 Page 31 / Drawing 22.04.2014 vflow_D4_7 vflow_D4_6...
