Synargy OUTER SPACES HELSINKI 3 PCE CHAT SET Assembly Instructions

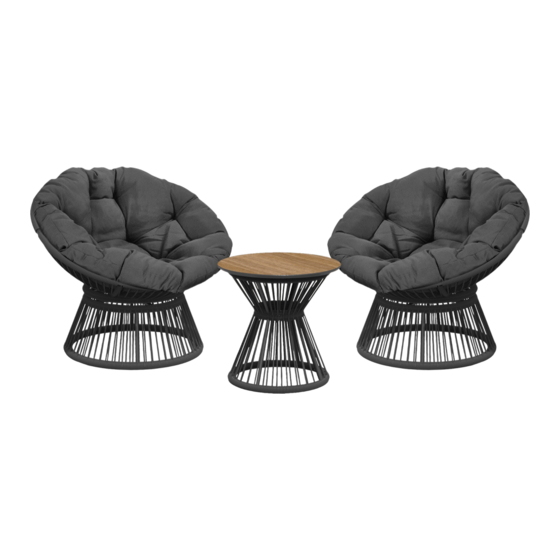

HELSINKI 3 PCE CHAT SET

ASSEMBLY INSTRUCTIONS

1. PLEASE SEPARATE AND IDENTIFY ALL PARTS, MAKING SURE THAT YOU HAVE ALL OF THE PARTS LISTED.

2. TO AVOID ANY SCRATCHES DURING ASSEMBLY, PLEASE ASSEMBLE ON A SOFT MAT OR SIMILAR.

3. PLEASE ASSEMBLE STEP BY STEP AND FOLLOW THE INSTRUCTIONS.

4. WASHERS MUST BE USED.

5. WHILE EACH SCREW AND NUT IS PROPERLY FASTENED, DO NOT OVER FASTEN IT.

6. DO NOT COMPLETELY FASTEN EACH SCREW AND NUT UNTIL ALL THE SCREWS ARE PROPERLY FIXED.

Ax2

Gx16

Hx3

HELSINKI 3 PCE CHAT CHAIR

Bx2

Cx2

Ix19

Jx1

Dx2

Ex1

www.synargy.com

Fx 1

Table of Contents

Need help?

Do you have a question about the OUTER SPACES HELSINKI 3 PCE CHAT SET and is the answer not in the manual?

Page 1 4. WASHERS MUST BE USED. 5. WHILE EACH SCREW AND NUT IS PROPERLY FASTENED, DO NOT OVER FASTEN IT. 6. DO NOT COMPLETELY FASTEN EACH SCREW AND NUT UNTIL ALL THE SCREWS ARE PROPERLY FIXED. Fx 1 Gx16 Ix19 www.synargy.com...
Page 2 Allen key (J) to fix seat base (B) on seat top (A) with bolts (G) on seat base (B) with bolts (G) and washers (I) and washers (I) as picture. as picture. Put seat cushions (D) on chair frame, and now your chair is ready to use. www.synargy.com...
Page 3 Allen key (J) to fix table base (F) and top together as picture with bolts (H) and washers (I). Turn upside down the whole side table, and now it is ready to use. For care and maintenance tips please visit: synargy.com/product-care www.synargy.com...
