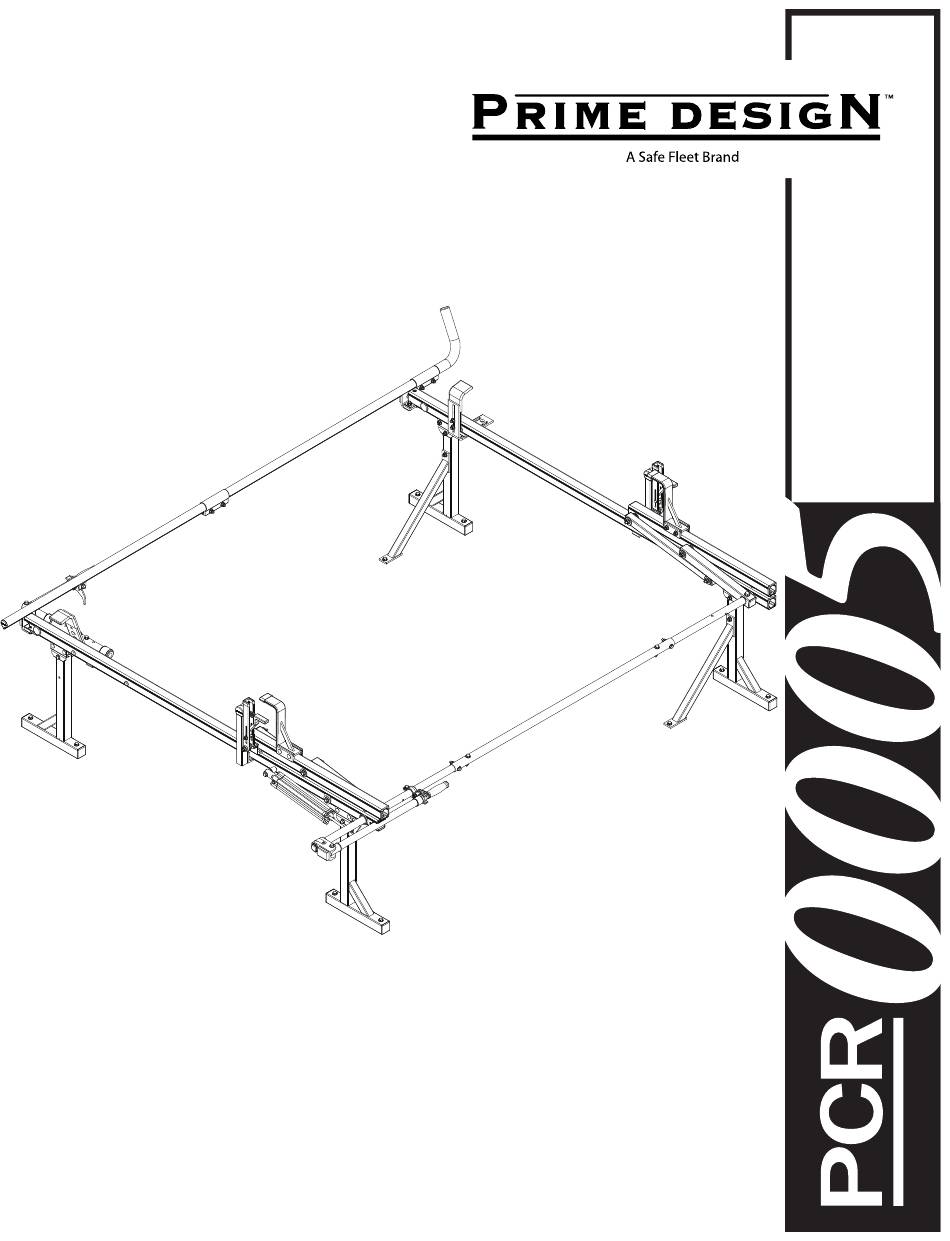

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW 1—FBM-0067 ............(Qty 1) Utility Elevated Base Mounting w/hardware Bracket Braces (2X) Mounting Brackets (4X) M8 x 65MM (10X) Fender Washer (10X) Neoprene Washer (10X) " Flat Washer (14X) M8 Lock Nut (12X) M8 x 30MM (2X) 2—Rear Crossbar Assembly ........(Qty 1) 3—Front Crossbar Assembly ......... - Page 3 4—Rear Drive Shaft ..........(Qty 1) Right Hand, 34.00” 5—Handle Latch Assembly ........(Qty 1) 6—Connecting Bar ..........(Qty 1) 48.00’ 7—Front Drive Shaft ..........(Qty 1) B Version, 35.75” 8—Z Post ..............(Qty 2) Adjustable, 7.25” 9—L Post..............(Qty 2) Roller Cap, 9.25”...
- Page 4 15—Clamp Down Handle Assembly ..... (Qty 1) M8 x 45MM (1X) Clamp Down Handle (1X) M8 Lock Nut (1X) " Flat Washer (2X) 16—HKT-8163 (Not called out in Overview) ..(Qty 1) M8 x 25MM (1X) M8 x 50MM (4X) ⅜"...
- Page 5 FBM-0067 Install all Mounting Brackets using supplied hardware. 10.00” Front 14.25” F r o 2.875” R e a 84.00” 69.75” M8 X 65MM Flat Washer Neoprene Washer Fender Washer Rear M8 Lock Nut 56.00” 76.00” Attach Brace using supplied Apply Anti-Seize to Mounting hardware.
-
Page 6: Assembly Sequence
RIGHT ROTATION ASSEMBLY SEQUENCE 3/10 CROSSBARS CROSSBAR ADJUSTMENT Even Front Even F r o Even Rear Even Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). -
Page 7: Front Drive Shaft
REAR DRIVE SHAFT CYLINDER HARDWARE Torque to 80 in-lbs Torque to 120 in-lbs CONNECTING BAR FRONT DRIVE SHAFT Torque to 120 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 8 8 8 8 CONNECTING BAR FASTENERS DRIVE SHAFT SEALING Apply Silicone Sealant to Connecting Bar ends Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 9 L POSTS Prepare the L Post by removing the hex head bolt, lock washer, flat washer, and Bracket Clamp. Retain for SEE QUICK START GUIDE FOR ADJUSTMENTS installation Steps 8.4-8.8. NOTE: The Auto Clamps may come preset from the factory for packaging purposes only.
- Page 10 Z POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS Slide the L Post until parallel Slide the Z Post into the Mounting Clamp Assembly. to the Auto Clamp and the gap between the two is even from top to bottom. Torque to 80 in-lbs Ensure both Z Post Mounting Clamps are fully seated into...
- Page 11 LEFT CLAMP DOWN ASSEMBLY SEQUENCE CLAMP DOWN HANDLE CLAMP DOWN TUBE 12.1 12.2 12.3 Torque to 90 in-lbs 12.4 Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 12 HANDLE LATCH Set Clamp Down Horn 12.4 to angle shown. View from vehicle front 12.5 Torque to 90 in-lbs 13.1 Do not tighten until Step 13.3 FRONT LADDER HOOK Position the Handle Latch until the 13.2 Handle Grip is firmly seated. SEE QUICK START GUIDE FOR ADJUSTMENTS Remove and retain the Front Ladder Hook fastening hardware 14.1...
- Page 13 Place the Front Hook Clamp Bracket removed in Step 14.1 Reassemble the Front Clamp Down Tube Holder 14.4 14.3 into the lower groove of the Crossbar, and slide it on top of using the fastening hardware removed at Step the Front Ladder Hook Clamp 14.1.
- Page 14 Page Intentionally Left Blank...
- Page 15 Page Intentionally Left Blank...
- Page 16 USAM-PCR0005-US01 Rev-B 0517...
