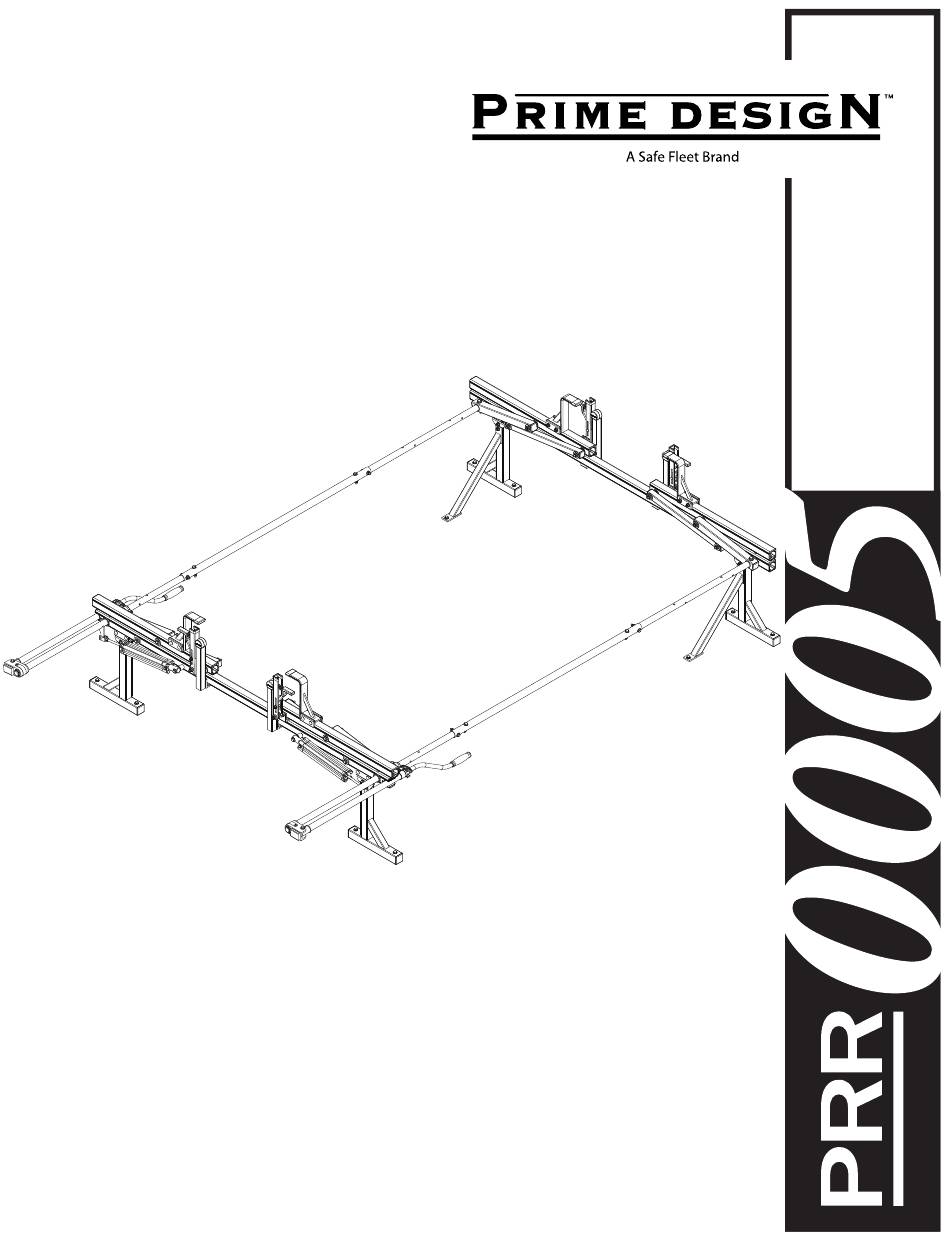

- Page 1 PRIME DESIGN, A SAFE FLEET BRAND Address: 580 Opperman Drive, Eagan, MN 55123 ▪ Toll Free: 1.8.PRIME.RACK Fax: 651-552-1799 ▪ Email: info@primedesign.net ▪ Website: www.primedesign.net...
-
Page 2: Contents Overview
CONTENTS OVERVIEW 1—FBM-0031 ............(Qty 1) Mounting Brackets with hardware Fender Washer (10X) M8 Locknut (12X) Neoprene Washer (10X) Brace (2X) Bracket (4X) M8 x 30MM (2X) M8 x 65MM (10X) " Flat Washer (14X) 2—Rear Crossbar Assembly ........(Qty 1) 3—Front Crossbar Assembly ......... - Page 3 4—Rear Drive Shaft ..........(Qty 1) Right Hand, B4 Version, 46.00” 5—Handle Latch Assembly ........(Qty 1) Right Hand 6—Connecting Bar ..........(Qty 2) 4.00’ 7—Front Drive Shaft ..........(Qty 2) B Version, 35.75” 8—Z Post ..............(Qty 4) Adjustable, 7.25” 9—L Post..............
- Page 4 7’ (84”) CONFIGURATION FBM-0031 8’ (96”) CONFIGURATION Front Front 14.25” 14.25” 61.50” 61.50” 84.00” 96.00” Rear 55.7625” Rear 10.00” 55.7625” 10.00” 6’ (72”) CONFIGURATION Front 14.25” 61.50” 72.00” Rear 55.7625” 10.00” Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 5 Assemble the Braces to the Mounting Brackets using the Verify correct positioning and location of Mounting Brackets to specified hardware as shown below. utility body prior to installing hardware. Left Front Right Front Left Rear M8 x 65mm Bolt Flat Washer Flat Washer M8 Lock Nut Right Rear...
- Page 6 RIGHT ROTATION ASSEMBLY 3/10 CROSSBARS CROSSBAR ADJUSTMENT Even Front Even F r o Even Rear Even Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
-
Page 7: Rear Drive Shaft
REAR DRIVE SHAFT CYLINDER HARDWARE Torque to 80 in-lbs Torque to 90 in-lbs CONNECTING BAR FRONT DRIVE SHAFT Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”). - Page 8 CONNECTING BAR FASTENERS DRIVE SHAFT SEALING Apply Silicone Sealant to Connecting Bar ends Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 9 L POSTS Prepare the L Post by removing the hex head bolt, lock washer, flat washer, and Bracket Clamp. Retain for SEE QUICK START GUIDE FOR ADJUSTMENTS installation Steps 8.4-8.8. NOTE: The Auto Clamps may come preset from the factory for packaging purposes only.
- Page 10 Z POSTS SEE QUICK START GUIDE FOR ADJUSTMENTS Slide the L Post until parallel Slide the Z Post into the Mounting Clamp Assembly. to the Auto Clamp and the gap between the two is even from top to bottom. Torque to 80 in-lbs Ensure both Z Post Mounting Clamps are fully seated into...
- Page 11 LEFT ROTATION ASSEMBLY 12/19 REAR DRIVE SHAFT CYLINDER HARDWARE 11.1 12.2 11.2 11.3 11.5 12.1 Torque to 11.4 80 in-lbs Torque to 90 in-lbs Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 12 CONNECTING BAR FRONT DRIVE SHAFT 14.1 14.2 13.1 14.3 13.2 14.4 Torque to 90 in-lbs CONNECTING BAR FASTENERS DRIVE SHAFT SEALING 16.1 16.2 Apply Silicone Sealant to Connecting Bar ends Prime Design Limited Warranty. Seller’s sole and exclusive warranty (and Buyer’s sole and exclusive remedy and Seller’s entire liability for any breach thereof) with respect to the Goods is set forth in the Limited Warranty document available at primedesign.net/warranty-liability (the “Prime Design Limited Warranty”).
- Page 13 L POSTS Prepare the L Post by removing the hex head bolt, lock 17.2 washer, flat washer, and Bracket Clamp. Retain for SEE QUICK START GUIDE FOR ADJUSTMENTS installation Steps 17.4-17.8. NOTE: The Auto Clamps may come preset from the factory for packaging purposes only.
- Page 14 Z POSTS 17.7 SEE QUICK START GUIDE FOR ADJUSTMENTS Slide the L Post until parallel to the Auto Clamp and the 18.1 Slide the Z Post into the Mounting Clamp Assembly. gap between the two is even from top to bottom. Torque to 17.8 80 in-lbs...
- Page 15 Page Intentionally Left Blank...
- Page 16 USAM-PRR0005-US01 Rev-C 0618...
