Mollet PF Quick Start Manual

M LLET
Füllstandtechnik
Read and follow these safety instructions first and take notice of the operating instructions.
Safety instructions
1. The installation, initial operation and maintenance may be done by a qualified expert with electrical know-how only.
2. Complay with the local and statutory rules and regulations and/or the VDE 0100.
3. Take notice of the temperature specifications at the data plate.
4. A fuse (with max. 4A) has to be connected in series to the voltage supply.
5. Protect the signal contact from voltage peaks when inductive loads are connected.
6. The device may put into operation only if it is closed.
7. Switch off the power supply, before opening the device. (touchdangerous voltage)
8. Tear-off danger! Don´t pour on the measuring cone. In case of full indication the filling process has to be stopped immediately.
Operating instructions
1. Description
1.1 Intended use
The level indicator observes the filling level as a limit switch in silos
and vessels. It can be used as full and empty indicator for dusty
and powdery, granulated and grainy bulk goods with a max. grain
size up to 100 mm and with a bulk density of 0.3 t/m³ ... 3.0 t/m³.
1.2 Function
Bulk goods, being dumped besides the pendulum, are moving the
pendulum more and more aside, as the filling level increases.
A signal switch registers this movement and evaluates it.
1.3 Technical data
Manufacturer
Address
Name
Type
Bulk good temperature
T
Ambient temperature
T
Signal contact
Capacity of the contact
C o n
Switching voltage
Response delay
Cable connection
Cable entry
Type of protection
Overpressure safety
Weight
Maintenance
Mounting position
MOLLET D-74706 Osterburken Tel. +49 6291 6440-0 Fax +49 6291 9846
MOLLET
Füllstandtechnik GmbH
Industriepark RIO 103
74706 Osterburken

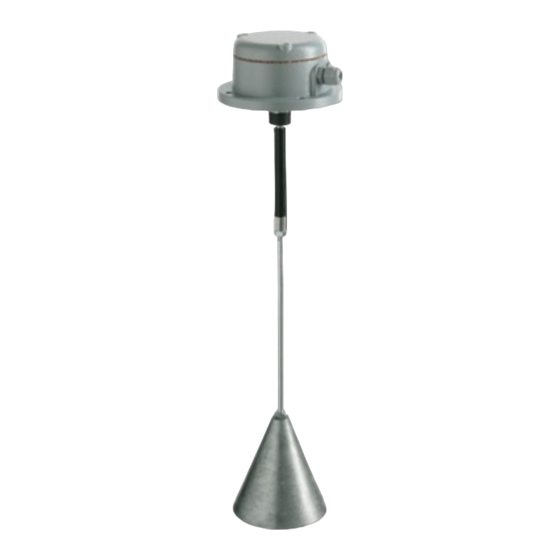

Pendulum level indicator
PF
-25 °C ... +80 °C
s
-20 °C ... +70 °C
a
change-over contact, potentialfree
4 A / 250 V AC
t a c t
24 V ... 250 V AC
or 12 V ... 125 V DC
none
Screw M4
cable gland M20x1.5
I P
IP66
acc. to DIN EN 60529
up to 0.5 bar
1.15 kg
none
vertical, ± 3° inclination
Pendulum level indicator
PF
1.4 Materials
Folding bellow NBR, black
Buckling protector Stainless steel 1.4301 / 304
Sensor (Cone) Aluminium or 1.4301 / 304

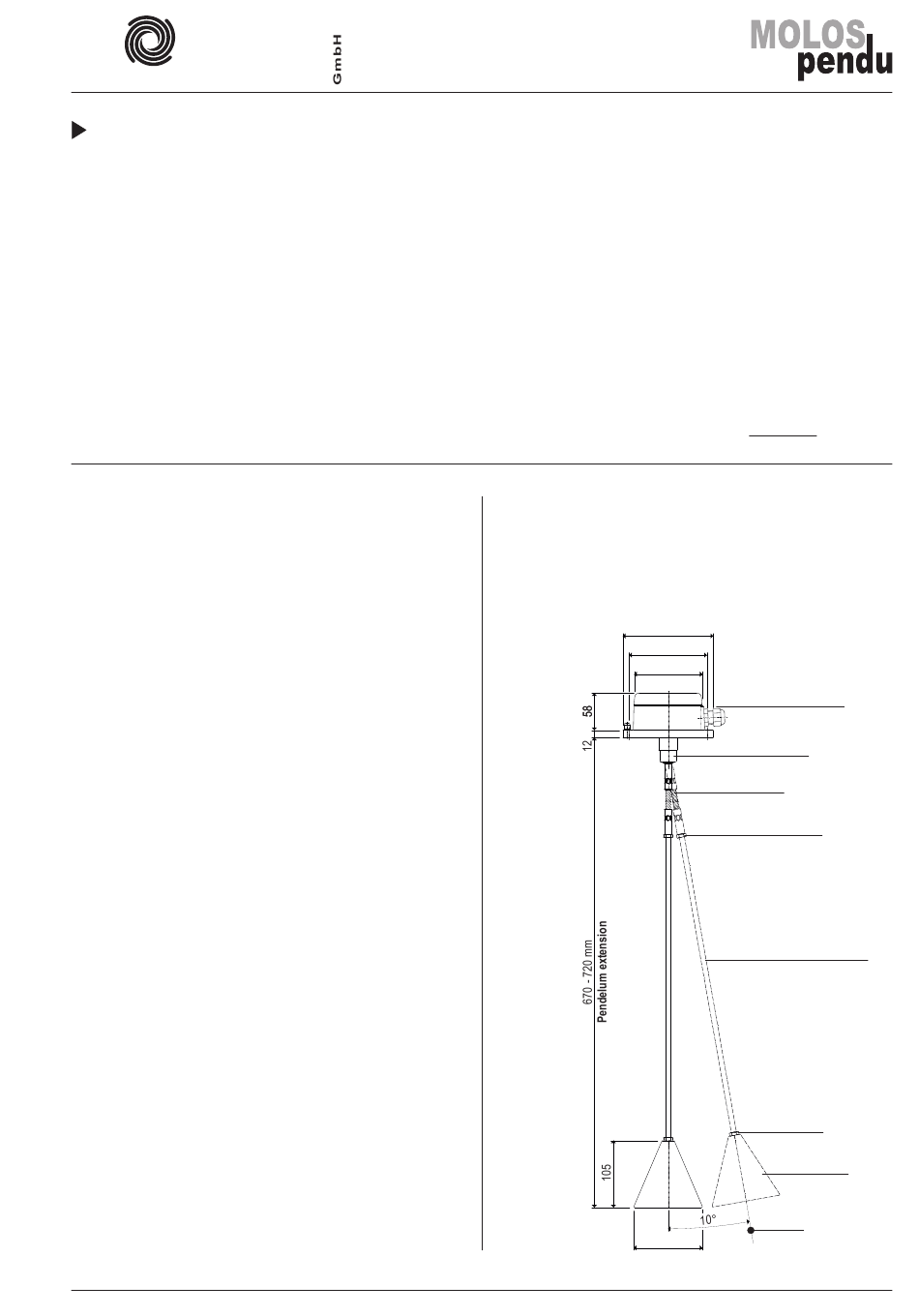

1.5 Dimensions
003-0200
Operating instructions
Housing GAL, RAL7001 coated
Rod Aluminium or 1.4301 / 304
Ø 142
LK 122, 4x Ø7
Ø 106
Buckling protector
Switching point
Ø 109
in all directions
04/13
©
by MOLLET
Housing
Folding bellow
Locking nut
Rod
Locking nut
Sensor
(Cone)
PF-BA 01
