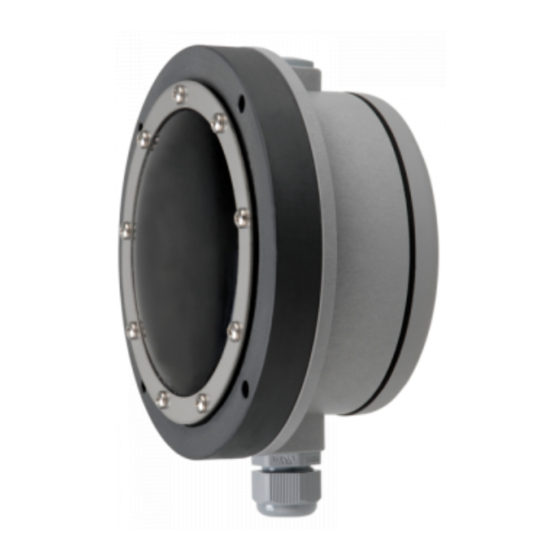

Mollet MOLOS MFD Quick Start Manual

M LLET
Füllstandtechnik
Read and follow these safety instructions first and take notice of the operating instructions.
Safety instructions
1. The installation, initial operation and maintenance may be done by a qualified expert with electrical know-how only.
2. Comply with the local and statutory rules and regulations and/or the VDE 0100.
3. Take notice of the temperature specifications at the data plate.
4. A fuse (with max. 4A) has to be connected in series to the voltage supply.
5. Protect the signal contact from voltage peaks when inductive loads are connected.
6. The device may put into operation if it is closed, only.
7. Switch off the power supply, before opening the device. (touchdangerous voltage)
Operating instructions
1. Description
1.1 Intended use
The level indicator observes the filling level as a limit switch in silos
and vessels. It can be used as full, demand and empty indicator for
dusty and powdery, granulated and grainy bulk goods with a max.
grain size up to 30 mm and with a bulk density of 0.3 t/m³ ... 2.5 t/m³.
1.2 Function
The bulk goods presses with its weight against the double
membrane. A tappet directly transfers the pressure from the
membranes to the switch. When the bulk goods are decreasing,
pressure is taken off the membranes and the switch will be
interconnected.
1.3 Technical data
Manufacturer
Address
Name
Type
Temperature range
T
Signal contact
Capacity of the contact
Switching voltage
Sensitivity
Response delay
Cable entry
Cable connection
Type of protection
Overpressure safety
Weight
Maintenance
Mounting position
MOLLET D-74706 Osterburken Tel. +49 6291 6440-0 Fax +49 6291 9846
MOLLET
Füllstandtechnik GmbH
Industriepark RIO 103
74706 Osterburken
Membrane level indicator
MFD
-20 °C ... +70 °C
a
change-over contact, potentialfree
4 A / 250 V AC
t a c t
C o n
24 V ... 250 V AC
or 12 V ... 125 V DC
60 g ... 200 g adjustable
none
Cable gland M20x1.5
Scrwe M4
I P
IP65
acc. to DIN EN 60529
up to 5 bar
0.73 kg
none
any position
Membrane level indicator
MFD

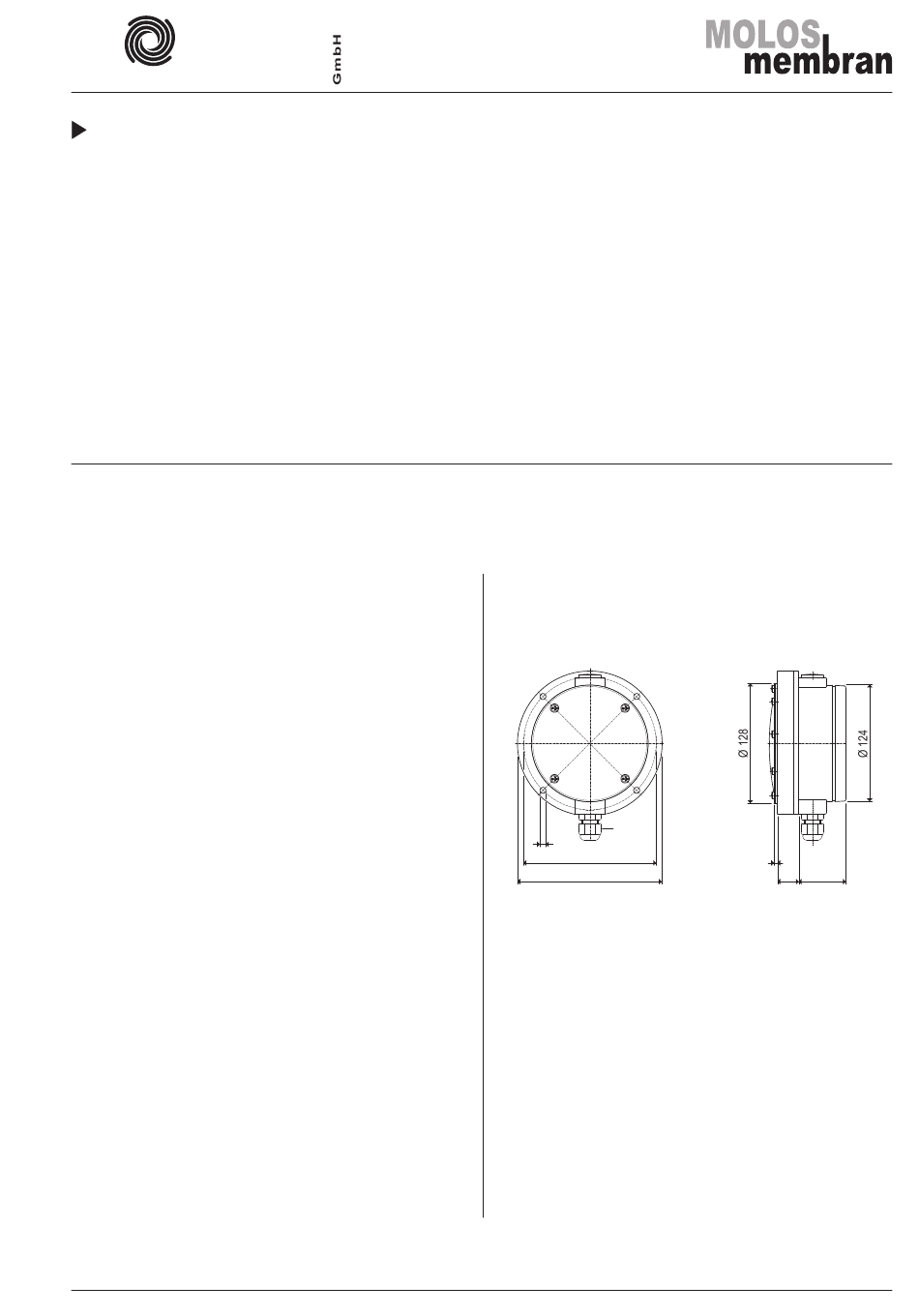

1.4 Dimensions
top
7
142
154
1.5 Materials
Housing
Type
MFD-NN = NBR
MFD-VN = VITON
MFD-NE = NBR
MFD-VE = VITON
Operating instructions
M20x1.5
3.5
002-0202
GFK (glass-fibre reinforced plastics)
Membrane Mounting ring
Steel, galvanized
Steel, galvanized
Stainless steel 1.4301 / 304
Stainless steel 1.4301 / 304
04/13
©
by MOLLET
25 49
MFD-BA 01
