Lanner ISD-V330 User Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Vehicle Computing
ISD-V330 User Manual
Preliminary Draft Release
Version: 1.0
Date of Release: 2022-10-04

Advertisement

loading
Need help?

Need help?

Do you have a question about the ISD-V330 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Lanner ISD-V330

Summary of Contents for Lanner ISD-V330

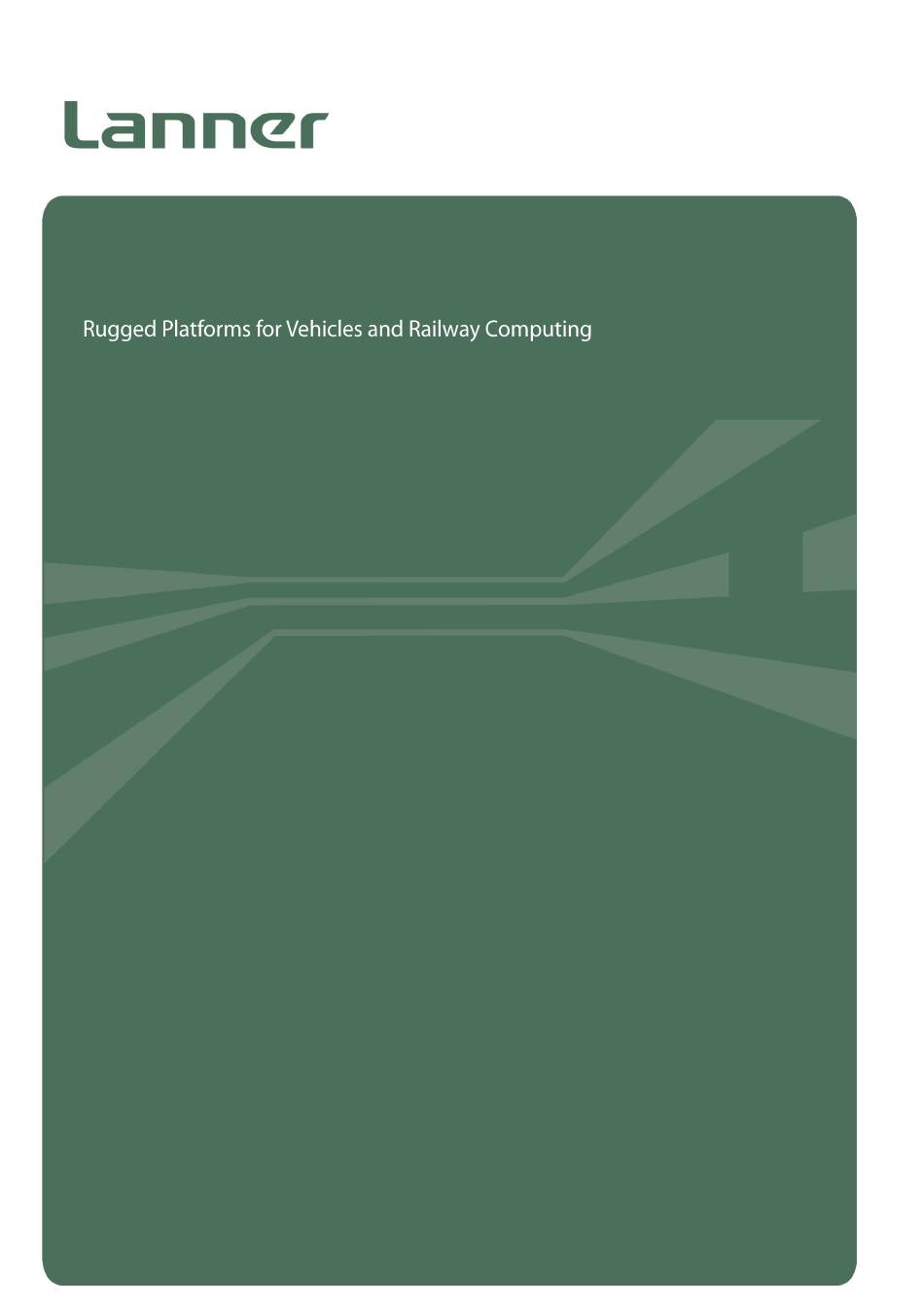

  • Page 1 Vehicle Computing ISD-V330 User Manual Preliminary Draft Release Version: 1.0 Date of Release: 2022-10-04...
  • Page 2 - assumed to be qualified in the servicing of computer equipment, such as professional system integrators, or service personnel and technicians. The latest version of this document can be found on Lanner’s official website, available either through the product page or through the Lanner Download Center page with a login account and password.
  • Page 3 ISD-V330 User Manual Taiwan Corporate Headquarters China Lanner Electronics Inc. Beijing L&S Lancom Platform Tech. Co., Ltd. 7F, No.173, Sec.2, Datong Rd. Guodong LOFT 9 Layer No. 9 Huinan Road, Xizhi District, New Taipei City 22184, Huilongguan Town, Changping District, Beijing...
  • Page 4 ISD-V330 User Manual Intel® and Intel® Celeron® are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Microsoft Windows and MS-DOS are registered trademarks of Microsoft Corp. All other product names or trademarks are properties of their respective owners.
  • Page 5 ISD-V330 User Manual Ne portez pas de vêtements amples ou de bijoux qui pourraient être pris dans le châssis. Attachez votre cravate ou écharpe et remontez vos manches. Portez des lunettes de sécurité pour protéger vos yeux. N’effectuez aucune action qui pourrait créer un danger pour d’autres ou rendre l’équipement dangereux.
  • Page 6 The installation of this product must be performed by trained specialists; otherwise, a non-specialist might create the risk of the system’s falling to the ground or other damages. Lanner Electronics Inc. shall not be held liable for any losses resulting from insufficient strength for supporting the system or use of inappropriate installation components.
  • Page 7 ISD-V330 User Manual Before turning on the device, ground the grounding cable of the equipment. Proper grounding (grounding) is very important to protect the equipment against the harmful effects of external noise and to reduce the risk of electrocution in the event of a lightning strike.
  • Page 8 ISD-V330 User Manual Package Content..........................10 Ordering Information ........................10 Optional Accessories ........................10 System Specifications ........................11 Front Panel ............................12 Rear Panel ............................13 Block Diagram........................... 14 Internal Jumpers & Connectors ....................... 15 Opening the Chassis ......................... 20 Installing the LTE Module (Optional) ....................
  • Page 9 ISD-V330 User Manual Boot Menu ............................66 Save and Exit Menu .......................... 67 Warranty Policy ..........................71...
  • Page 10 10 nm process SoC (System-on-Chip) Intel Atom x6000E processor (codenamed Elkhart Lake). ISD-V330 boasts an abundance of I/O peripheral connectivity including 1x CAN bus and 2x serial COM ports, 2x video output by HDMI, USB and MIO ports, 2x RJ-45 GbE LAN ports and SATA/mSATA storage options. To achieve multi-WAN aggregate wireless network connectivity, ISD-V330 offers 3x PGN removable caddy with dual SIM slot supporting 4G-LTE/5G cellular communications.
  • Page 11 ISD-V330 User Manual Intel® Elkhart Lake Atom® x6425RE Processor Frequency 1.9 GHz Processor System Core Number Quad-core Chipset Fanless Technology 1x DDR4 3200MT/s with SODIMM Memory Max. Capacity Up to 32GB Socket 1x 260-pin SODIMM Graphic Graphic Processor Intel® UHD Graphics...
  • Page 12 ISD-V330 User Manual Description GbE Ports 2x RJ45 LAN Ports 2x Removable PGN Module Slot supporting Dual SIM and 2x Antenna Module Slot ports with dust cover 2x Nano-SIM cards with cover SIM Slot 2x SMA-type Antenna Holes for LTE Module (Optional) Antenna Holes 1x USB 3.0 Type A, 3x USB 2.0 Type A Ports...
  • Page 13 ISD-V330 User Manual Description Multi-IO Port 4x DI @5-30V/100mA, 4x DO @30V/2A dry relay N.C./N.O., 1x IGN DI to MCU 1x Removable PGN Module Slot supporting Dual SIM and 2x Antenna ports Module Slot with dust cover HDMI Port 2x HDMI ports with cable lock...
  • Page 14 ISD-V330 User Manual The block diagram indicates how data flows among components on the motherboard. Please refer to the following figure for the motherboard’s layout design.
  • Page 15 ISD-V330 User Manual Refer to the following as reference for the pin assignments and internal connectors. The pin headers on the motherboard are often associated with important functions. With the shunt (Jumper) pushed down on the designated pins (the pin numbers are printed on the circuit board, surrounding the pin header), certain feature can be enabled or disabled.
  • Page 16 ISD-V330 User Manual JCOMS1 Pin No. Description RTC_RST# SRTC_RST# J1 (Debug Port for ARM) Pin No. Description Pin No. Description V_ARM_JTAG PSE_SWDIO PSE_SWCLK PSE_TRACESWO TP_TDI_PIN8 PSE_JTAG_NRESET PSE_TRACECLK PSE_TRACEDATA0 PSE_TRACEDATA1 PSE_TRACEDATA2 PSE_TRACEDATA3 JCOM1 Pin No. Description V3P3_A PSE_I2C5_SDA PSE_I2C5_SCL Pin No.
  • Page 17 ISD-V330 User Manual V3P3A_1P8A_SPI SPI0_IO1_MISO_R SPI0_CLK_R SPI0_IO0_MOSI_R COM1 Pin No. Description COM_DCD1_#_L COM_RXD1_L COM_TXD1_L COM_DTR1_#_L COM_DSR1_#_L COM_RTS1_#_L COM_CTS1_#_L COM_RI1# COM2 Pin No. Description COM_DCD2_#_L COM_RXD2_L COM_TXD2_L COM_DTR2_#_L COM_DSR2_#_L COM_RTS2_#_L COM_CTS2_#_L COM_RI2# CON2 Pin No. Description V3P3S_PGN1 V3P3S_PGN1 V5_S...
  • Page 18 ISD-V330 User Manual PGN1_SIM_SW PGN1_RST# USB2_N4 USB2_P4 CON3 Pin No. Description V3P3S_PGN1 V3P3S_PGN1 V5_S PGN1_SIM_SW PGN1_RST# USB2_N4 USB2_P4 CON4 Pin No. Description V3P3S_PGN3 V3P3S_PGN3 V5_S PGN3_SIM_SW PGN3_RST# USB2_N6 USB2_P6 Pin No. Description Pin No. Description IGN_DI_ISO IGN_ISOGND DO4_N DO4_P DO3_N...
  • Page 19 ISD-V330 User Manual EXT_DI3 GND_DI3 EXT_DI2 GND_DI2 EXT_DI1 GND_DI1 SATA_PWR1 Pin No. Description V12_S V5_S Pin No. Description Pin No. Description BAT_12V_24V K_LINE J1850+/J1708+ CAN_M_TX J1850-/J1708- CAN_M_RX CAN_H/J1939+ V5_S CAN_L/J1939- COM2 Pin No. Description J1850-/J1708-_C COM3_RXD DSUB3_C DSUB5_C J1850-/J1708- J1850+/J1708+...
  • Page 20 ISD-V330 User Manual To reduce the risk of personal injury, electric shock, or damage to the unit, please remove all power connections to completely shut down the device and wear ESD protection gloves when conducting the steps in this chapter.
  • Page 21 ISD-V330 User Manual To access the motherboard and install LTE or Wi-Fi module, we must first detach the metal partitions. 1. Unscrew the four (4) screws on two sides of the metal partition. Remove the signals cables and power cables. Lift the partition and place it aside.
  • Page 22 ISD-V330 User Manual The motherboard provides one M.2 3042 B-Key socket for LTE Module, with dual Nano-SIM slots. LTE module card will require two (2) antennas. Follow the steps for installations. 1. Power off the system, and open the bottom chassis cover, then remove the partitions.
  • Page 23 ISD-V330 User Manual Installing LTE Antennas LTE Main LTE Aux Main 1. Locate the IPEX connectors (Aux, Main) on the LTE module card. 2. Connect the cables to the LTE module card IPEX connectors. Main 3. Screw on the two (2) antennas on the outside of the system Installing Nano SIM Card The dual nano SIM card slot on the front panel supports the LTE module card (optional).
  • Page 24 ISD-V330 User Manual 3. There are two (2) nano SIM slots. 4. Insert and push the nano SIM card all the way in until its clicks in place. 5. To remove the nano SIM card, use your fingertips to push it once, to have the card automatically eject.
  • Page 25 ISD-V330 User Manual The system provides one M.2 2230 E-Key slot for a Wi-Fi module card. Wi-Fi module card requires two (2) or three (3) antennas. Follow the steps for installation. 1. Power off the system, and open the bottom chassis cover, then remove the partition boards.
  • Page 26 ISD-V330 User Manual 1. Locate the IPEX connectors (A1, A2) on the Wi- Fi module card. 2. Connect the cables to the Wi-Fi module card IPEX connectors. Note: The system supports Wi-Fi Module cards with up to three antenna connectors. The images above are for illustration purposes only.
  • Page 27 ISD-V330 User Manual ISD-V330 comes with three PGN module slot for 4G/LTE add-on. Follow the steps for installation. Setting up the PGN Module 1. Loosen the two (2) screws on each side of the PGN module and lift the cover.
  • Page 28 ISD-V330 User Manual Installing LTE Antennas 1. Locate the IPEX connectors (A1, A2) on the LTE module card. 2. Connect the cables to the LTE module card IPEX connectors. 3. Place the top cover back on and secure with two (2) screws on each side.
  • Page 29 ISD-V330 User Manual 3. Insert the SIM card into the slot, fold down the SIM card holder and slide the socket cover to the Lock position. OPEN LOCK Installing PGN Module 1. Locate the two PGN module slot on the front panel of the system, and/or one PGN module slot on the rear panel.
  • Page 30 ISD-V330 User Manual The system can be mounted on a flat surfaced wall. Please take the following into considerations when mounting the system onto the wall. Note: All pictures shown are for illustration purposes only, actual product may vary due to specific model or enhancement.
  • Page 31 ISD-V330 User Manual 2. On the wall, measure the exact place where you want to hang the system, and drill four holes that match the four mounting holes on both brackets. NOTE: the demonstrated screw type can fit in general drywall or shelves.
  • Page 32 ISD-V330 User Manual The system has AMI BIOS built-in, with a SETUP utility that allows users to configure required settings or to activate certain system features. Pressing the <Tab> or <DEL> key immediately allows you to enter the Setup Utility.
  • Page 33 ISD-V330 User Manual Setup main page contains BIOS information and project version information. Feature Description BIOS Vendor: American Megatrends Core Version: AMI Kernel version, CRB code base, X64 Compliancy: UEFI version, PI version BIOS Information Project Version: BIOS release version...
  • Page 34 ISD-V330 User Manual Select the Advanced menu item from the BIOS setup screen to enter the “Advanced” setup screen. Users can select any of the items in the left frame of the screen.
  • Page 35 ISD-V330 User Manual Feature Options Description Intel (VMX) Enabled When enabled, a VMM can utilize the additional hardware Virtualization Disabled capabilities provided by Vanderpool Technology. Technology Active Processor Number of cores to enable in each processor package. Cores Enabled BIST...
  • Page 36 ISD-V330 User Manual...
  • Page 37 ISD-V330 User Manual Feature Options Description Me FW Image Re- Enabled Enable/Disable Me FW Image Re-Flash function. Flash Disabled...
  • Page 38 ISD-V330 User Manual Feature Options Description Enables or Disables BIOS support for security device. O.S. will not Security Device Enabled show Security Device. TCG EFI protocol and INT1A interface will not Support Disabled be available. Enabled SHA-1 PCR Bank Enables or Disables SHA-1 PCR Bank.
  • Page 39 ISD-V330 User Manual Disabled Enabled SHA384 PCR Bank Enables or Disables SHA384 PCR Bank. Disabled Enabled SM3_256 PCR Bank Enables or Disables SM3_256 PCR Bank. Disabled Schedules an Operation for the Security Device. NOTE: Your None Pending operation computer will reboot during restart in order to change State of TPM Clear Security Device.
  • Page 40 ISD-V330 User Manual Feature Options Description Enabled CAN enable or disable Disabled...
  • Page 41 ISD-V330 User Manual Feature Options Description Enabled Serial Port Enables or Disables Serial Port (COM) Disabled Loopback RS232 COM1 MODE Select Com Mode as RS232/RS485 RS485 Half Duplex RS485/422 Full Duplex Enabled COM1 Termination COM RS-422/485 Receiver Termination Disabled...
  • Page 42 ISD-V330 User Manual Feature Options Description Enabled Serial Port Enables or Disables Serial Port (COM) Disabled Loopback RS232 COM2 MODE Select Com Mode as RS232/RS485 RS485 Half Duplex RS485/422 Full Duplex COM2 Enabled COM RS-422/485 Receiver Termination Termination Disabled...
  • Page 43 ISD-V330 User Manual Feature Options Description Enabled Serial Port Enables or Disables Serial Port (COM) Disabled...
  • Page 44 ISD-V330 User Manual Feature Options Description Enabled Serial Port Enables or Disables Serial Port (COM) Disabled...
  • Page 45 ISD-V330 User Manual Feature Options Description Enabled Serial Port Enables or Disables Serial Port (COM) Disabled...
  • Page 46 ISD-V330 User Manual Feature Options Description Enabled Serial Port Enables or Disables Serial Port (COM) Disabled...
  • Page 47 ISD-V330 User Manual Feature Description CPU temperature This value reports the CPU temperature. SYS temperature This value reports the System temperature. VCCIO This value reports the CPU VCORE. VDDQ This value reports the VDDQ. VBAT This value reports the VBAT Input voltage.
  • Page 48 ISD-V330 User Manual Feature Options Description Enabled Watch Dog Timer Enable or Disable Watch Dog function Disabled...
  • Page 49 ISD-V330 User Manual Feature Options Description COM0 Enabled Enables or disables Console Redirection Console Redirection Disabled COM1 Enabled Enables or disables Console Redirection Console Redirection Disabled COM2 Enabled Enables or disables Console Redirection Console Redirection Disabled...
  • Page 50 ISD-V330 User Manual Feature Options Description ANSI: Extended ASCII char set. VT100 VT100: ASCII char set. VT100+ Terminal Type VT100+: Extends VT100 to support color, function keys, etc. VT-UTF8 VT-UTF8: Uses UTF8 encoding to map Unicode chars onto 1 or ANSI more bytes.
  • Page 51 ISD-V330 User Manual RTS/CTS VT-UTF8 Combo Key Disabled Enable VT-UTF8 Combination Key Support for ANSI/VT100 Support Enabled terminals Disabled With this mode enabled only text will be sent. This is to capture Recorder Mode Enabled Terminal data. Disabled Resolution 100x31 Enables or disables extended terminal resolution.
  • Page 52 ISD-V330 User Manual Feature Options Description Enables Legacy USB support. Enabled Auto option disables legacy support if no USB devices are connected; Legacy USB Support Disabled Disabled option will keep USB devices available only for EFI Auto applications. Enabled This is a workaround for OSes without XHCI hand-off support. The...
  • Page 53 ISD-V330 User Manual Feature Options Description Disabled Network Stack select LAN1 Select UEFI Network Stack LAN2 Disabled Enable/Disable IPv4 PXE boot support. If disabled, IPv4 PXE boot IPv4 PXE Support Enable support will not be available. Disabled Enable/Disable IPv4 HTTP boot support. If disabled, IPv4 HTTP boot...
  • Page 54 ISD-V330 User Manual Feature Options Description Auto Auto Option: Access SD device in DMA mode if controller supports ADMA it, otherwise in PIO mode. SDIO Access Mode SDMA DMA Option: Access SD device in DMA mode. PIO Option: Access SD device in PIO mode.
  • Page 55 ISD-V330 User Manual Select the Chipset menu item from the BIOS setup screen to enter the “Chipset” setup screen. Users can select any of the items in the left frame of the screen.
  • Page 56 ISD-V330 User Manual Feature Options Description Enabled VT-d VT-d capability Disabled Enabled X2APIC Opt Out Enable/Disable X2APIC_OPT_OUT bit Disabled Above 4GB MMIO Enabled Enable/Disable above 4GB MemoryMappedIO BIOS assignment This BIOS assignment Disabled is disabled automatically when Aperture Size is set to 2048MB...
  • Page 57 ISD-V330 User Manual Feature Options Description Maximum Memory Frequency in Mhz. Must divide by 133 or 100 Maximum Memory Auto according to the refclk. In Gear2 must divide by 266 or 200. Lowest Frequency 1067-4200 Gear2 speed is 2133 Maximum Value of TOLUD. Dynamic assignment would adjust...
  • Page 58 ISD-V330 User Manual...
  • Page 59 ISD-V330 User Manual Feature Options Description Enabled SATA Controller(s) Enable/Disable SATA Device. Disabled SATA Mode Selection AHCI Determines how SATA controller(s) operate. Enabled Port 0 Enable or Disable SATA Port Disabled Enabled Hot Plug Designates this port as Hot Pluggable.
  • Page 60 ISD-V330 User Manual Feature Options Description Enable xDCI Support Enable/Disable xDCI (USB OTG Device). Disable USB3 Link Speed GEN1 This option is to select USB3 Link Speed GEN1 or GEN2 Selection GEN2...
  • Page 61 ISD-V330 User Manual Feature Options Description Enabled Enable will lock bytes 38h-3Fh in the lower/upper 128-byte bank RTC Memory Lock Disabled of RTC RAM Enabled Enable/Disable the PCH BIOS Lock Enable feature. Required to BIOS Lock Disabled be enabled to ensure SMM protection of flash.
  • Page 62 ISD-V330 User Manual Feature Options Description Enabled eMMC 5.1 Controller Enable or Disable SCS eMMC 5.1 Controller Disabled eMMC 5.1 HS400 Enabled Enable or Disable SCS eMMC 5.1 HS400 Mode Mode Disabled Enable HS400 Enabled Software tuning should improve eMMC HS400 stability at the...
  • Page 63 ISD-V330 User Manual Select the Security menu item from the BIOS setup screen to enter the Security Setup screen. Users can select any of the items in the left frame of the screen. Feature Description Setup Administrator If ONLY the Administrator's password is set, it only limits access to Setup and Password is only asked for when entering Setup.
  • Page 64 ISD-V330 User Manual Feature Options Description Secure Boot feature is Active if Secure Boot is Enabled,Platform Disabled Secure Boot Key(PK) is enrolled and the System is in User mode. The mode Enabled change requires platform reset Secure Boot mode options: Standard or Custom. In Custom...
  • Page 65 ISD-V330 User Manual Feature Options Description Disabled Install factory default Secure Boot keys after the platform reset Factory Key Provision Enabled and while the System is in Setup mode Force System to User Mode.Install factory default Secure Boot Restore Factory Keys...
  • Page 66 ISD-V330 User Manual Select the Boot menu item from the BIOS setup screen to enter the Boot Setup screen. Users can select any of the items in the lift frame of the screen. Feature Options Description Setup Prompt The number of seconds to wait for setup activation key.
  • Page 67 ISD-V330 User Manual Select the Save and Exit menu item from the BIOS setup screen to enter the Save and Exit Setup screen. Users can select any of the items in the left frame of the screen. ■ Discard Changes and Exit Select this option to quit Setup without saving any modifications to the system configuration.
  • Page 68 ISD-V330 User Manual ■ Restore Defaults Restore default values for all setup options. Select “Yes” to load Optimized defaults. PS: The items under Boot Override were not same with image. It should depend on devices connect on system.
  • Page 69 ISD-V330 User Manual The status explanations of LED indicators are as follows: COLOR LED ACTION DESCRIPTION Green Steady System is powered ON Power System is powered OFF Amber Blinking Storage (HDD/SATA/NVME) Active Storage No Data Access Programmable LED WWAN Programmable LED...
  • Page 70 ISD-V330 User Manual...
  • Page 71 ISD-V330 User Manual 1. All products are under warranty against defects in materials and workmanship for a period of one year from the date of purchase. 2. The buyer will bear the return freight charges for goods returned for repair within the warranty period;...
  • Page 72 ISD-V330 User Manual When requesting RMA service, please fill out the following form. Without this form enclosed, your RMA cannot be processed.
