Portway LUXIMA PLXMF Installation And Operating Instructions

Portway LUXIMA PLXMF Installation And Operating Instructions

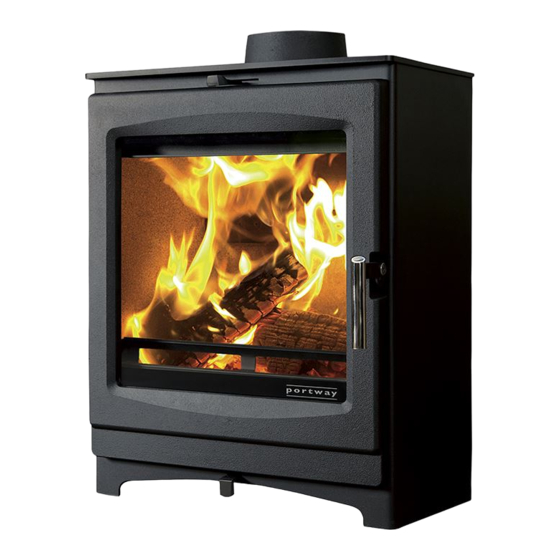

Solid fuel heating stove

Advertisement

LEAVE THIS DOCUMENT WITH THE HOUSEHOLDER !
This stove exceeds the safety and performance requirements of Harmonised Standards for Intermittent burning solid fuel
roomheaters for installation with a single dedicated chimney.
Independent thermal and emissions testing by SGS Environmental Laboratory in 2019, CEN Notified Body EU0608 UK0120
Room 76255, PO Box 1213, Belfast BT1 9JY and in the UK at Denver House, Winster DE42DH 22. Jun. 2021
Read these instructions ! Use only recommended fuel !
This document, when completed by the installer, constitutes part of a 'Hearth Notice' for purposes of Building Law. It must be left with
the householder where it can easily be found.
INSTALLED AT LOCATION:
BY:
EMERGENCY CONTACT:
These stoves may be used in smoke control areas when operated strictly in accordance with these instructions and with
Soliftec Smoke Advice Sheet No1 (www.soliftec.com/smokeadvice.htm), when burning:
UK: Untreated wood logs or authorised smokeless fuels (Exempted from s20 of the Clean Air Act 1993)
RoI: Wood logs, smokeless fuels or peat briquettes, but not petroleum coke (Control of Atmospheric Pollution Regulations, 1970)
Installation AND OPERATING INSTRUCTIONS
Conforms to BS EN13240:2001+A2 2004,
Emissions tested and certified to BS EN16510-1, 2019
Fuel
Test Cycle
Settings
Flue Draught Pa (ins WG)
Efficiency %
Recommended Rating kW
Mean Flue Gas Temp Rise ºC
Minimum air entry requirement
Minimum Clearance to combustibles (allow
min 150mm to non-combustibles)
NOx mg/m³
CO %
Emissions
CxHy mg/m³
as if O
=13%
2
Gas flow g/sec
Smoke Emission mg/m³
Other fuels
I declare that this information is true, these products meet the requirements of Harmonised Standards and are fit for sale.
Signed on behalf of the manufacturer by Glyn Hughes, Design Engineer, in the European Union and in Northern Ireland at
Solid Fuel Stoves Manual. Issued - 18/07/22
LX LUXIMA
SOLID FUEL HEATING STOVE
Multi-fuel version, and Wood-only version
PLXMF Multi Fuel Stove
PLXWB Wood Stove.
PLXMFT Multi-Fuel Deluxe Stove PLXWBT
Wood Stove
Wood (Beech)
Multi-fuel configuration with grate
and ashpan
1.15kg over 0.75hrs
Primary 0, 2nd 1/3 open
12 (0.05wg)
75.4
4.9
292
120
0.07
52
4.6
37
Anthracite, manufactured smokeless fuels, peat, lignite
British Fire Manufacturers
Trentham Lakes, Stoke on Trent, Staffordshire, England ST4 4TJ
www.bfm-europe.com
01782 339000
1
Wood (Beech)
Wood-only configuration with
flat fuel bed
1.15kg over 0.75hrs
Primary 0, 2nd 1/3 open
12 (0.05wg)
74.3
4.9
261
2700 mm²
500 mm
149
0.12
95
4.6
34

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUXIMA PLXMF and is the answer not in the manual?

Questions and answers

Summary of Contents for Portway LUXIMA PLXMF

  • Page 1 Solid Fuel Stoves Manual. Issued - 18/07/22 LX LUXIMA SOLID FUEL HEATING STOVE Multi-fuel version, and Wood-only version PLXMF Multi Fuel Stove PLXWB Wood Stove. PLXMFT Multi-Fuel Deluxe Stove PLXWBT Wood Stove INSTALLATION AND OPERATING INSTRUCTIONS LEAVE THIS DOCUMENT WITH THE HOUSEHOLDER ! This stove exceeds the safety and performance requirements of Harmonised Standards for Intermittent burning solid fuel roomheaters for installation with a single dedicated chimney.
  • Page 2 THIS APPLIANCE BECOMES EXTREMELY HOT AND CAN PRODUCE POISONOUS GASES. A fire-guard should be used if children or the infirm are present. The installer is required to EXACTLY follow these instructions and to completely comply with all local, national and international standards. INSTALLING a stove is a 'controlled service', the law expects that it is either supervised by a qualified installer or that the building inspector is informed.
  • Page 3 LIVING WITH YOUR STOVE Every fuel, chimney and condition of use is different. Only experience will show which are the best settings for you. LIGHTING If lighting after a period of non-use, do check that the flueways and chimney are completely clear.
  • Page 4 Cleaning the baffle plate regularly.  Avoiding 'over-firing' PARTS AND ACCESSORIES When ordering parts, specify the version of the Portway Luxima stove you have, wood-only or multifuel Portway spares Tel. 01782 339034 Standard Spare Parts British Fire Manufacturers Trentham Lakes, Stoke on Trent, Staffordshire, England ST4 4TJ www.bfm-europe.com...

This manual is also suitable for:

Luxima plxwbLuxima plxmftLuxima plxwbt
