Solid fuel heating stove, multi-fuel version, and wood-only version

Advertisement

Quick Links

INSTALLATION AND OPERATING INSTRUCTIONS
LEAVE THIS DOCUMENT WITH THE HOUSEHOLDER!
All Portway Stoves exceed the safety and performance requirements of European Standards
Intermittent burning solid fuel roomheaters for installation with a single dedicated chimney.
Fuel
Test Standard
Test Cycle
Settings
Flue Draught Pa (ins WG)
Efficiency %
Recommended Rating kW
Mean Flue Gas Temp Rise ºC
Minimum air entry requirement
Minimum Clearance to combustibles (allow
min 50mm clearance to non-combustibles)
NOx mg/m³
CO %
CxHy mg/m³
Gas flow g/sec
Smoke Emission mg/m³
I declare that this information is true, these products meet the requirements of Harmonised Standards and are fit for sale.
Signed on behalf of the manufacturer by Glyn Hughes, Design Engineer, at Winster, Derbyshire, England 5. Sep. 2018
Read these instructions! Use only recommended fuel!
This document, when completed by the installer, constitutes part of a 'Hearth Notice' for purposes of
Building Law. It must be left with the householder and placed where it can easily be found.
INSTALLED AT LOCATION:
BY:
EMERGENCY CONTACT:
I definitively assert that this installation is safe, has been lit and demonstrated to the
householder, conforms with current building regulations and with these instructions
SIGNED:
These Portway stoves may be used in smoke control areas when operated strictly in accordance with these instructions and
with Soliftec Smoke Advice Sheet No1 (www.soliftec.com/smokeadvice.htm), when burning:
UK: Untreated wood logs or authorised smokeless fuels (Exempted from s20 of the Clean Air Act 1993)
RoI: Wood logs, smokeless fuels or peat briquettes, but not petroleum coke (Control of Atmospheric Pollution Regulations, 1970)
Independently tested by SGS Nederland BV, authorised laboratory No0608, July 2018
Wood (Beech)
Multi-fuel configuration with grate and ashpan
EN 13240:2001+A2 2004
1.15kg over 0.75hrs
Primary 0, 2nd 1/3 open
12 (0.05)
Solid Fuel Stoves Manual v4. Issued - 05/09/2018 (377)
SOLID FUEL HEATING STOVE
75.4
4.9kW
292
2700 mm ²
800mm
120
0.07
52
4.6
37
DATE:
TO FIND A QUALIFIED INSTALLER, FUEL SUPPLIER or CHIMNEY SWEEP,
UK: The Solid Fuel Association, 7 Swanwick Court, Alfreton, Derbyshire DE55 7AS
Tel:0845-601-4406 www.solidfuel.co.uk
RoI: Irish Nationwide Fireplace Organisation, 162 Capel Street, Dublin 1 Tel:01-801-
Trentham Lakes, Stoke on Trent, Staffordshire, England ST4 4TJ
www.bfm-europe.com Tel 01782 339000 Fax 01782 339009
1

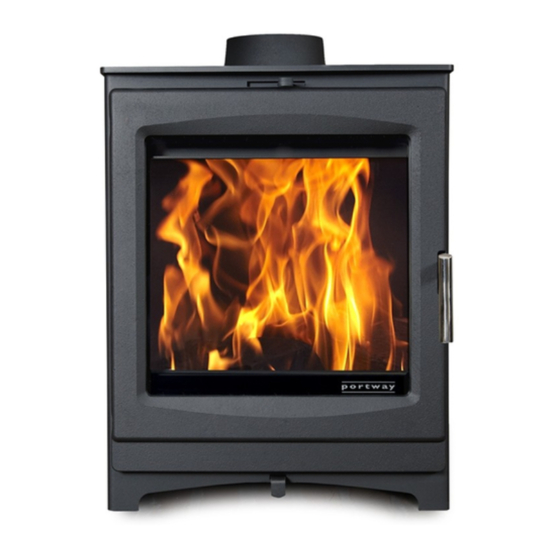

LX LUXIMA
Multi-fuel version, and
Wood-only version
Wood (Beech)
Wood-only configuration with flat fuel bed
EN 13240:2001+A2 2004
1.15kg over 0.75hrs
12 (0.05)
74.3
4.9kW
261
149
0.12
95
4.6
34
Flue Draught
measured on
commissioning:
Fuel used on
commissioning
CONTACT:
5959 www.fireplace.ie
Pa
WG
