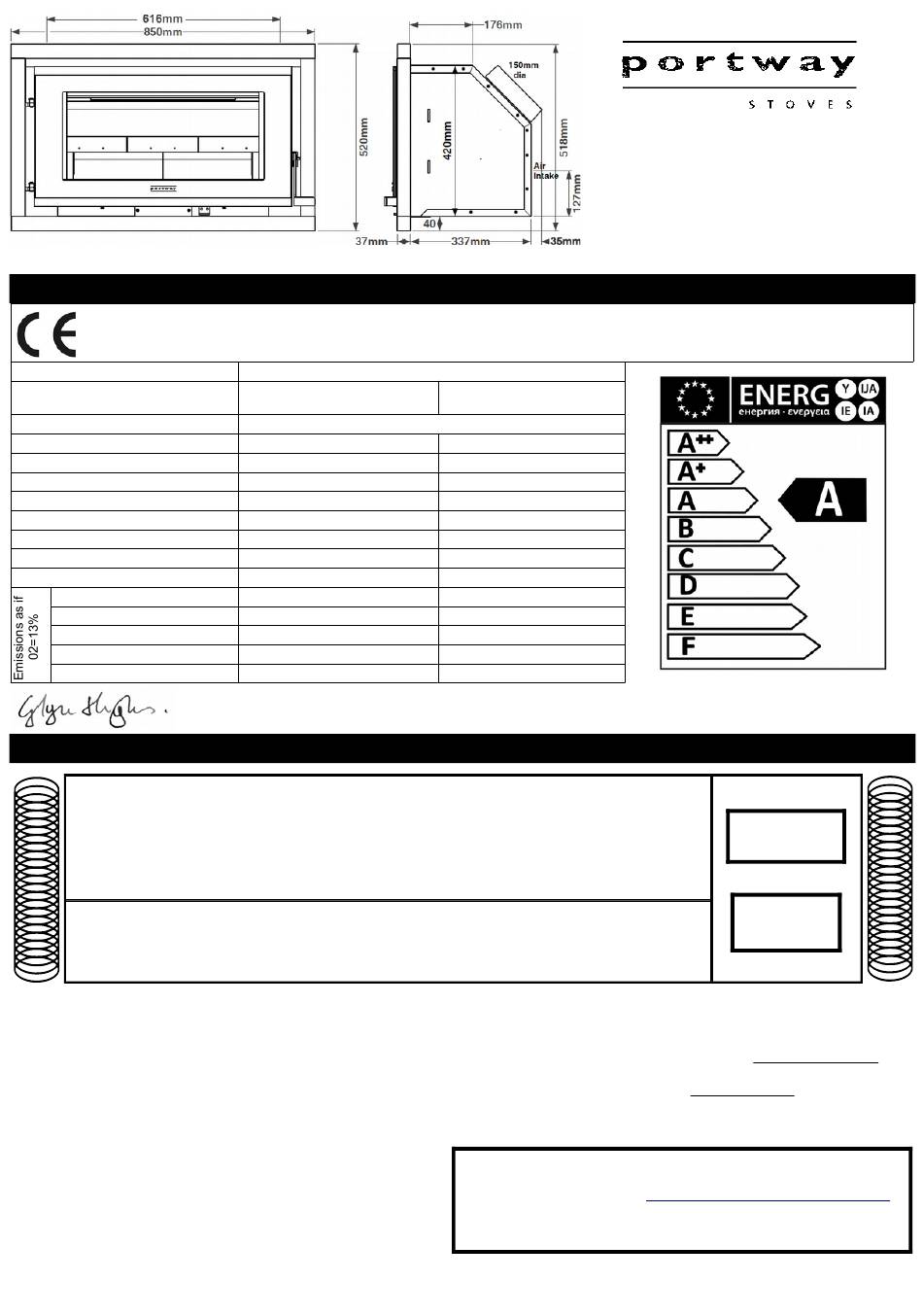

Portway Panoramic Installation And Operating Instructions

LEAVE THIS DOCUMENT WITH THE HOUSEHOLDER!
All Portway Stoves exceed the safety and performance requirements of European Standards
Intermittent burning solid fuel roomheaters for installation with a single dedicated chimney.
Fuel
Test Standard
Test Cycle
Settings
Flue Draught Pa (ins WG)
Efficiency %
Recommended Output Rating kW
Mean Flue Gas Temp Rise ºC
Minimum room air entry requirement
Minimum Clearance to combustibles
NOx mg/m³
CO %
CxHy mg/m³
Gas flow g/sec
Smoke Emission mg/m³
I declare that this information is true, these products meet the requirements of Harmonised Standards and are fit for sale. Signed on
behalf of the manufacturer by Glyn Hughes, Design Engineer, at Winster, Derbyshire, England 28. Nov. 2017
Read these instructions! Use only Dry Wood Logs!
This document, when completed by the installer, constitutes part of a 'Hearth Notice' for purposes of Building
Law. It must be left with the householder and placed where it can easily be found.
INSTALLED AT LOCATION:
BY:
EMERGENCY CONTACT:
I definitively assert that this installation is safe, has been lit and demonstrated to the householder,
conforms with current building regulations and with these instructions
SIGNED:
PRODUCTION NUMBER
INSTALLATION AND OPERATING INSTRUCTIONS
Portway Panoramic
Wood logs (Beech) with standard
firebox
1.35kg over 0.75hr
70% open
12 (0.05)
74.4
6.9 kW
240 °C
4000 mm²
Sides 100mm, above 350mm
-
0.46
-
7.5
179
Wood logs (Beech) with reduced
firebox
EN 13229
0.88 kg over 0.75hr
50% open
12 (0.05)
80.5
4.9kW
190 °C
2700 mm²
Sides 100mm, above 350mm
-
0.25
-
5.0
20
DATE:
TO FIND A QUALIFIED INSTALLER, FUEL SUPPLIER or CHIMNEY
UK: The Solid Fuel Association, 7 Swanwick Court, Alfreton,
Derbyshire DE55 7AS Tel:0845-601-4406 www.solidfuel.co.uk
RoI: Irish Nationwide Fireplace Organisation, 162 Capel Street, Dublin
1 Tel:01-801-5959 www.fireplace.ie
This stove may be used in smoke control areas when operated
strictly in accordance with these instructions and with Soliftec
Smoke Advice Sheet No1 (www.soliftec.com/smokeadvice.htm),
UK: Untreated wood logs (Exempted from s20 of the Clean Air Act 1993)
RoI: Wood logs (Control of Atmospheric Pollution Regulations, 1970)
1
Solid Fuel Stoves Manual v4. Issued - 28/11/2017 (469)
