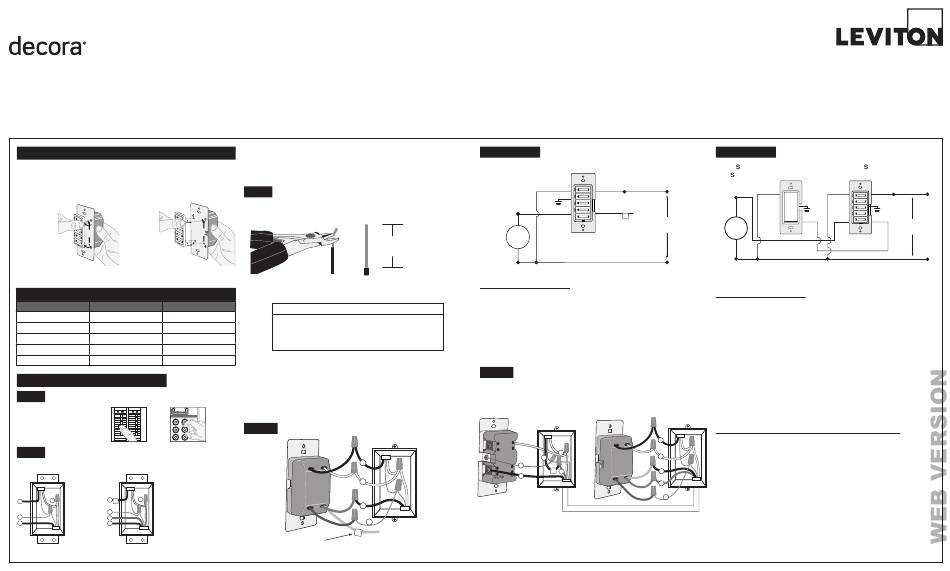

Leviton decora LTB15 Quick Start Manual

WARNINGS:
• TO AVOID FIRE SHOCK OR DEATH; TURN OFF POWER at circuit breaker or fuse and test that
power is OFF before wiring!
• To be installed and/or used in accordance with appropriate electrical codes and regulations.
• If you are unsure about any part of these instructions, consult an electrician.
• Leviton electronic countdown timer switches are not compatible with standard 3-way or 4-way
switches. They must be used with compatible Decora ®
• DO NOT use to control lighting if it is the only light source in the area.

TOOLS NEEDED TO INSTALL YOUR TIMER SWITCH

Slotted/Phillips Screwdriver Electrical Tape
Pencil Cutters

Changing the color of your device:

Your device may include color options. To change color of the face,
proceed as follows:
Line up tabs and
Push in side press in sides one
at tab to release at a time to attach
Color change kits available in White (W), Light Almond (T), Ivory (I),
Brown (B), Black (E), (LTBKT-00x)

MAXIMUM LOAD PER TIMER FOR MULTI-DEVICE INSTALLATIONS

Load Single Two or more devices
Resistive Load 20A (2400 W) 16A (1920 W)
Incandescent/Halogen 1800 W 1800 W
Inductive Load 20A
Motor Load 1 HP
LED/CFL load 600 W

INSTALLING YOUR TIMER SWITCH

WARNING:
TO AVOID FIRE SHOCK OR DEATH; TURN
Step 1
OFF POWER at circuit breaker or fuse and test that power is
off before wiring!

Identifying your wiring application (most common):

Step 2
NOTE: If the wiring in your wallbox does not resemble any of
these configurations, consult an electrician.
Single Pole
3-Way
1. Line (Hot)
1. Line or Load (see
2. Neutral
IMPORTANT instruction)
2
2 3. Ground 1 2. Neutral
1
4. Load
3. Ground
3
4. First Traveler – note color
3
4
4 5 5. Second Traveler – note
color.
NOTE: For Wired Switch Companions (with
LED) the First Traveler becomes Line Hot.
Single Pole (One Location) or 3-Way (Multi Location)
Cat. No. LTB15, LTB30, LTB60, LTB02, LTB04, LTB12 Lighted
20A Resistive/Inductive, 1,800 W Incandescent/Halogen, 600 W LED/CFL, 1 HP
CAUTIONS:
• Disconnect power at circuit breaker or fuse when servicing, installing or removing fixture.
• Use only one (1) Leviton electronic countdown timer switch in a multi-location circuit with up to 9 Wired Switch Companions (VP0SR-10) or up to 4 Wired Switch Companions (VP0SR-1L).
• Maximum wire length from Timer Switch to all installed Wired Switch Companions cannot exceed 300 ft (90 m).
• Use this device only with copper or copper-clad wire only.
• Recommended minimum wallbox depth is 2-1/2 in.
Wired Switch Companion (VP0SR).
• To avoid damage to the product, DO NOT use disinfecting products, including foggers, sprays or other types of atomized cleaning agents. DO NOT spray liquid onto the product.
To clean use a damp cloth with mild soap.
IMPORTANT: For 3-way applications, note that one of the screw terminals
from the old switch being removed will usually be a different color (Black)
or labeled Common. Tag that wire with electrical tape and identify as
Pliers
the common (Line or Load) in both the switch wallbox and Wired Switch
Ruler
Companion wallbox.

Preparing and connecting wires:

Step 3
Pull off pre-cut insulation from timer switch leads. Make sure
that the ends of the wires from the wallbox are straight (cut if
necessary). Remove insulation from each wire in the wallbox as
shown:
Cut
(if necessary)
For non-standard wiring applications, refer to

Wire Nut and Connector Size Chart

WIRE CONNECTOR / # OF COND. COMBINATION CHART
1 - #12 w/ 1 to 3 #14, #16 or #18
2 - #12 w/ 1 to 2 #16 or #18
1 - #14 w/ 1 to 4 #16 or #18
16A
2 - #14 w/ 1 to 3 #16 or #18
1 HP
600 W
• Make sure that the ends of the wires from the wallbox are
straight (cut if necessary).
• Remove insulation from each wire in the wallbox as shown.
• For single pole application, go to Step 4a.
• For 3-way Wired Switch Companion (without LED) application, go to Step 4b.
• For 3-Way Wired Switch Companion (with LED) application, go to Step 4c.

Single pole wiring application:

Step 4a
Black
1
White
2
4
Red
3
Green
Insulating label:
This wire is used in 3-way installations only.
For single pole installations, do not remove this insulating label.
Electronic Countdown Timer Switch
120 VAC, 60 Hz
Step 4a cont'd
White
Green
Ground
Red
Black
Strip Gage Load
5/8 in.
(measure bare
(1.6 cm)
wire here)
White

WIRING TIMER SWITCH:

Connect wires per WIRING DIAGRAM as follows:
• Green or bare copper wire in wallbox to Green lead.
• Line Hot wallbox wire to Black lead.
• Load wallbox wire to Red lead.
• Line Neutral wallbox wire to White lead.
• Timer Switch Yellow/Red lead should have Red insulation label affixed.
• Proceed to Step 5.
3-way wiring with Wired Switch Companion
Step 4b
(VP0SR-10) application:
Wired Switch Companion
(VP0SR-10)
WH
BK
1
3
5
BK - Black
WH - White
YL/RD - Yellow/Red
RD - Red
Yellow/Red
Step 4b cont'd
Timer Switch
Wired witch Companion
(VP0 R-10)
Black Hot (Black)
Black
Yellow/Red
Line
Insulating
Label Load
120 VAC, 60Hz
White
BK - Black
Neutral (White)
WH - White
YL/RD - Yellow/Red
RD - Red
WIRING TIMER SWITCH:
Connect wires per WIRING DIAGRAM as follows:
NOTE: The timer switch must be installed in a wallbox that has a Line
Hot connection.
NOTE: Maximum wire length from timer switch to all installed Wired
Switch Companion devices cannot exceed 300 ft (90 m).
• Green or bare copper wire in wallbox to Green lead.
• Line Hot (common) wallbox wire identified (tagged) when removing old
switch to Black lead.
• First Traveler wallbox wire to Red lead (note wire color).
• Remove Red insulating label from Yellow/Red lead.
• Second Traveler wallbox wire to Yellow/Red lead (note wire color).
This traveler from the timer switch must go to the terminal screw on the
Timer Switch
Wired Switch Companion marked "YL/RD."
• Line Neutral wallbox wire to White lead.
WIRING WIRED SWITCH COMPANION (VP0SR-10):
Black
Connect wires per WIRING DIAGRAM as follows:
1
NOTE: "BK" and "RD" terminals on Wired Switch Companion
2
(VP0SR-10) are unused. Tighten both screws.
White
2
NOTE: Maximum wire length from timer switch to last Wired Switch
Yellow/
Red 5 Companion is 300 ft (90 m).
4
• Green or bare copper wire in wallbox to Green terminal screw.
Red 4
• Load wallbox wire identified (tagged) when removing old switch to First
Green
3 Traveler (note color as above).
• Second Traveler wallbox wire (note color as above) to terminal screw
marked "YL/RD." This traveler from the Wired Switch Companion must
go to the Yellow/Red lead of the timer switch.
• Remove White insulating label from terminal screw marked "WH."
• Line Neutral wallbox wire to terminal screw marked "WH."
• Proceed to Step 5.
PK-93796-10-00-2C
Timer witch
WH BK Hot (Black)
WH BK
(unused)
Green Green
Ground Ground
RD YL/RD
RD YL/RD
Line
(unused)
120VAC, 60Hz
Neutral (White)
